Radxa ROCK Pi S Single-Board Computer (SBC) Raspberry Pi Alternative Rockchip RK3308B ( D2/D4 256MB/512MB RAM) Small in size, full in features

Rs. 1,999.00 Rs. 1,840.00 SAVE 8%

Including GST (No Hidden Charges)

RAM: D2

D2
D4

STORAGE: 256MB

256MB
512MB
Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE02592
Availability : In Stock Pre order Out of stock
Categories: Radxa
Description

The Radxa ROCK Pi S is a small but powerful single-board computer designed to meet the needs of embedded systems and IoT applications. This SBC is built around the Rockchip RK3308B processor, a 64-bit quad-core ARM Cortex-A35 chip, which provides a solid balance between power efficiency and processing capabilities. The board itself is incredibly compact, measuring only 1.7 x 1.7 inches, making it ideal for environments where space is at a premium, yet reliable performance and connectivity are required.

In terms of connectivity, the ROCK Pi S offers a 100MB Ethernet port for wired network access, ensuring stable and fast network connections. Additionally, it supports Wi-Fi, allowing for wireless communication, which is critical for modern IoT applications. The board also includes a USB 2.0 port, providing the flexibility to connect peripherals like storage devices or sensors, expanding its utility for various embedded applications.

Feature:-

  • Processor: Rockchip RK3308B, Quad-Core Cortex-A35.

  • RAM: 256MB or 512MB.

  • Size: Ultra-small form factor, ideal for embedded and space-constrained projects.

  • Connectivity: Wi-Fi, USB ports, and GPIO pins for peripherals.

  • Storage: microSD card support.

  • Use Cases: IoT, home automation, edge computing, and embedded systems.

  • Software: Supports Linux distributions like Debian and Ubuntu.

DATA SHEET:- CLICK HERE

Interface

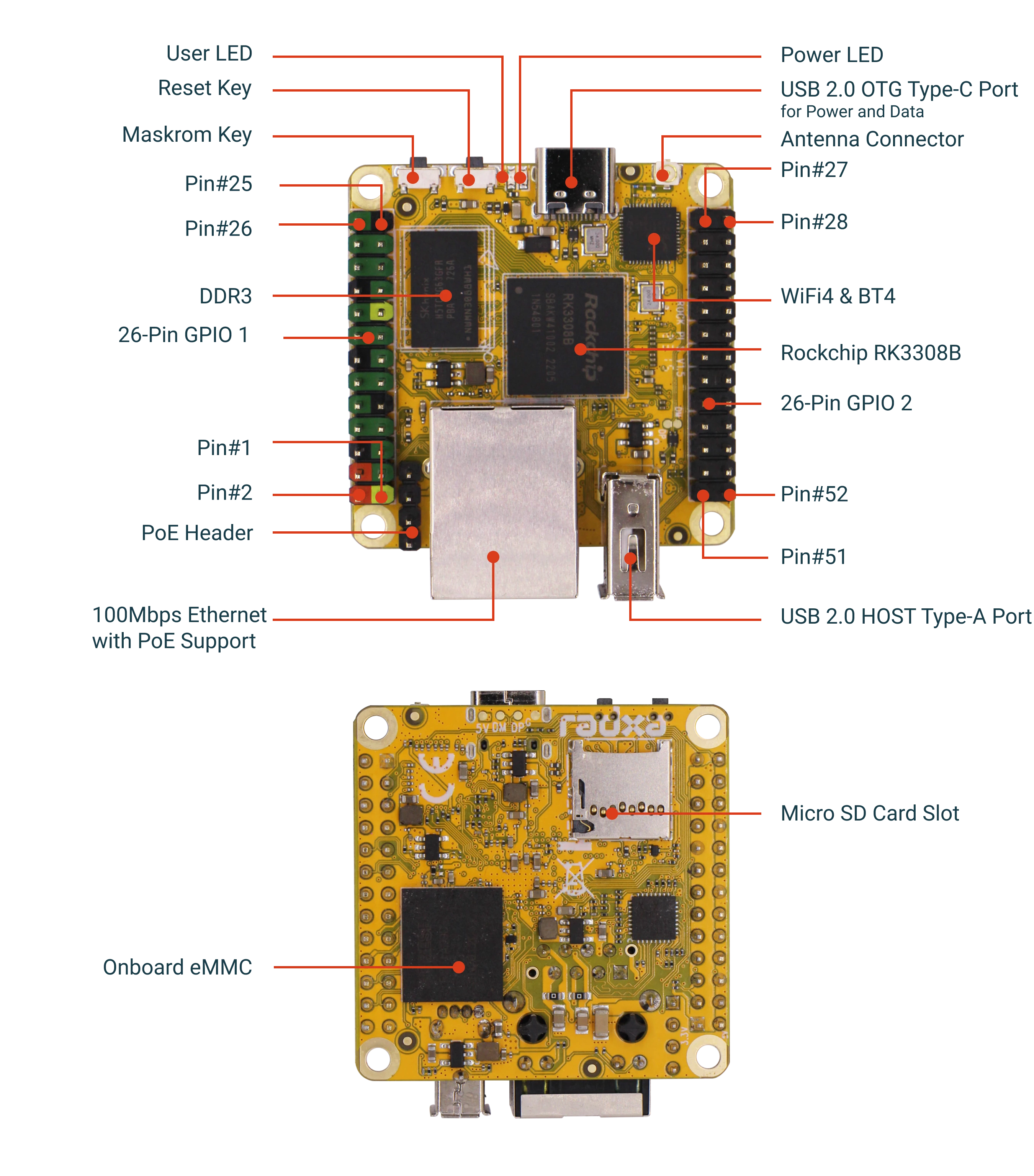

Interfaces

Specification:-

Category Specification
SoC Rockchip RK3308B
CPU Quad-core Arm® Cortex®-A35 64-bit @ 1.0 GHz
RAM 256MB / 512MB DDR3 RAM
Storage Optional 0GB / 4GB / 8GB onboard eMMC
Micro SD Card Slot
Wireless IEEE 802.11b/g/n (WiFi4), with external antenna support
Bluetooth 4.0 with BLE (Bluetooth Low Energy)
Ethernet 1x 100M Ethernet with PoE support (Additional PoE HAT required)
USB 1x USB2.0 HOST Type-A Port
1x USB2.0 OTG Type-C Port for power and data
Operating Conditions Recommended environmental temperature: 0°C to 50°C
Temperature limit: 80°C (throttles clock speeds above this limit)
External cooling methods (heat sinks or fans) recommended for high-performance use
Software Supports Debian / Linux
Dimensions 1.7 x 1.7 inches (43 x 43 mm)



Package Include:-

1xRadxa ROCK Pi S Single-Board Computer (SBC) Raspberry Pi Alternative Rockchip RK3308B ( D1/D2 256MB/512MB RAM) Small in size, full in features







Additional Information
RAM

D2, D4
STORAGE

256MB, 512MB
