Stepper Motors

You can get NEMA series stepper motor in various configurations and its corresponding accessories. It is a brushless DC motor, so the life of this motor is dependent upon the life of the bearings. The position control is achieved by a simple Open Loop control mechanism so it doesn’t require complex electronic control circuitry.

The stepper motors move in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control. Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver.

Sort by:
5.5 kg-cm NEMA 17 stepper motor 4 wire bipolar for CNC / 3d printer / Robotics

NEMA 17 JK42HS48-1684-08 5.5 kg-cm stepper motor 4 wire bipolar for CNC / 3d printer / Robotics

Rs. 850.00
Nema 17 is the motor of choice for RepRaps/3D printers/ Desktop CNC Routers. It is also a suitable motor for various robotics applications. This motor is the most preferred motor...
4.2 kg-cm NEMA 17 stepper motor 4 wire bipolar for CNC / 3d printer / Robotics

NEMA 17 42HS40-1704 4.2 kg-cm stepper motor 4 wire bipolar for CNC / 3d printer / Robotics

Rs. 599.00
Nema 17 is the motor of choice for RepRaps/3D printers/ Desktop CNC Routers. It is also a suitable motor for various robotics applications. This motor is the most preferred motor...
Stepper Motor NEMA 23 7.2 kg-cm Hybrid Unipolar Dual Shaft

NEMA 23 JK57HS51-1006B 7.2 kg-cm Stepper Motor Hybrid Unipolar Dual Shaft

Rs. 1,475.00
Description: NEMA 23 JK57HS51-1006B 7.2 kg-cm Stepper Motor Hybrid Unipolar Dual Shaft Resource: Datasheet Specifications -Rated Voltage (V) - 6.6Current/ phase (A) - 1Resistance/ phase (ohms) - 6.6Inductance/ phase (mH)...
Stepper Motor NEMA 23 28 kg-cm Hybrid Bipolar

NEMA23 JK57HS112-3004-03 28 kg-cm Stepper Motor Hybrid Bipolar

Rs. 2,999.00
Description:- NEMA23 JK57HS112-3004-03 28 kg-cm Stepper Motor Hybrid Bipolar Resource: Datasheet Specifications - Phase - 2 phase Bipolar. Step Angle - 1.8 deg. Voltage - 4.8V. Current - 3 A....
Stepper Motor NEMA 23 18.9 kg-cm Bipolar Hybrid

NEMA 23 JK57HS76-2804 18.9 kg-cm Stepper Motor Bipolar Hybrid

Rs. 2,250.00
Description:- NEMA 23 JK57HS76-2804 18.9 kg-cm Stepper Motor Bipolar Hybrid Resource: Datasheet Specifications:- Rated Voltage (V) - 3.2 Current/ phase (A) - 2.8 Resistance/ phase (ohms) - 1.13 Inductance/ phase...

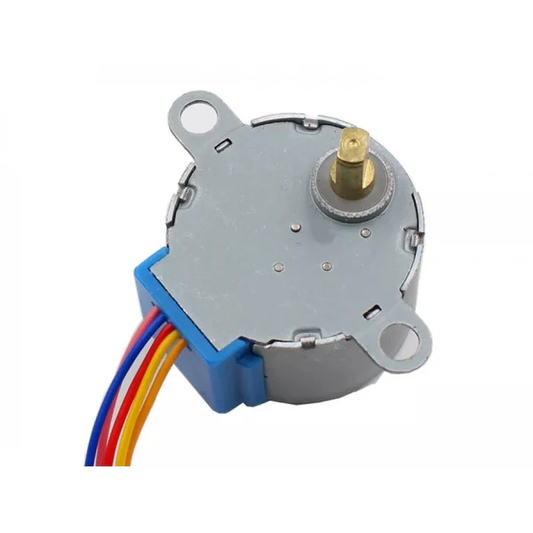

5V Stepper Motor 28BYJ-48 With Drive Test Module Board ULN2003 5 Line 4 Phase

5V Stepper Motor 28BYJ-48 With Drive Test Module Board ULN2003 5 Line 4 Phase

Rs. 145.00
A stepper motor is an electromechanical device which converts electrical pulses into discrete mechanical movements. The shaft or spindle of a stepper motor rotates in discrete step increments when electrical...
Stepper Motor NEMA 23 23 kg-cm Hybrid Bipolar

NEMA23 JK57HS100-3504 23 kg-cm Stepper Motor Hybrid Bipolar

Rs. 2,799.00
Description:- NEMA23 JK57HS100-3504 23 kg-cm Stepper Motor Hybrid Bipolar Resource: Datasheet Specifications - Phase - 2 phase Bipolar. Step Angle - 1.8 deg. Voltage - 2.55 V. Current - 3.5...
NEMA34 6A 122 kg-cm Single Shaft 1.8 Degree Stepper Motor.

NEMA 34 JK86HS155-6004 122 kg-cm 6A Single Shaft 1.8 Degree Stepper Motor

Rs. 6,499.00
Description:- If you are building a large CNC Mill, CNC Lathe or a CNC Router, etc. then you are at the right place. This Bipolar NEMA34 122 kg-cm Hybrid Stepper...
Stepper Motor NEMA 34 46 kg-cm Hybrid Bipolar

NEMA34 JK86HS78-5504-01 46 kg-cm Stepper Motor Hybrid Bipolar

Rs. 4,299.00
Description:- NEMA34 JK86HS78-5504-01 46 kg-cm Stepper Motor Hybrid Bipolar Resource: Datasheet Specifications - Rated Voltage (V) - 4.2 Current/ phase (A) - 5.9A Inductance/ ph. mH - 7.3 Resistance/ phase...
Stepper Motor NEMA 34 34 kg-cm Hybrid Bipolar

NEMA34 JK86HS68-5904 34 kg-cm Stepper Motor Hybrid Bipolar

Rs. 3,899.00
Description: NEMA34 JK86HS68-5904 34 kg-cm Stepper Motor Hybrid Bipolar Resource: Datasheet Specifications:- Rated Voltage (V) - 1.7Current/ phase (A) - 5.9Inductance/ ph. mH - 1.7Resistance/ phase (ohms) - 0.28Holding Torque...
Stepper Motor NEMA 23 10.1 kg-cm Bipolar Hybrid

NEMA 23 JK57HS51-2804 10.1 kg-cm Stepper Motor Bipolar Hybrid

Rs. 1,475.00
Description:- NEMA 23 JK57HS51-2804 10.1 kg-cm Stepper Motor Bipolar Hybrid Resource: Datasheet Specifications - Rated Voltage (V) - 6.6 Current/ phase (A) - 1 Resistance/ phase (ohms) - 6.6 Inductance/...
NEMA 17 stepper motor 1.6 kg-cm 6 wire unipolar

NEMA 17 JK42HS34-0316 stepper motor 1.6 kg-cm 6 wire unipolar

Rs. 599.00
Description:- NEMA 17 stepper motor 1.6 kg-cm 6 wire unipolar Resource: Datasheet Specifications:- Step Angle – 1.8 deg Voltage/Phase – 4v Current/Phase – 0.95A Resistance/Phase – 4.2ohms Inductance/Phase – 2.5mH...
