METEK 12v 5a SMPS DC Switching Power Supply

Rs. 480.00 Rs. 430.00 SAVE 10%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE00767
Availability : In Stock Pre order Out of stock
Categories: Power Supply
Description

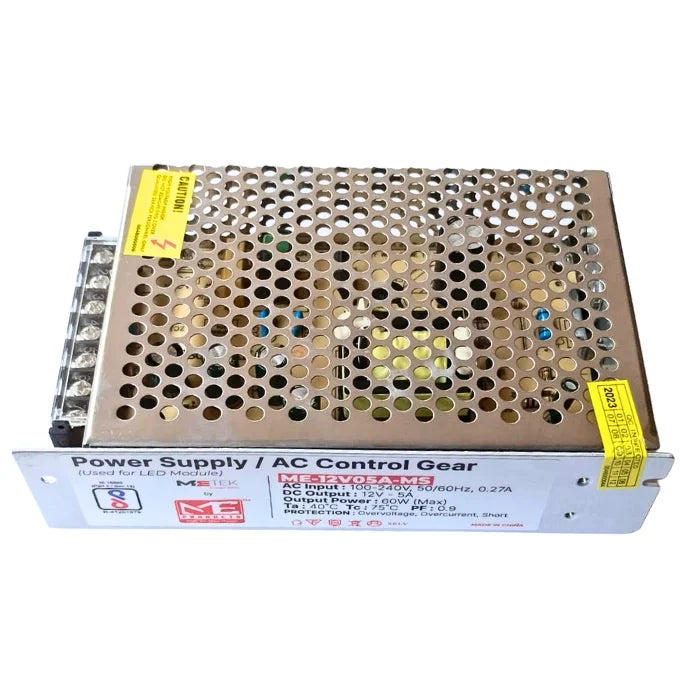

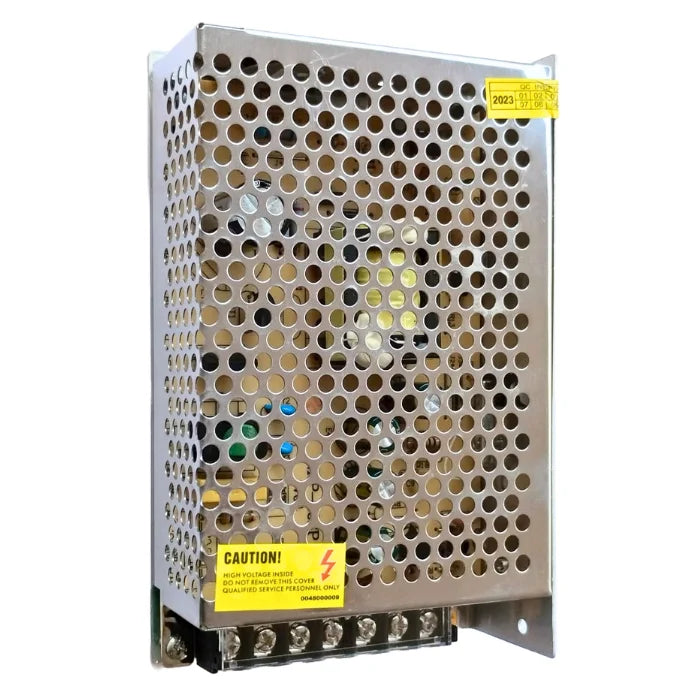

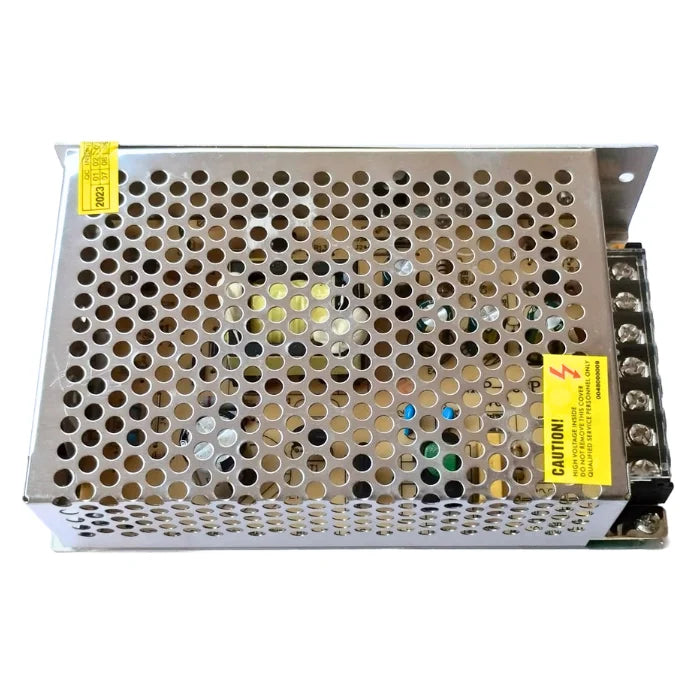

The METEK 12V 5A SMPS DC Switching Power Supply is a compact and efficient solution designed to convert AC voltage (100V-264V) into a stable 12V DC output. With a power output of 60W and a maximum current capacity of 5A, it is ideal for a range of applications that require 12V power. This power supply features overload, short-circuit, and overvoltage protection to ensure safe operation for your devices. It’s housed in a durable metal casing for improved heat dissipation and long-term reliability.

Short Features:

  • Wide Input Voltage Range: AC 100-264V, making it suitable for global use.
  • Stable 12V DC Output: Delivers a steady 12V DC at a maximum current of 5A.
  • High Efficiency: 85%-90% efficiency minimizes energy loss and keeps the unit cool.
  • Overload and Short-Circuit Protection: Protects both the power supply and connected devices.
  • Cooling Ventilation: Built-in design provisions to prevent overheating.

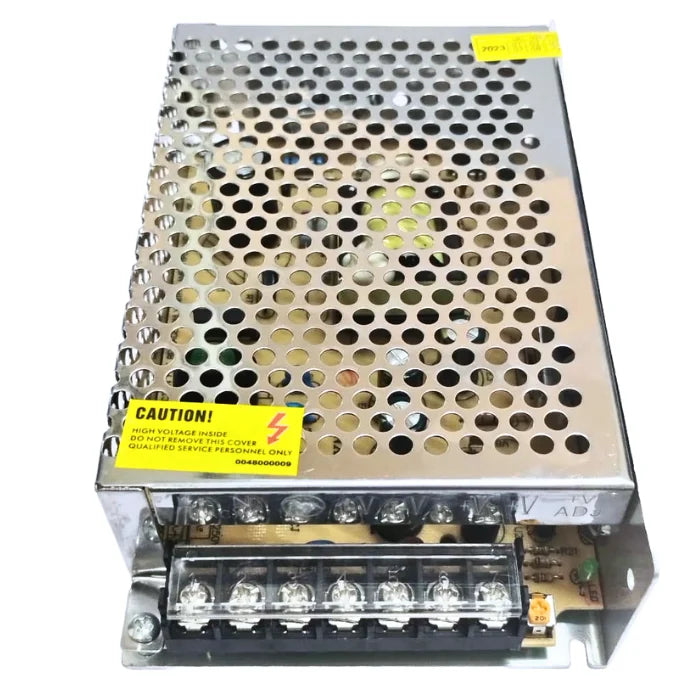

  • Screw Terminals for Easy Wiring: 9 screw terminals for secure connections.
  • Compact and Durable: Metal housing for long-lasting performance.

Short Applications:

  • LED Lighting: Powers 12V LED strips and panels for home, commercial, and decorative lighting.
  • CCTV Systems: Powers 12V cameras and surveillance systems.
  • Networking: Suitable for routers, modems, and wireless access points.
  • Automotive & Marine: Provides power for 12V devices in vehicles, boats, and other systems.
  • Electronics Projects: Ideal for DIY projects, robotics, and prototyping with 12V DC power.

Specifications:

Attribute Specification
Input Voltage AC 100-264V
Output Voltage 12V DC
Output Current 5A (Maximum)
Output Power 60W (12V x 5A = 60W)
Frequency 50/60Hz
Screw Terminal Number 9 terminals for easy wiring
Fix Screw Hole Diameter 2.5mm (0.1 inch)
Material Metal housing, Electronic parts
Main Color Silver Tone
Net Weight 720g
Cooling Method Passive cooling (ventilation)
Safety Protections Overload, Short-Circuit, Overvoltage Protection
Operating Temperature -10°C to 60°C (ambient temperature)
Dimensions Compact, space-saving design (dimensions vary by model)

Package Includes:

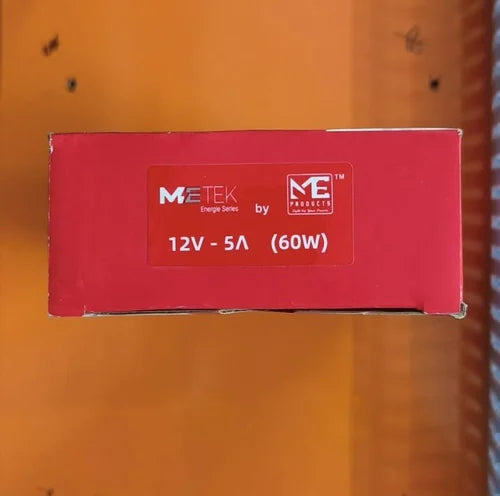

  • 1 x METEK 12V 5A SMPS DC Switching Power Supply
