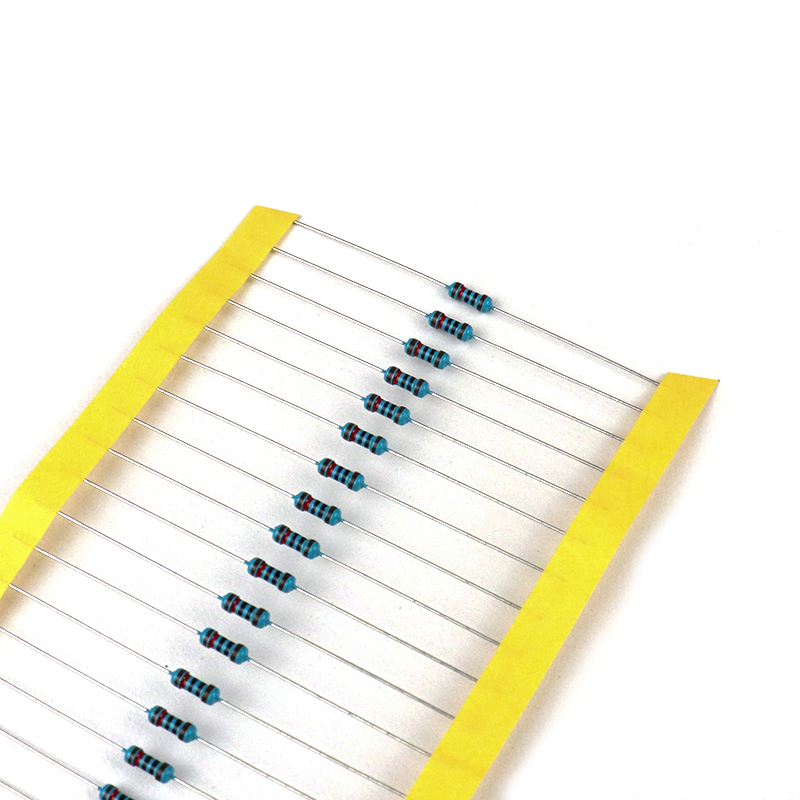

1k Ohm 1W Metal Film Resistor (Pack of 40)

Description: -

These are 1k Ohm 1 W Metal Film Resistor (Pack of 40) for through-hole applications. These WMF series Metal Film Resistors are manufactured using the latest Magnetron Vacuum Sputtering System. These resistors are insulated with layers of lacquer ensuring a very stable resistive medium having a very low-temperature coefficient.

Please note: In case of any Customization, before ordering contact sales team on sales@bombayelectronics.in

Specification: -

• Resistance (Ω) : - 1k
• Tolerance(%): - 1
• Maximum Working Voltage (V) : - 500
• Maximum Overload Voltage (V) : -1000
• Temperature Co-efficient: - ?50 ppm/?C
• Operating Temperature Range (°C) : - –40 to 150
• Mounting Type : -Through Hole
• Length (mm) : -9
• Width (mm) : - 3.2
• Weight (g) : -12
• Shipment Weight: - 0.016 kg
• Shipment Dimensions: - 8 x 10 x 1 cm

Package Includes:

40 x 1k Ohm 1W Metal Film Resistor.
