Description

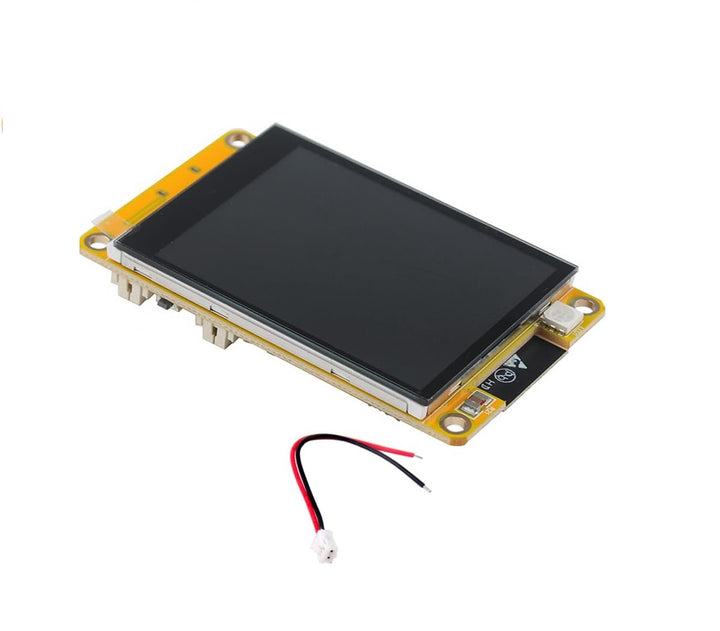

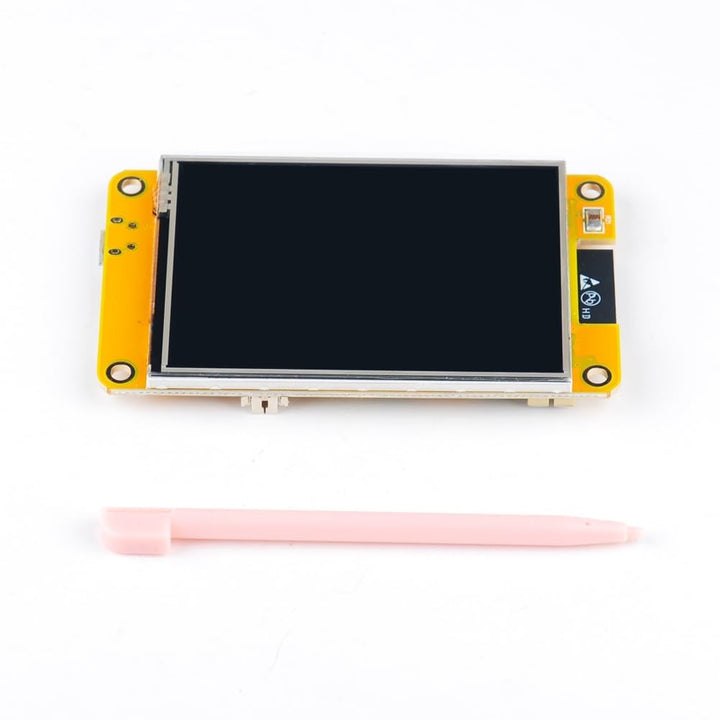

The ESP32-2432S024C is a powerful 2.4-inch TFT LCD capacitive touchscreen module designed with the ESP-WROOM-32 development board. Featuring a 240x320 resolution and ILI9341 display driver, this module integrates processing power with a responsive display, making it ideal for IoT projects, smart devices, and embedded systems.

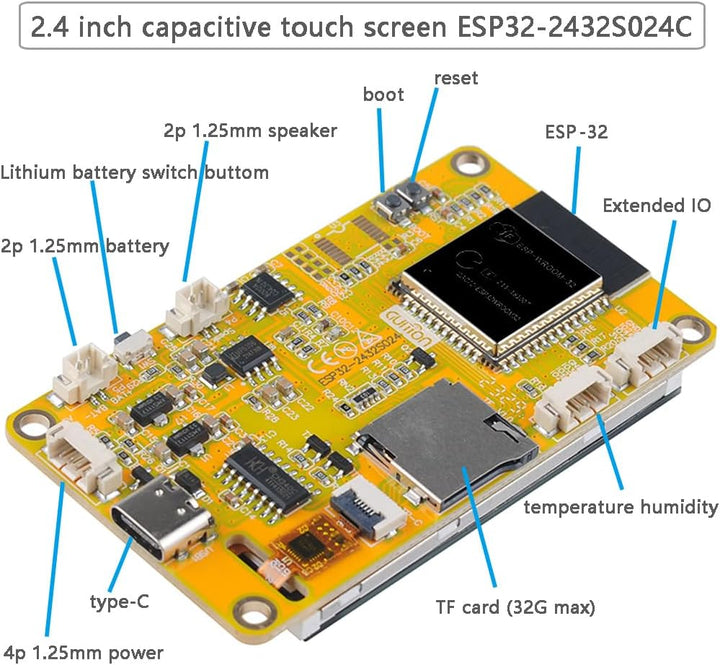

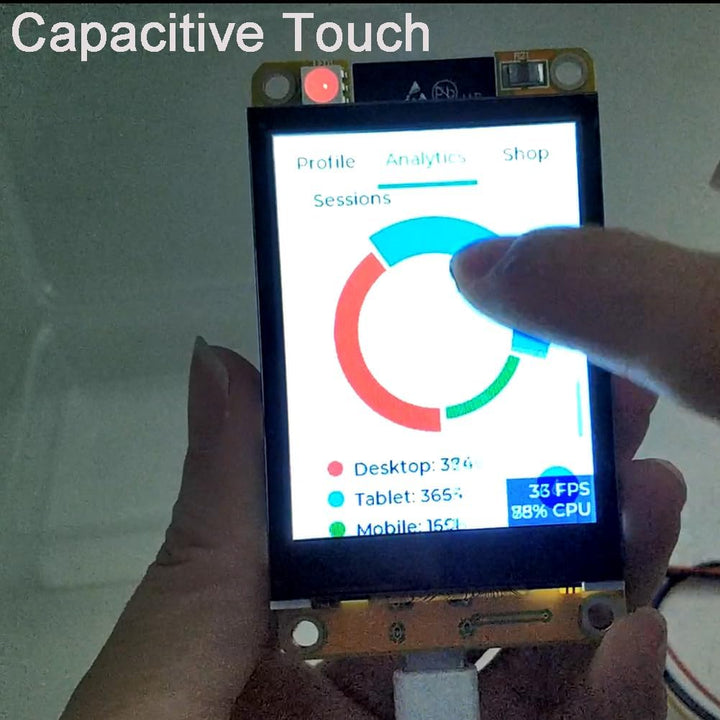

Unlike resistive touch panels, this module uses a capacitive touchscreen for smooth, accurate, and durable operation. It supports TF card storage (up to 32GB), allowing easy data logging and multimedia applications. Connectivity is enhanced with P3 and CN1 connectors (4-pin 1.25mm) for sensors like the DHT11 temperature & humidity sensor, while additional P4/P5 interfaces allow integration of speakers or batteries.

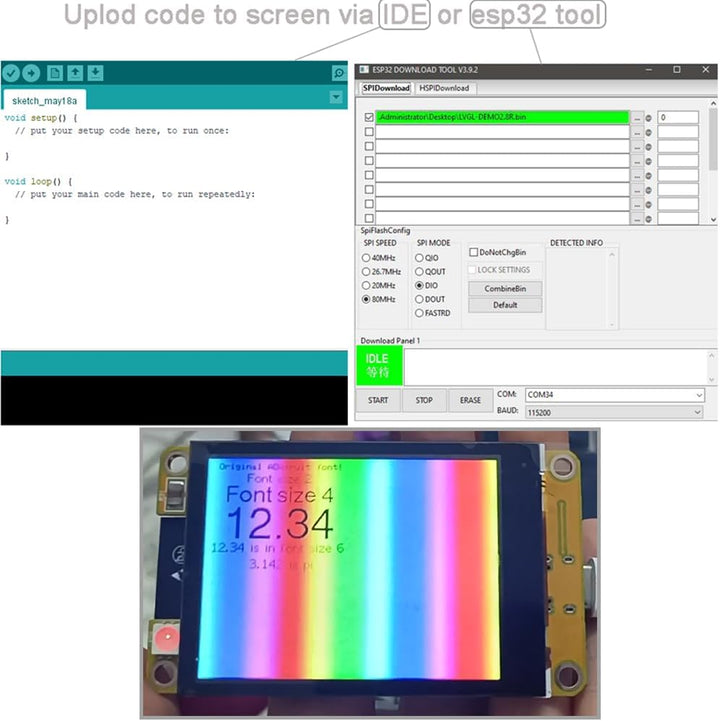

Compatible with Arduino IDE and the ESP32 flash tool, code can be uploaded effortlessly, providing developers, students, and hobbyists with a versatile all-in-one development and display solution.

Applications:

  • IoT and smart home projects

  • Handheld embedded systems

  • DIY electronics and prototyping

  • Sensor data visualization (DHT11, etc.)

  • Smart controllers and automation interfaces

Key Features:

  • Integrated ESP-WROOM-32 module with built-in Wi-Fi & Bluetooth

  • 2.4" TFT LCD capacitive touchscreen (240×320 resolution, ILI9341 driver)

  • Upload code via Arduino IDE or ESP32 Flash Tool

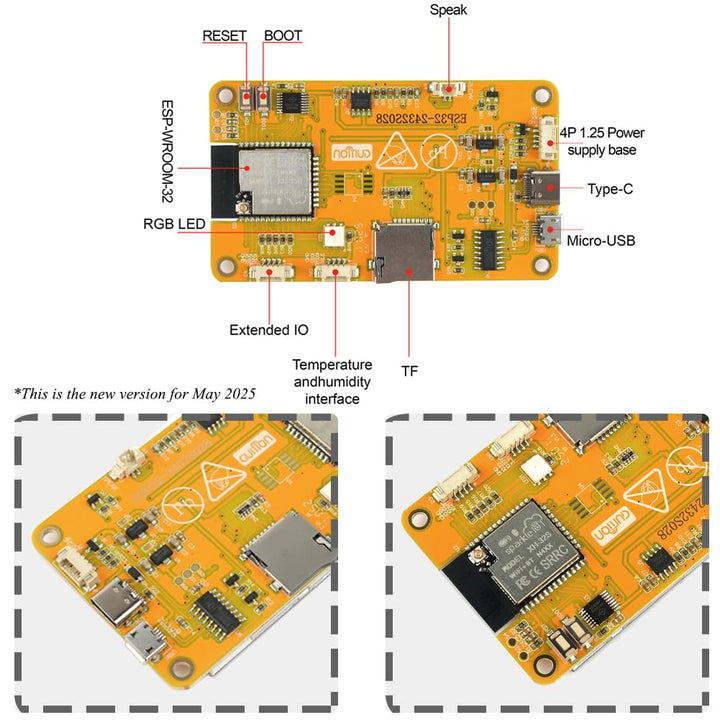

  • P3 connector (4-pin 1.25mm) supports DHT11 temperature & humidity sensor

  • CN1 4-pin IO connector for expansion

  • TF card slot (supports up to 32GB)

  • Additional interfaces: P4 (speaker) and P5 (battery)

  • Comes with Dupont female-to-1.25mm wire and 2-pin 1.25mm cable

Detailed Specifications:

Parameter Details
Model ESP32-2432S024C
Display Size 2.4 inch TFT LCD
Resolution 240 × 320 pixels
Touchscreen Type Capacitive (not resistive)
Driver IC ILI9341
MCU/Module ESP-WROOM-32 (ESP32)
Connectivity Wi-Fi & Bluetooth
TF Card Support ≤ 32GB
Expansion Ports P3 (DHT11), CN1 IO (4-pin 1.25mm), P4 (speaker), P5 (battery)
Upload Method Arduino IDE / ESP32 Flash Tool
Package Dimensions 12 × 8.2 × 3.2 cm (4.72 × 3.23 × 1.26 in)
Item Weight 89.87 g (3.17 oz)

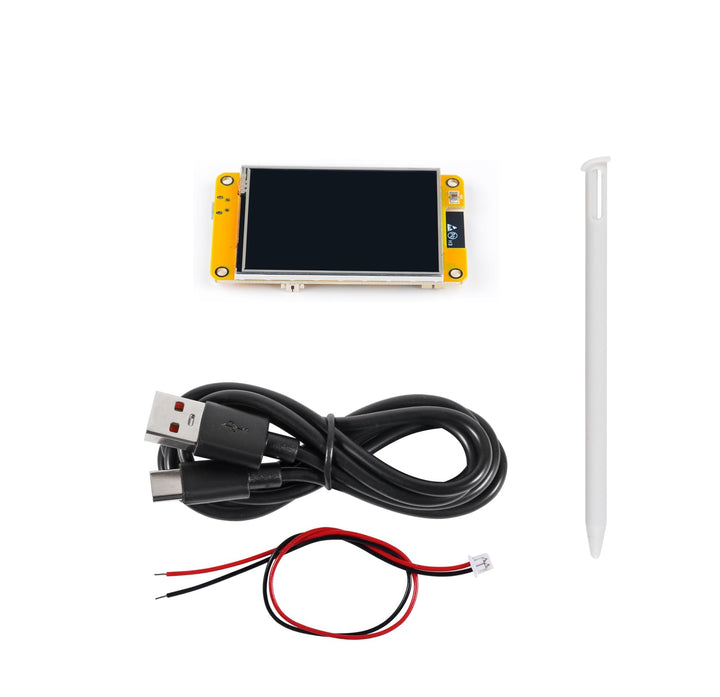

Package Includes:

  • 1 × ESP32 2.4" TFT LCD Display Module ESP32-2432S024C

  • 1 × Dupont female to 1.25mm wire
