7Semi EC200U LTE 4G GNSS Mini Industrial Modem USB-C, 26V Range
Including GST (No Hidden Charges)
Checkout securely with

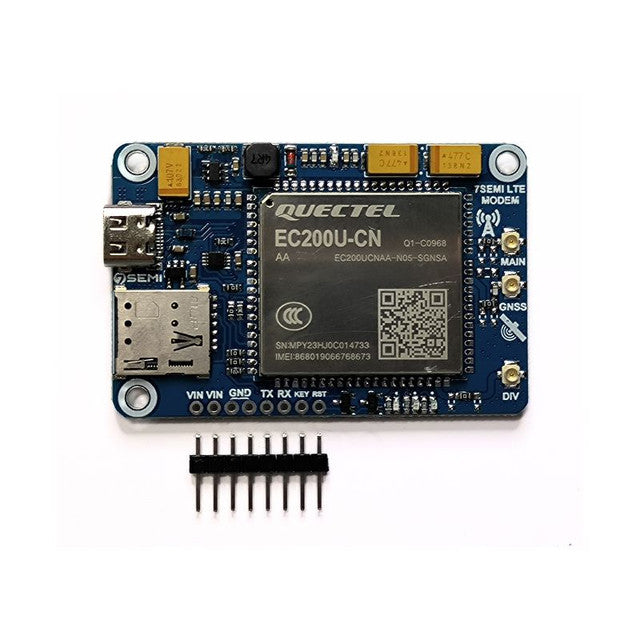

The 7Semi EC200U-CN LTE 4G GPS GNSS Mini Modem with USB-C is your ultimate solution for reliable wireless connectivity and accurate asset tracking. Powered by the robust Quectel EC200U-CN Cat 1 module, this compact and feature-rich modem supports both LTE (FDD/TDD) and GSM networks, ensuring wide compatibility across regions and reliable network performance in diverse environments.
This mini modem offers seamless USB and UART communication, supports 5V USB or external power, and is Nano SIM-compatible for plug-and-play mobile data access. Designed for industrial, IoT, and GPS tracking applications, the EC200U-CN delivers dependable performance whether used in transportation, logistics, automation, or remote telemetry systems.
The onboard GNSS system supports GPS, GLONASS, BeiDou, Galileo, and QZSS, allowing for highly precise location data. It also comes bundled with a high-gain 8dBi FPC antenna, featuring wide frequency support (700–2700 MHz) and easy mounting with 3M adhesive.
Whether you're integrating it into an industrial automation project or building a connected vehicle solution, the 7Semi Mini Modem ensures robust connectivity and global positioning in a compact footprint.

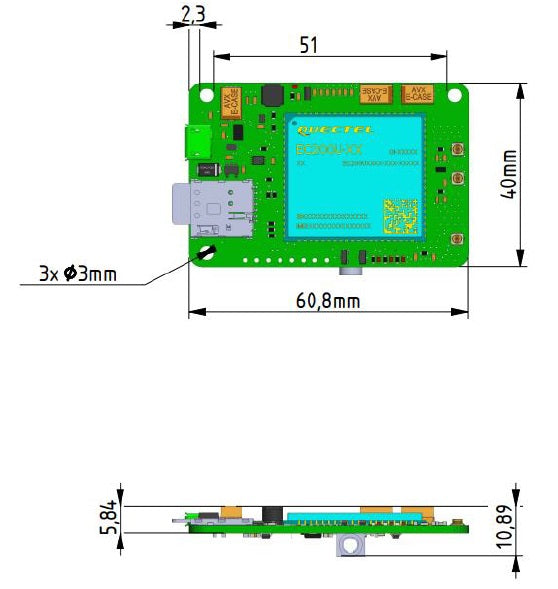

Board Dimensions
Application
-
Ideal for remote GPS tracking systems
-
Perfect for M2M communication and IoT applications
-
Used in fleet management, transportation, and asset monitoring
-
Reliable LTE/GSM modem for embedded systems
-
Compatible with BLE and LoRa/RF projects (via antenna)
Features (Bullet Points)
-
Supports LTE Cat 1, GSM, and GNSS networks
-
Integrated USB-C interface for power and data
-
GNSS with GPS, GLONASS, BeiDou, Galileo, and QZSS
-
Nano SIM slot for mobile connectivity
-
5V USB or external power supply support
-
High-performance FPC antenna included
-
Easy installation with 3M adhesive mount
Specifications
| Category | Specification |
|---|---|
| Modem Module | Quectel EC200U-CN (LTE Cat 1) |
| Power Supply | 5V via USB-C / 5V External |
| Network Support | LTE-FDD: B1/B3/B5/B8 LTE-TDD: B34/B38/B39/B40/B41 |
| GSM Bands | GSM 900 MHz / 1800 MHz |
| GNSS Support | GPS, GLONASS, BeiDou, Galileo, QZSS |
| SIM Type | Nano SIM |
| Communication | UART, USB |
| Antenna Type | FPC, 8dBi Gain |
| Antenna Frequency | 700 – 2700 MHz |
| Antenna Connector | IPEX (u.FL equivalent) |
| Antenna Size | 52 x 24 mm |
| Cable Type | 1.13 Coaxial Cable |
| VSWR | ≤1.8 |
| Input Impedance | 50 Ohm |
| Mounting Type | 3M Adhesive Backing |
| Power Handling | 30W |
Package Includes
-

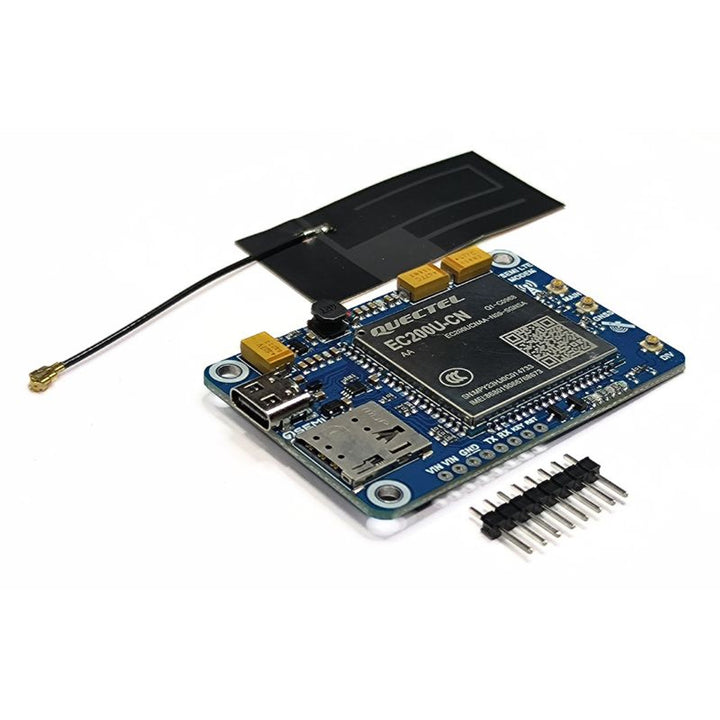

1 × 7Semi EC200U-CN LTE 4G GNSS Mini Modem with USB-C
-
1 × High-Gain FPC Antenna with IPEX Connector (700–2700 MHz)
