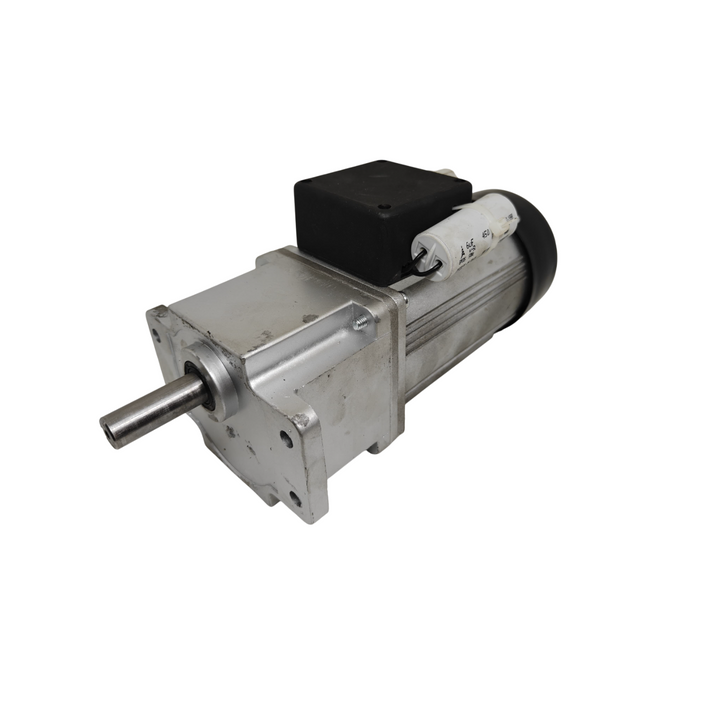

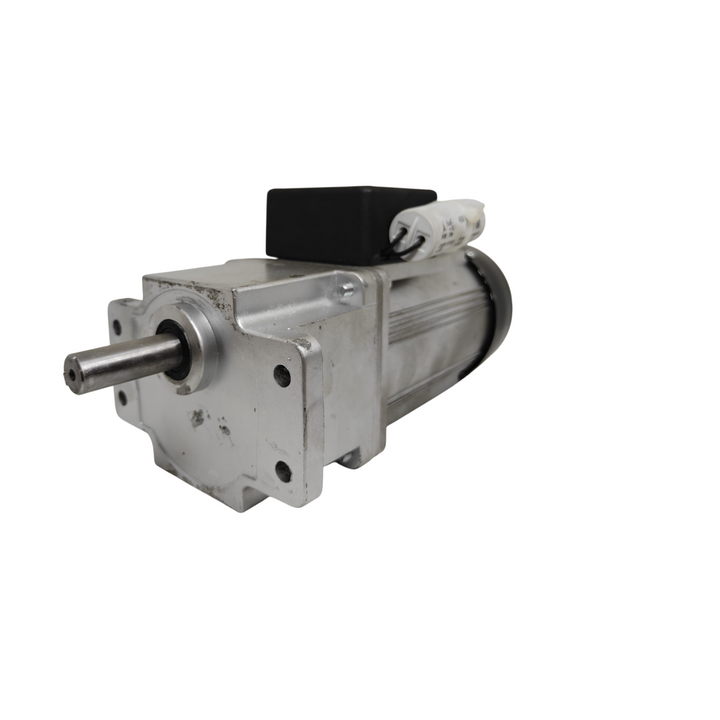

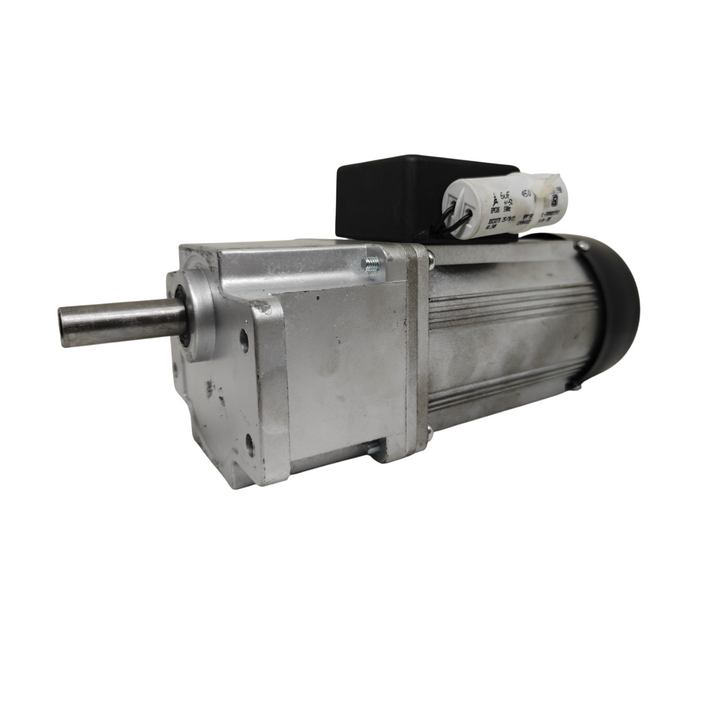

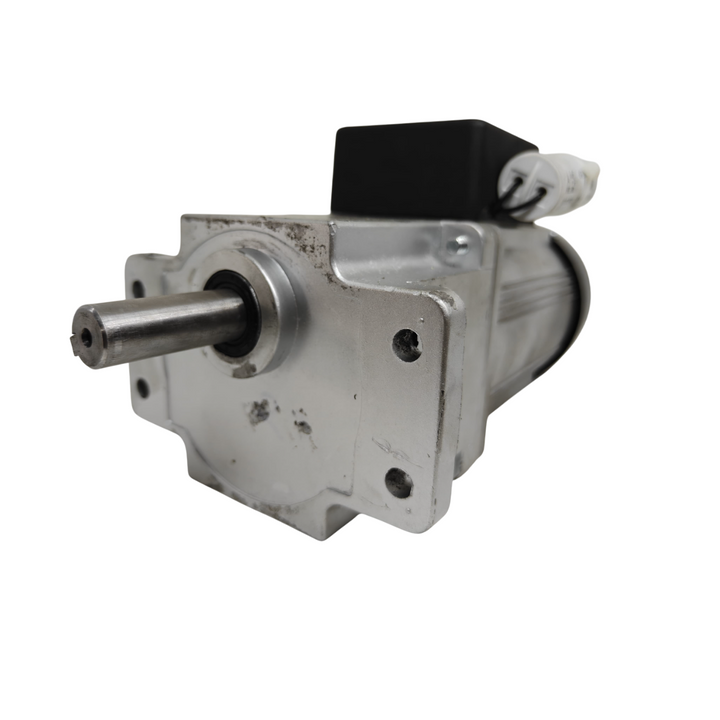

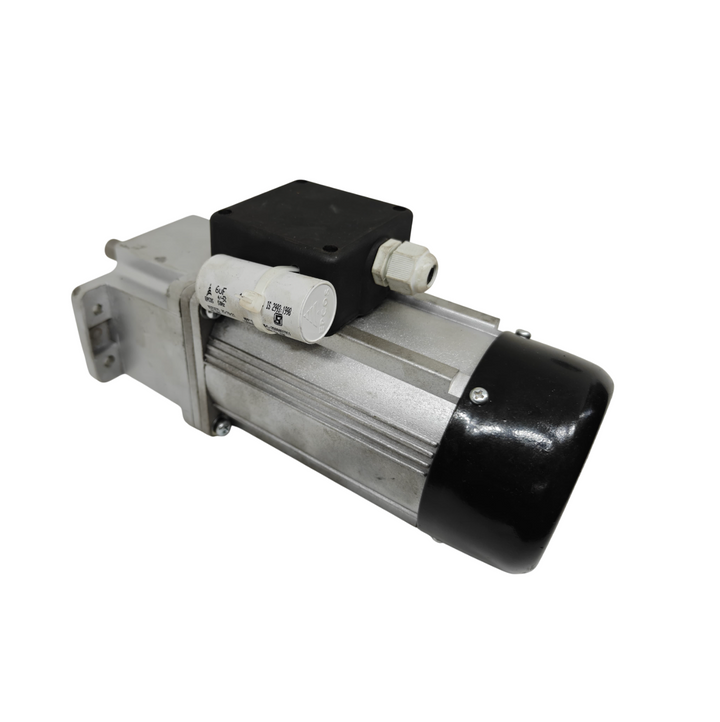

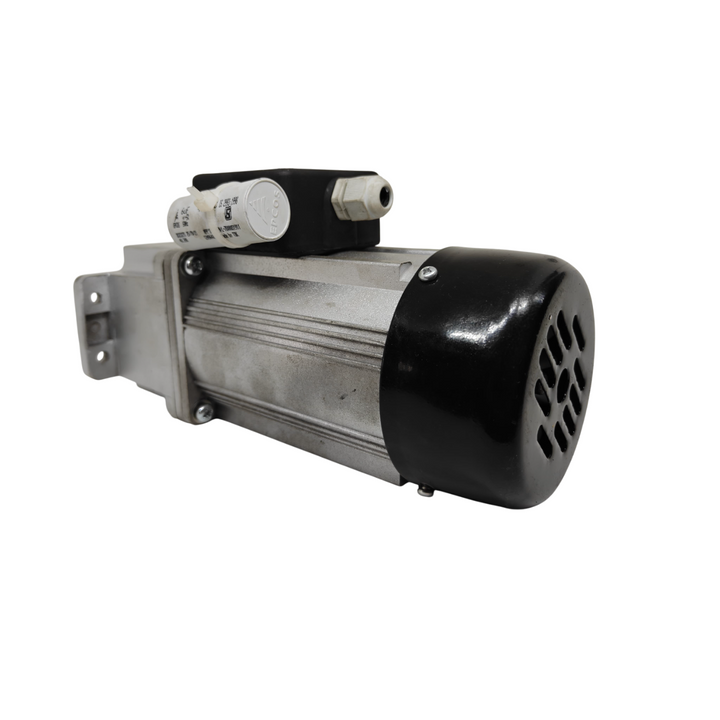

AC INLINE-93 HV 2 AC Motor 1 Phase and 3 Phase 1/4 HP Industrial Motor-RPM Range 10-20

Rs. 13,999.00 Rs. 11,979.00 SAVE 14%

Including GST (No Hidden Charges)

VOLATGE: 230V

230V
415V

RPM: 10

10
15
20
Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE186INLINE93HV2FLANGE230V10
Availability : In Stock Pre order Out of stock
Categories: AC Industrial Motors Geared Motors
Description

The AC INLINE-93 HV 2 Industrial Motor is a high-performance, compact AC motor designed for applications where low-speed, high-precision operation is essential. With a power output of 1/4 HP (0.0186 kW) and an operating speed range of 10 to 20 RPM, this motor delivers reliable, smooth performance in both single-phase and three-phase configurations, offering maximum versatility for various industrial and commercial uses.

Engineered for durability and efficiency, the INLINE-93 HV 2 features a robust housing constructed from high-grade aluminum or steel, providing excellent protection against wear, vibration, and harsh working environments. Its inline mounting design allows for easy integration into a wide variety of mechanical systems, particularly in space-constrained installations. This motor is especially suitable for automation equipment, precision conveyor systems, textile machines, packaging lines, and other applications where controlled, low-speed operation is a must.

Thanks to its energy-efficient design, the motor operates with minimal power consumption while maintaining stable torque output and dependable performance under continuous use. The motor’s air-cooled system ensures optimal thermal regulation, while built-in thermal overload protection safeguards the unit against overheating and electrical faults, helping reduce downtime and extend equipment life.

Application

  • Conveyor belt systems

  • Textile and weaving machines

  • Packaging and labeling machinery

  • HVAC dampers and actuators

  • Printing and laminating machines

  • Automated assembly lines

Features

  • Dual power compatibility with single-phase and three-phase supply

  • Low-speed precision with an RPM range of 10 to 20

  • Compact design ideal for space-limited installations

  • Energy-efficient motor rated at 0.124 kW

  • Quiet and low-vibration operation

NOTE - This product is manufactured in our factory only after receiving the order. It will take 3-5 days to dispatch.

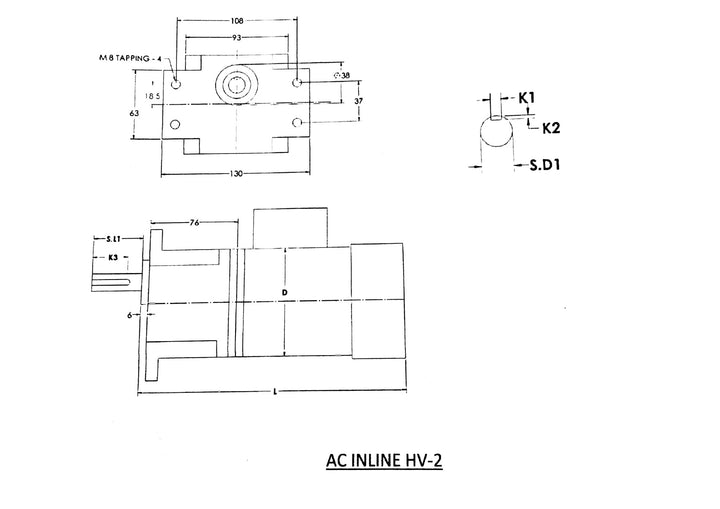

DATA SHEET:-

Specification:-

Specification Value
Horse Power (HP) 1/4 HP
Voltage Options

230V, 415V
RPM Options 10,15,20
No Load Current
Full Load Current
Rated Torque
Rated Speed 10 To 20 RPM (depending on voltage and load)
Efficiency [Typically 70% to 85%, check datasheet for exact value]
Stall Torque

6 kg/cm
Stall Current
L (Length) 256mm
D (Diameter) 80 mm
SD1 (Shaft Diameter) 15 mm
S.L1 (Shaft Length) 40 mm
K1 5
K2 2.5
K3 30
Insulation Class Class B / Class F (depending on manufacturer)
Ambient Temperature Range -20°C to 50°C

Package Include:-

1XAC INLINE-93 HV 2 AC Motor 1 Phase and 3 Phase 1/4 HP Industrial Motor-RPM Range 10-20

Additional Information
VOLATGE

230V, 415V
RPM

10, 15, 20
