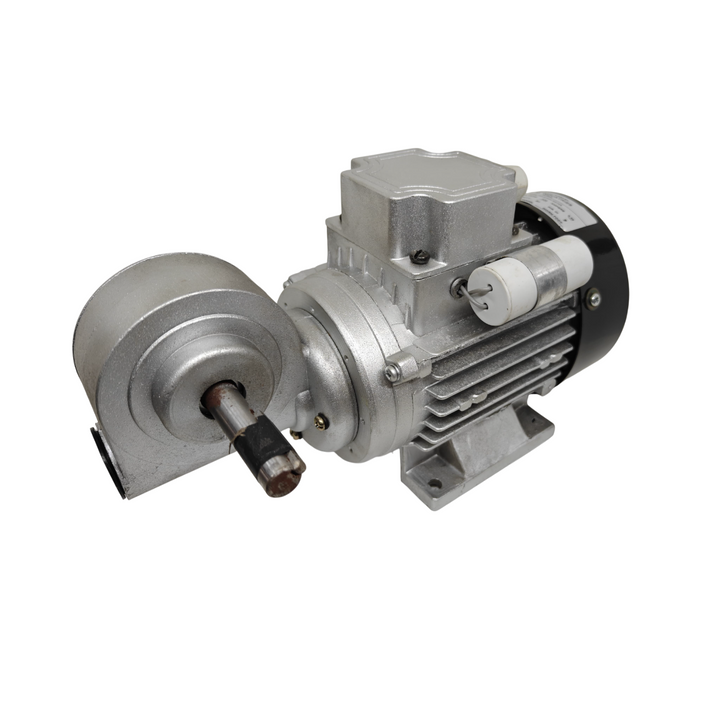

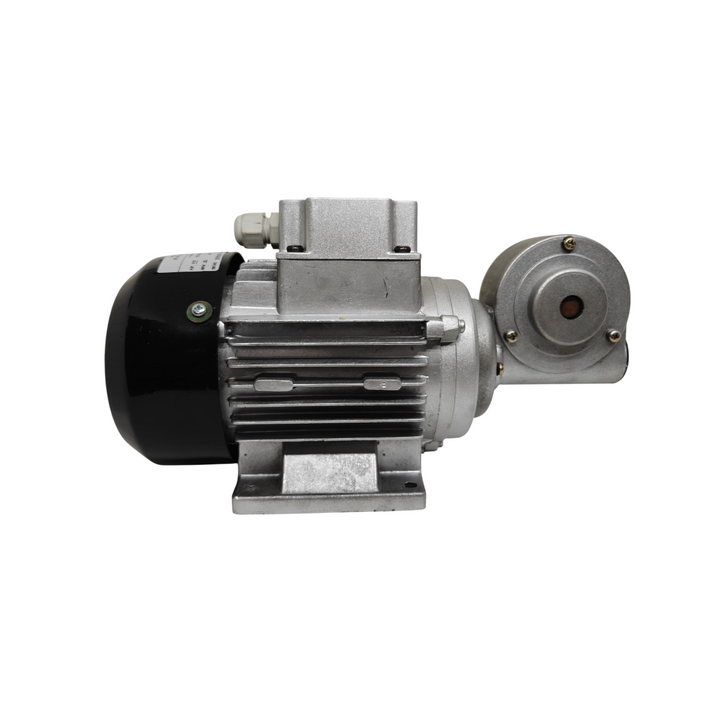

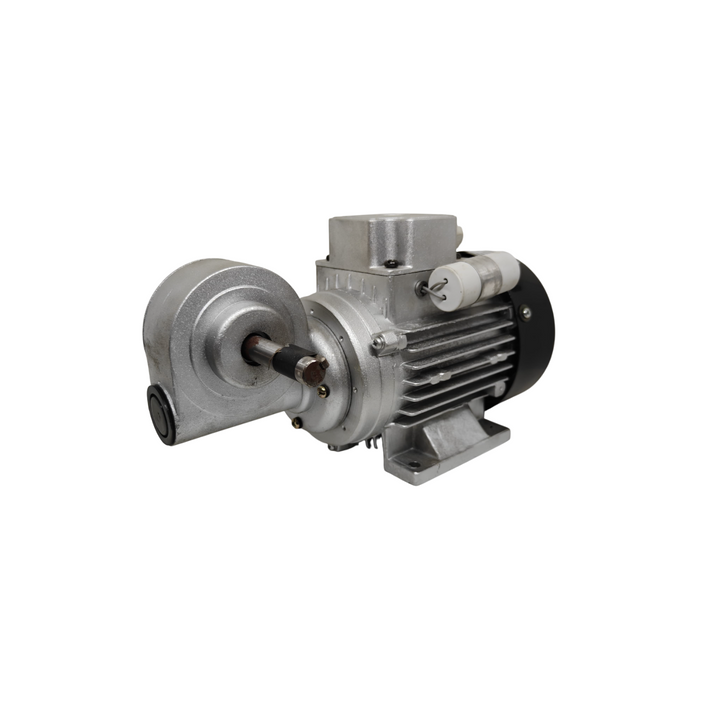

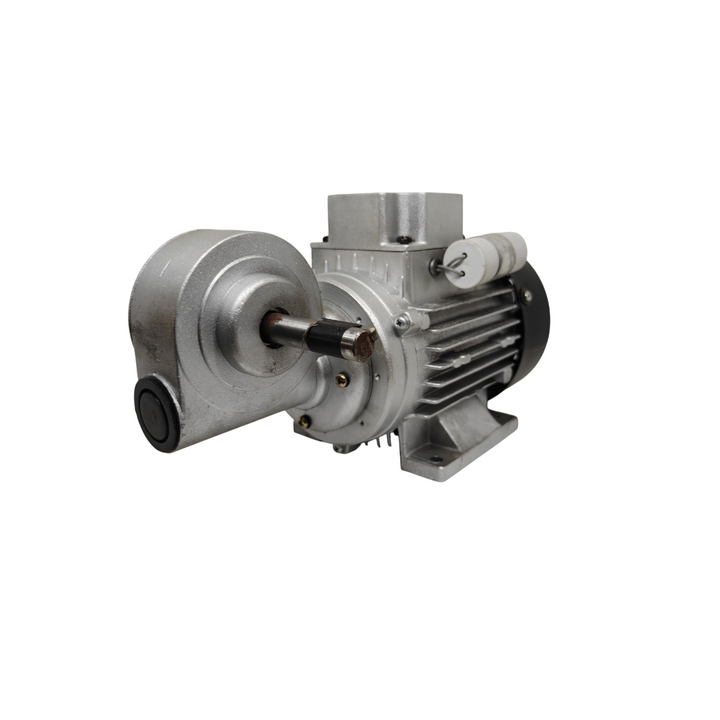

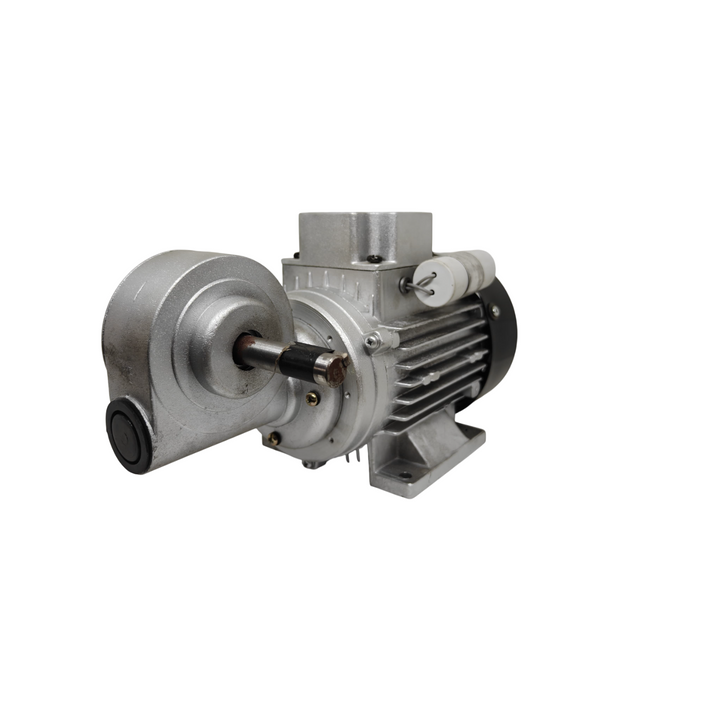

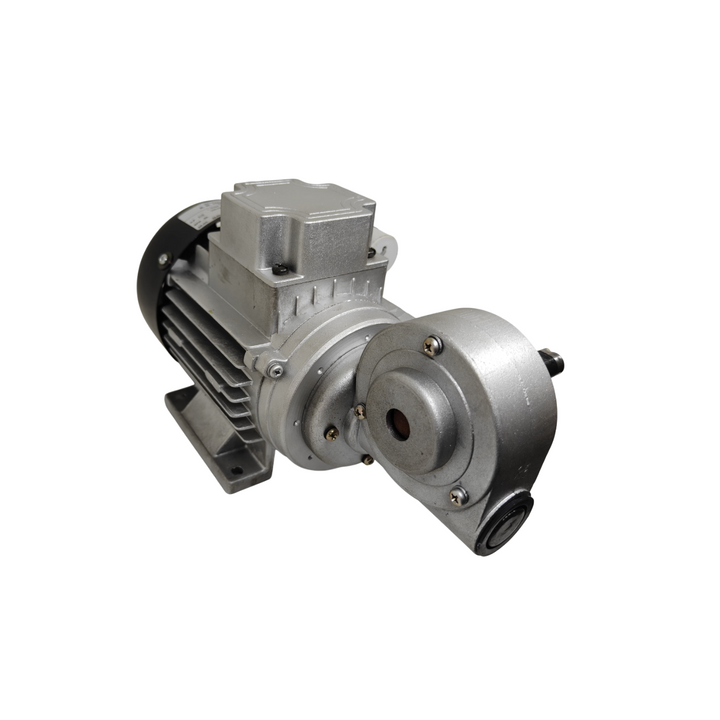

AC Worm FOOT Motor 1 Phase and 3 Phase 1/6 HP Industrial Motor-RPM Range 25-400
Including GST (No Hidden Charges)
Checkout securely with
The AC Worm Gear Foot Mount Motor is an industrial-grade geared motor designed for high-torque, low-speed applications across a wide range of machinery and automation setups. Engineered with a worm gear reducer, it offers a compact footprint while delivering smooth, efficient torque output within an RPM range of 25 to 400.
This motor is available in both Single Phase (230V) and Three Phase (415V) configurations, making it adaptable to various industrial power systems. With a rated output of 1/6 HP, it is ideal for continuous-duty applications such as conveyor drives, packaging machines, textile equipment, mixers, and lifting systems.
The foot-mounted base ensures quick installation and solid placement on flat machinery beds or frames. Built for durability, this motor features a sealed housing, thermal overload protection (if applicable), and high-quality winding insulation for dependable long-term performance.
Applications
• Industrial conveyor and drive systems
• Packaging and labeling machines
• Lifting platforms and hoists
• Food processing and textile equipment
• Mixing units, rotary actuators, and feeders
Features
• 1/6 HP motor for compact industrial motion needs
• Compatible with both 1 Phase (230V) & 3 Phase (415V) supplies
• Worm gear reduction offers high torque and low-speed control
• RPM adjustable from 25 to 400 based on load & input
• Heavy-duty foot mount for secure machine installation
• Quiet operation, minimal vibration, and thermal efficiency
• Designed for continuous-duty environments
NOTE - This product is manufactured in our factory only after receiving the order. It will take 3-5 days to dispatch.

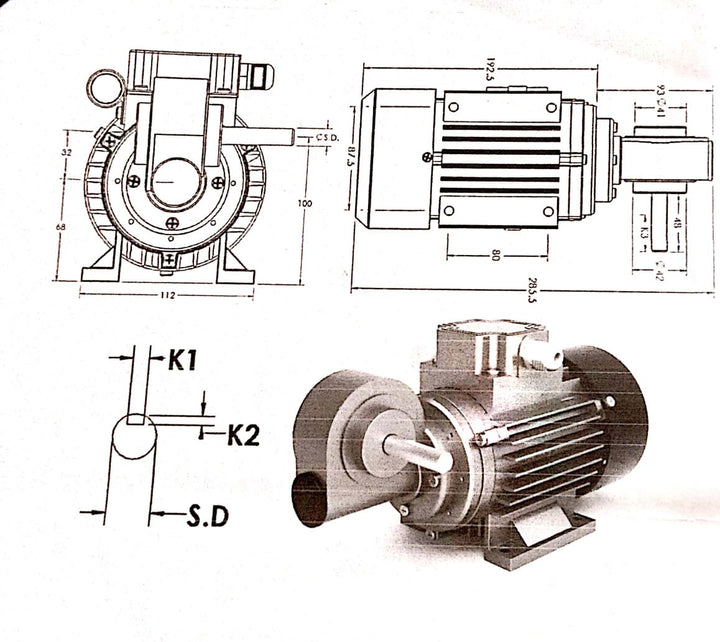

DATA SHEET:-
Specification:-
| Specification | Value |
|---|---|
| Horse Power (HP) | 1/6 HP |
| Voltage Options |
220-240V, 415V |
| RPM Options | 25,50,100,150,200,300,400 |
| No Load Current | |
| Full Load Current | |
| Rated Torque | |
| Rated Speed | 25 To 400 RPM (depending on voltage and load) |
| Efficiency | [Typically 70% to 85%, check datasheet for exact value] |
| Stall Torque |
4 kg/cm |
| Stall Current | |
| L (Length) | |
| D (Diameter) | |
| SD (Shaft Diameter) | 12, 15 |
| S.L1 (Shaft Length) | |
| K1 | 4,5 |
| K2 | 2,2.5 |
| K3 |
30 |
| Insulation Class | Class B / Class F (depending on manufacturer) |
| Ambient Temperature Range | -20°C to 50°C |
Package Include:-
1xAC Worm FOOT Motor 1 Phase and 3 Phase 1/6 HP Industrial Motor-RPM Range 25-400
| VOLTAGE |
220-240V, 415V |
|---|---|
| RPM |
25, 50, 100, 150, 200, 300, 400 |
