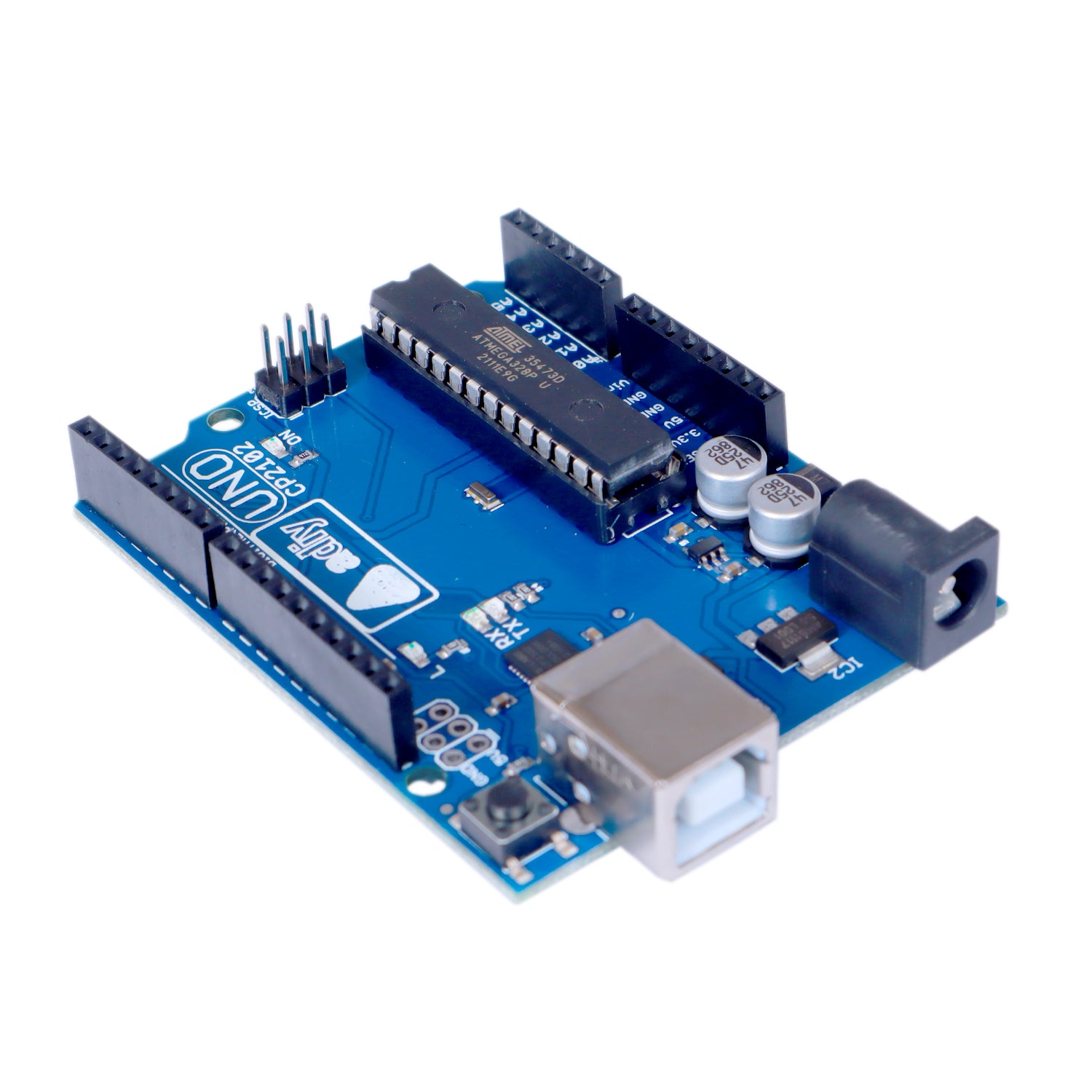

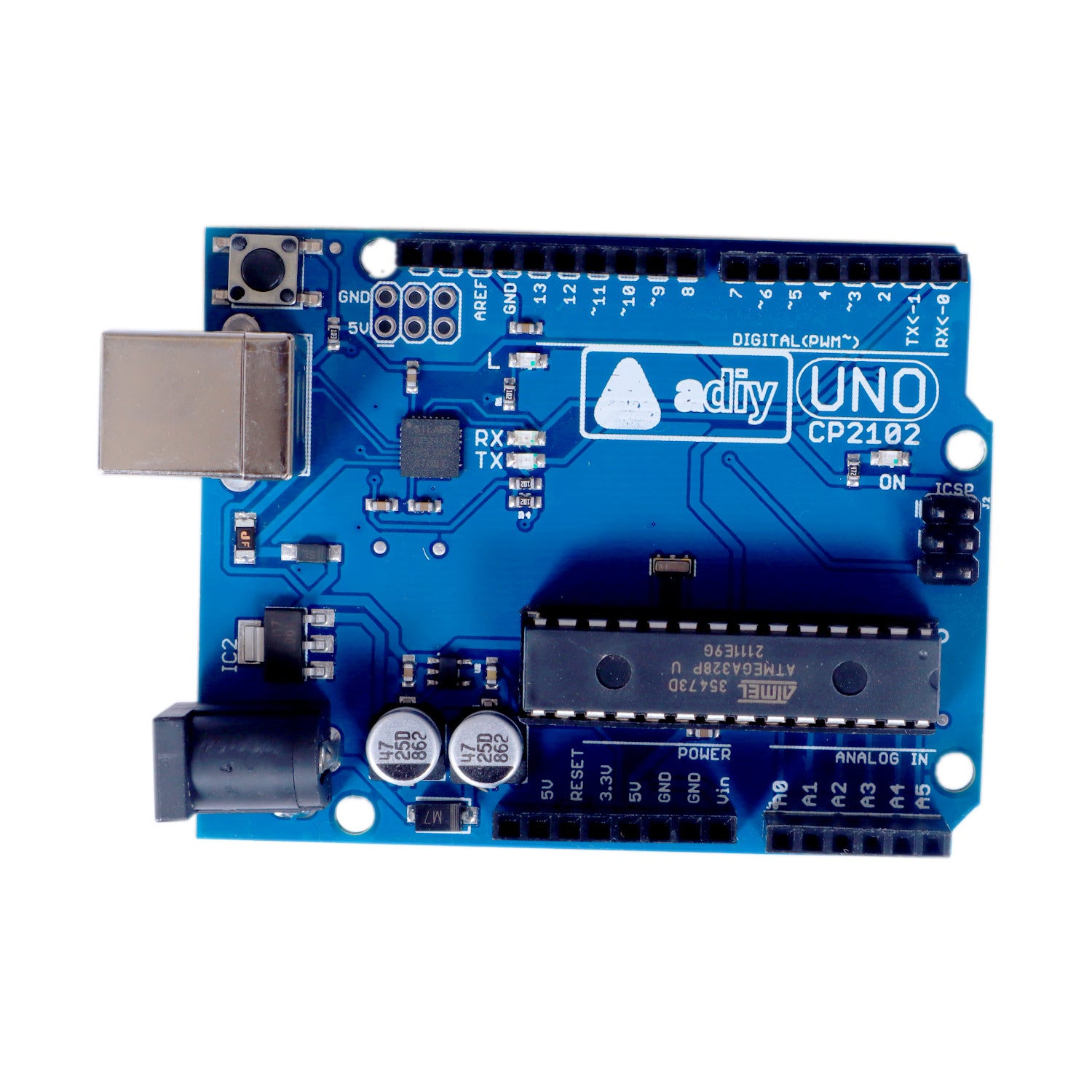

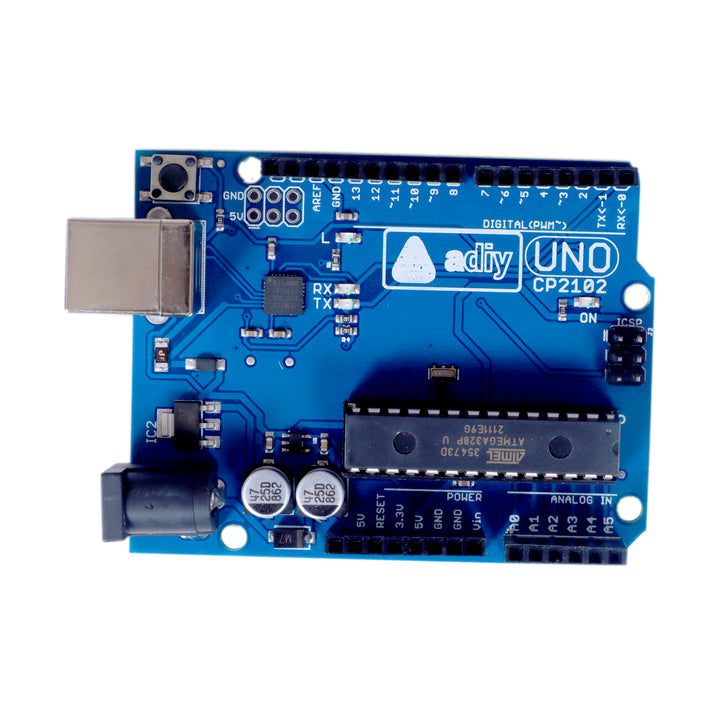

The Uno R3 CP2102 ATmega328P Development Board is the low-cost version of the popular UNO R3. Instead of ATmega16U2 processor, it is assembled with CP2102 IC. Adiy UNO is a microcontroller board based on the ATmega328P.
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
Specifications:-
Board Name: Adiy UNO R3 Cp2102
Microcontroller: ATmega328P
USB-Serial IC: CP2102
USB connector: USB-B
Pins
Built-in LED Pin: 13
Digital I/O Pins: 14
Analog input pins: 6
PWM pins: 6
Communication:
UART: Yes
I2C: yes
SPI: Yes
Power: I/O Voltage: 5V
Input voltage (nominal): 7-12V
DC Current per I/O Pin: 20 mA
Power Supply Connector: Barrel Plug
Clock speed: Main Processor: ATmega328P 16 MHz
Memory: ATmega328P: 2KB SRAM, 32KB FLASH, 1KB EEPROM
Width: 53.34 mm
Length: 68.58 mm
Product Includes:-
1x Adiy Uno R3 – Compatible CP2102
