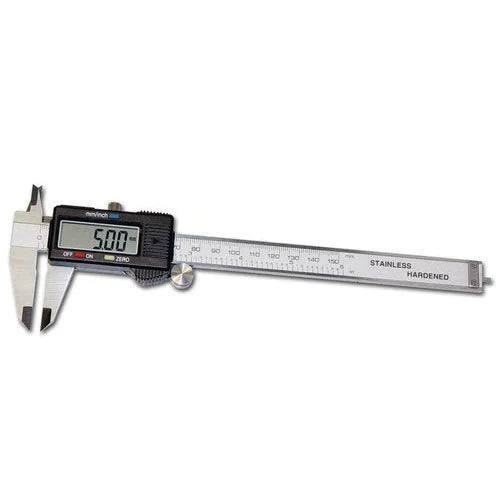

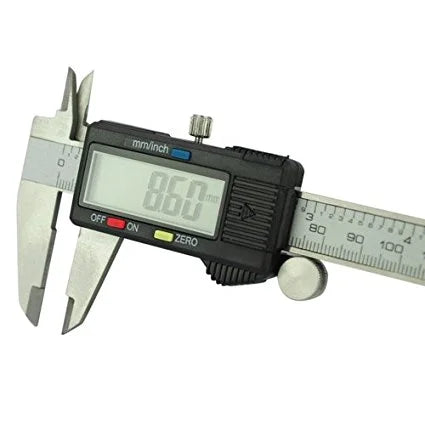

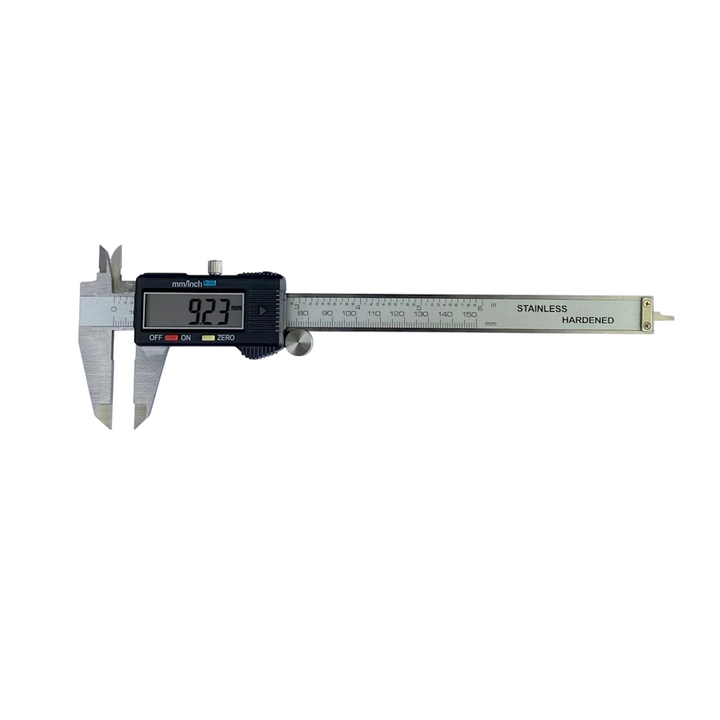

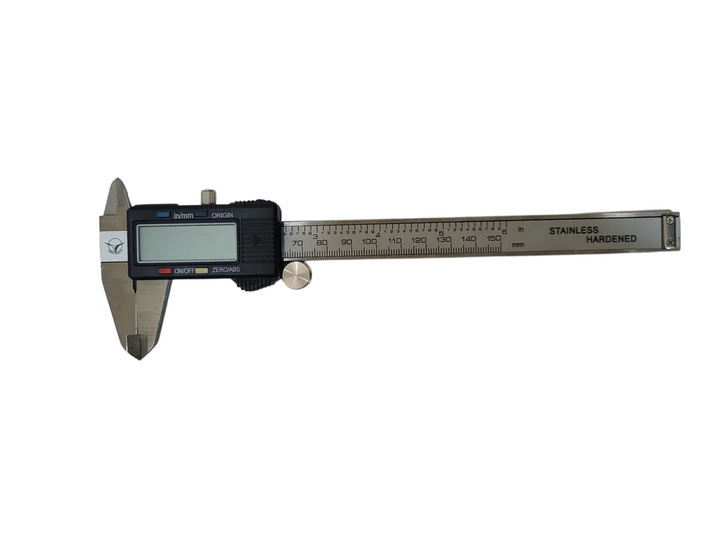

Aerospace Digimatic Electronic Digital Caliper 150mm 0.01mm Accuracy Stainless Steel LCD Display Metric & SAE Modes

Rs. 1,199.00 Rs. 1,015.00 SAVE 15%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE02937
Availability : In Stock Pre order Out of stock
Categories: Measuring Instruments
Description

The Digimatic Electronic Digital Caliper 150mm is a premium-grade measuring instrument engineered for precision, durability, and user convenience. Designed for both professional and personal use, this digital caliper offers a blend of modern electronics and robust mechanical construction to ensure accurate, repeatable measurements in a variety of industrial, mechanical, and technical applications.

Crafted from high-quality hardened stainless steel, it resists wear and corrosion, making it ideal for tough workshop environments. The caliper features a smooth-gliding rail system with a knurled thumb roller and a locking screw to hold measurements in place during reading and transfer.

Its large LCD display presents readings in an easy-to-read format, supporting dual-unit measurement—millimeters and inches—with a simple press of a button. This allows for immediate conversion between units without the need for manual calculation.

This tool can accurately measure internal dimensions, external dimensions, depth, and step values, making it extremely versatile. With a resolution of 0.01mm (0.0005 inch) and an accuracy of ±0.02mm, it is suitable for high-precision tasks in machining, fabrication, product design, and quality inspection.

The built-in linear capacitive measuring system offers fast and stable readings, while the auto power-off function helps conserve battery life when not in use. The caliper runs on a standard LR44 battery, which is included in the package. Its compact dimensions make it easy to store and transport in toolboxes or lab drawers.

Applications:

  • Machining and CNC part inspection

  • Electronic component measurement

  • Plastic and metal prototype measurement

  • Depth and inside bore verification

  • Engineering R&D, academic projects, QA labs

Key Features:

  • Dual-mode measurement: Metric (mm) & Inch

  • Durable stainless steel construction

  • 0.01mm / 0.0005in resolution for ultra-precision

  • Measures inside, outside, depth & step dimensions

  • Clear LCD for fast and easy reading

  • Manual locking screw and thumb roller for fine adjustments

  • Zero function at any position

  • Automatic power-off for battery conservation

  • Lightweight, portable, and shock-resistant

Technical Specifications:

Parameter Value
Measuring Range 0–150 mm / 0–6 in
Resolution 0.01 mm / 0.0005 in
Accuracy ±0.02 mm (up to 100mm) / ±0.03 mm (up to 200mm)
Repeatability 0.01 mm / 0.0005 in
Maximum Measuring Speed 1.5 m/s (60 in/s)
Display Digital LCD Screen
Material Hardened Stainless Steel
Power Supply 1 x LR44 Button Cell Battery (1.5V)
Battery Capacity 180 mAh
Auto Power Off Yes (extends battery life)
Working Temperature 5°C – 40°C (41°F – 104°F)
Relative Humidity ≤80%
Measuring System Linear Capacitive Sensor
Functions mm/inch toggle, zero setting, auto power off
Product Dimensions 18 x 5 x 3 cm

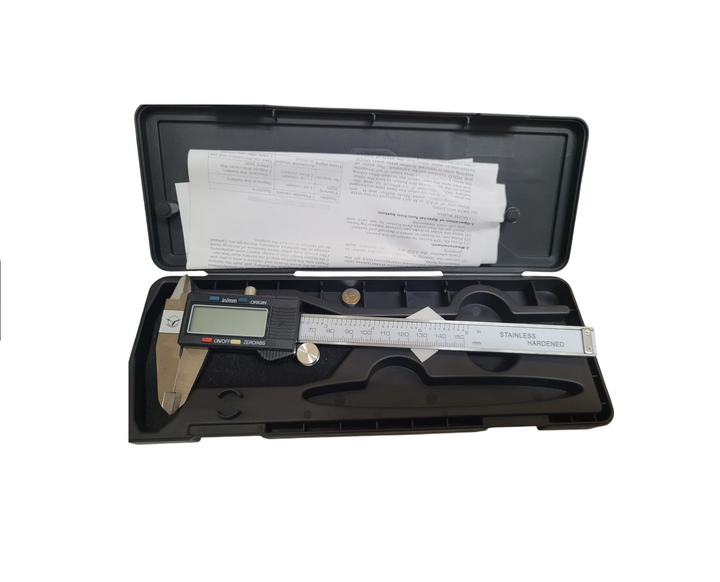

Package Includes Digital Caliper, Battery, Manual, Box

Package Includes:

  • 1 × 150mm Digimatic Electronic Digital Caliper

  • 1 × LR44 Battery (Pre-installed)

  • 1 × User Instruction Manual

  • 1 × Protective Product Box
