Ai-Thinker VC-02 Offline Speech Recognition Control Module

Rs. 690.00

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE03035
Availability : In Stock Pre order Out of stock
Categories: Ai-thinker Bluetooth and NRF Modules
Description

The Ai-Thinker VC-02-Kit is a compact, high-performance AI and display control module designed for applications that require advanced signal processing, voice interaction, and intelligent control in embedded systems. Built around a powerful 32-bit RISC processor running at 240MHz, this module combines strong computing performance with rich peripheral interfaces for versatile development.

With a built-in 2MB Flash memory and 242KB high-speed SRAM, the VC-02-Kit supports data buffering, audio processing, and real-time control operations efficiently. It features multiple communication interfaces including UART, I²C, DAC, and PWM, enabling easy integration with sensors, displays, and external controllers.

The board supports dual-channel DAC output and DSP instruction set with FPU (Floating Point Unit), making it suitable for signal processing, sound output, and AI-based applications. All GPIOs are configurable as external interrupts or wake-up sources, providing flexibility for low-power or interactive designs.

Compact and lightweight, the Ai-Thinker VC-02-Kit is an ideal choice for AI-driven projects, voice processing systems, smart display controllers, and IoT edge applications that require robust performance within a small footprint.

Applications

  • AI voice interaction systems

  • Smart home controllers and IoT hubs

  • Embedded audio and sound signal processing

  • Display and UI control modules

  • Low-power intelligent devices

  • Custom automation or communication interfaces

Key Features

  • High-performance 32-bit RISC core, up to 240MHz

  • Built-in 242KB SRAM and 2MB Flash memory

  • All GPIOs configurable as external interrupt or wake-up sources

  • One full-duplex UART supporting up to 3Mbps data rate

  • Supports I²C, DAC, PWM and other multiple interfaces

  • Dual-channel DAC output for high-quality signal/audio output

  • Supports DSP instruction set and FPU floating-point operations

  • Operates at 5V DC, with a typical current of 500mA

  • Compact design for easy integration into AI and IoT systems

Technical Specifications

Parameter Details
Item Type AI and Display Module
Model Name Ai-Thinker VC-02-Kit
Processor 32-bit RISC Core @ 240MHz
Operating Voltage 5V DC
Current Consumption 500mA
SRAM 242KB High-Speed
Flash Memory 2MB
UART Interface 1 × Full-duplex (up to 3Mbps)
Supported Interfaces I²C, DAC, PWM, GPIO
DAC Output Dual-channel
DSP/FPU Support Yes

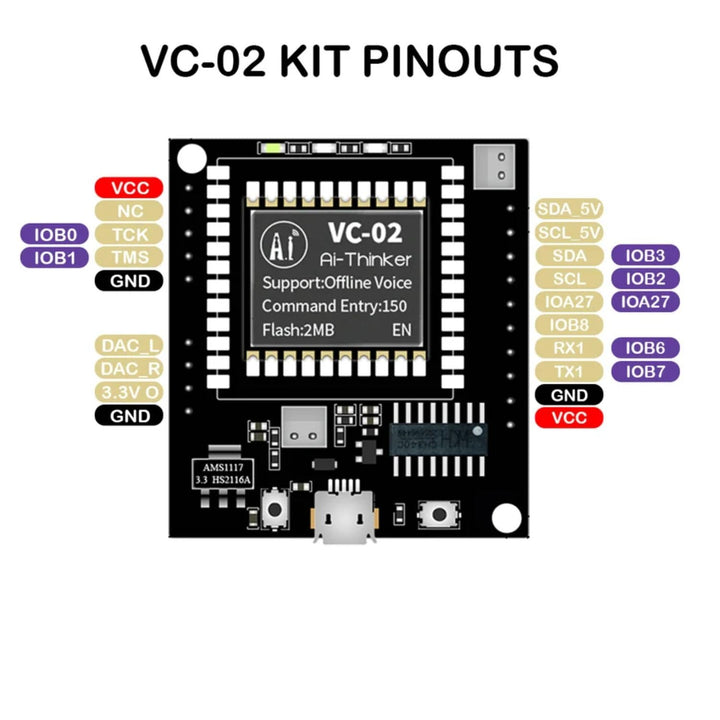

GPIO Functionality Configurable as interrupt/wake-up
Shipping Weight 0.018 kg
Shipping Dimensions 10 × 6 × 2 cm

Package Includes

  • 1 × Ai-Thinker VC-02-Kit AI and Display Module
