(BT-41D): 16/240V AC Programmable Daily/Weekly Digital LCD Display

Rs. 649.00 Rs. 575.00 SAVE 11%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE02420
Availability : In Stock Pre order Out of stock
Categories: Others
Description

The (BT-41D) 16/240V AC Programmable Daily/Weekly Digital LCD Display Timer is a versatile and user-friendly timer switch designed to control 16/240V AC electrical appliances with precision. It offers programmable functionality for daily or weekly scheduling, allowing users to set on/off times for connected devices, making it ideal for applications such as lighting automation, appliance control, and energy management.

Featuring a digital LCD display, the BT-41D offers clear visibility of settings and real-time feedback. The programming options enable multiple on/off schedules, offering flexibility for varied usage scenarios, whether for home, office, or industrial applications. The weekly programming function allows for different schedules each day of the week, enhancing customization. Built for high-voltage environments, it ensures safe operation with up to 240V AC. This timer switch is highly efficient in reducing energy consumption by automatically turning off devices when not needed, thereby contributing to energy savings and enhanced automation in homes or businesses.

Applications

  • Daily or weekly lighting automation

  • Time-based control for heaters, fans, or pumps

  • Power scheduling for offices or shops

  • Garden watering system control

  • Energy saving automation for household devices

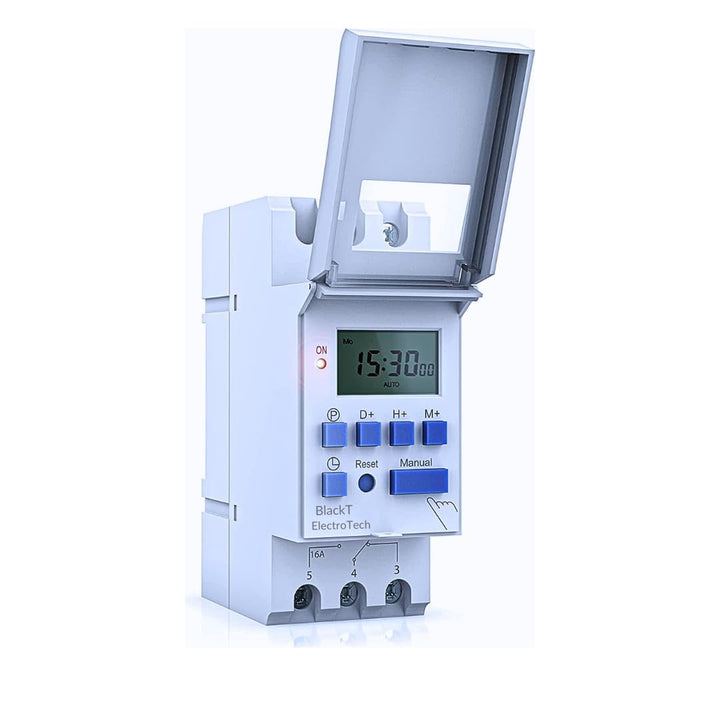

Features

  • Supports 16A high-power loads at 240V AC

  • Digital LCD display with real-time clock

  • Daily and weekly programmable ON/OFF cycles

  • Backup battery retains settings during outages

  • Manual override button for immediate control

  • Flush mount with terminal screw connections

Specifications

Parameter Details
Model BT-41D
Operating Voltage 220V to 240V AC
Frequency 50Hz
Max Load Capacity 16A / 3500W (Resistive Load)
Programs Supported Up to 10 or more ON/OFF cycles
Display Type Digital LCD with clock and schedule
Control Mode Daily / Weekly Programming
Backup Battery Yes (NiMH rechargeable)
Output Type SPST Relay (Normally Open)
Manual Override Yes

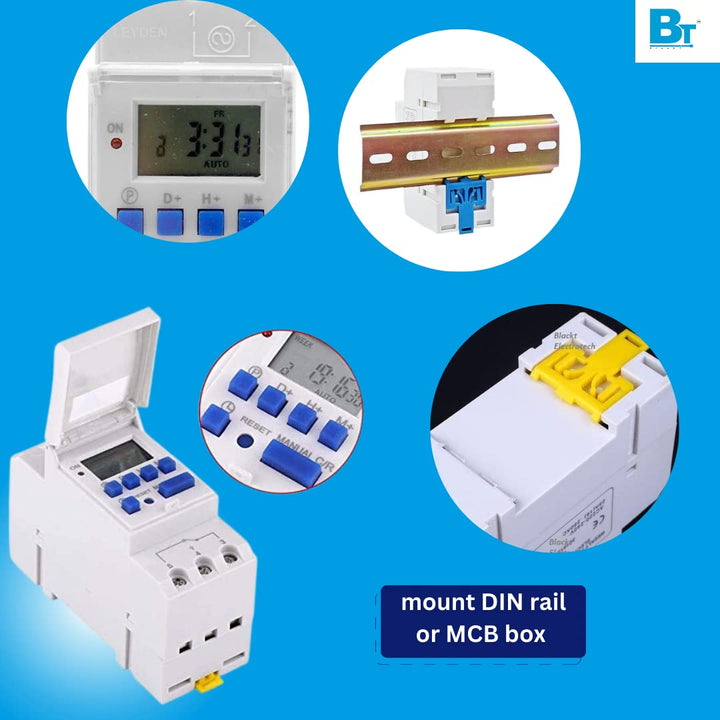

Installation Type DIN Rail / Panel Mount
Body Material Flame-retardant ABS
Operating Temperature -10°C to +50°C

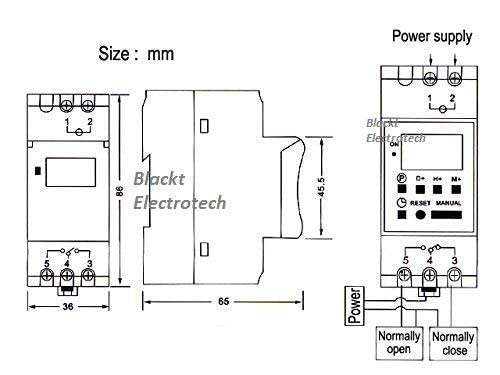

Dimensions (L x W x H) Approx 86mm x 36mm x 66mm
Weight Approx 140g

Package Include:-

1x(BT-41D): 16/240V AC Programmable Daily/Weekly Digital LCD Display
