(BT31M1) Microwave/Radar Motion Sensor Occupancy Motion Detector

Rs. 799.00 Rs. 729.00 SAVE 9%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE02422
Availability : In Stock Pre order Out of stock
Categories: IR, Light and PIR Sensor Sensors
Description



The (BT31M1) Microwave/Radar Motion Sensor Occupancy Motion Detector is a cutting-edge, high-performance sensor designed to detect motion and occupancy through microwave and radar technology. Operating on advanced microwave sensing principles, this motion detector offers superior sensitivity and precision in detecting movement even through materials like walls, glass, or thin partitions. It is ideal for use in lighting systems, HVAC automation, and security applications where accurate motion detection is needed.

The (BT31M1) features wide coverage areas, capable of detecting motion in large rooms, corridors, and offices, providing significant flexibility in installation. It supports a wide range of voltages and is energy-efficient, contributing to smart building systems that automate lighting and climate control based on occupancy. Its compact and durable design ensures easy integration into ceilings or walls, while the radar technology minimizes false alarms caused by environmental disturbances. This motion sensor is suitable for offices, restrooms, corridors, and warehouses where energy-saving automation is essential.

Applications

  • Indoor lighting automation

  • Office and corridor occupancy detection

  • Restroom and hallway motion-activated lights

  • Commercial security and energy control systems

  • Home automation and smart lighting

Features

  • Microwave Doppler radar-based motion detection

  • Penetrates glass, plastic, and light walls

  • Compact surface-mountable design

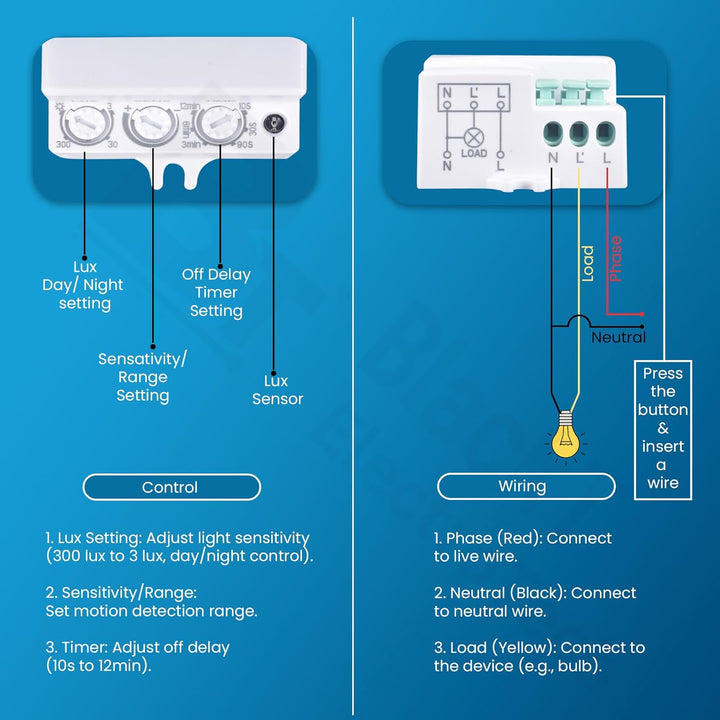

  • Adjustable time delay and sensitivity

  • Automatic day/night light detection

  • Low power consumption and high reliability

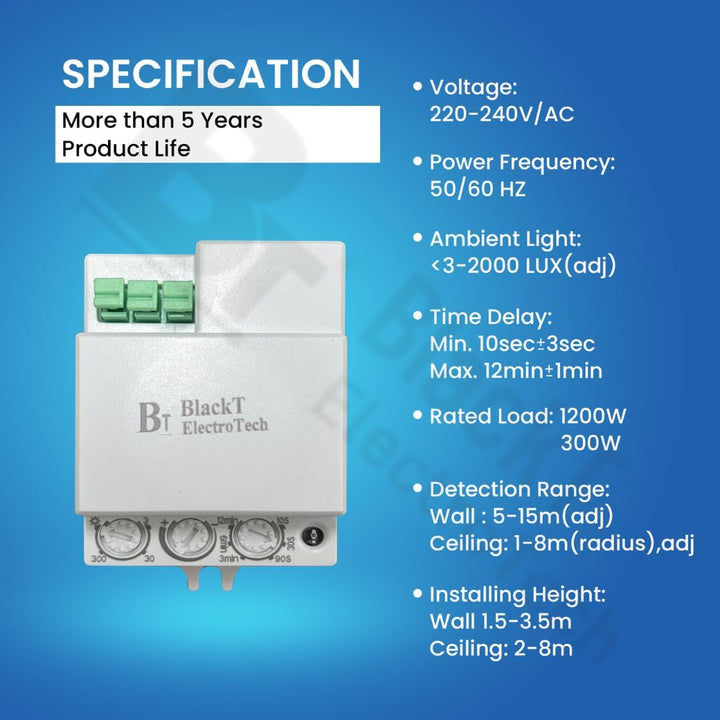

Specifications

Parameter Details
Model BT31M1
Detection Type Microwave Doppler Radar
Operating Voltage 220V to 240V AC
Operating Frequency 5.8GHz ± 75MHz
Detection Angle 360° (adjustable)
Detection Distance 1–8 meters (adjustable)
Light Sensitivity 2–2000 Lux (adjustable)
Time Delay Range 10 seconds to 12 minutes
Load Capacity Up to 300W LED / 1200W Incandescent
Output Type Relay (Normally Open)
Mounting Type Surface Mount
Operating Temperature -20°C to +50°C
Dimensions Approx 75mm x 60mm x 28mm
Weight Approx 60g

Package Include:-

1x(BT31M1) Microwave/Radar Motion Sensor Occupancy Motion Detector
