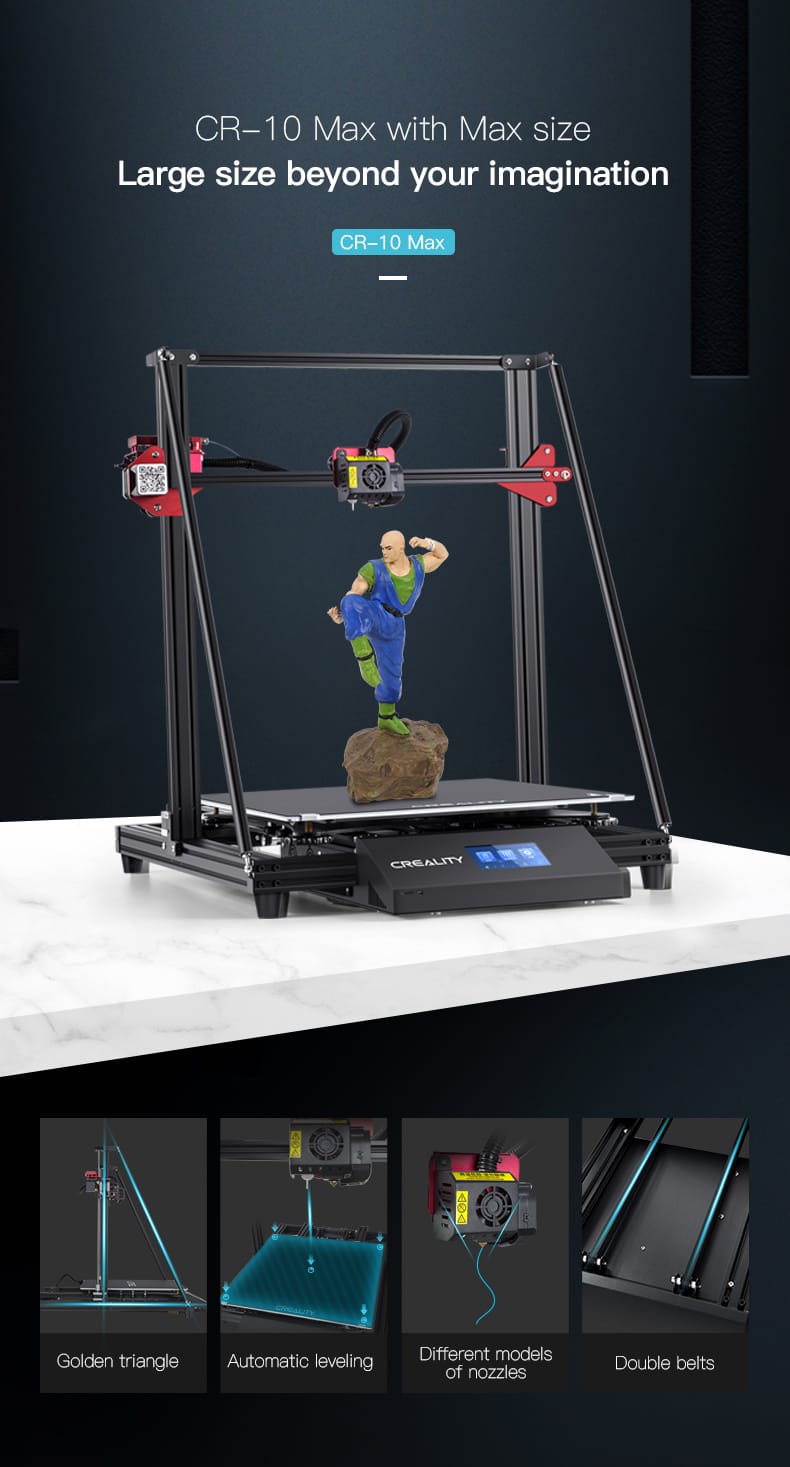

Creality CR 10 MAX 3D Printer

The CR-10 Max 3D printer is a high-precision, quasi-industrial grade printer that boasts auto-leveling and a large build volume, making it ideal for a wide range of printing applications. With its American standard design, this printer offers exceptional reliability and precision, making it a top choice for both professional and hobbyist users. Whether you're printing large or small models, the CR-10 Max delivers outstanding results every time.

Features:

Massive Printing Volume:

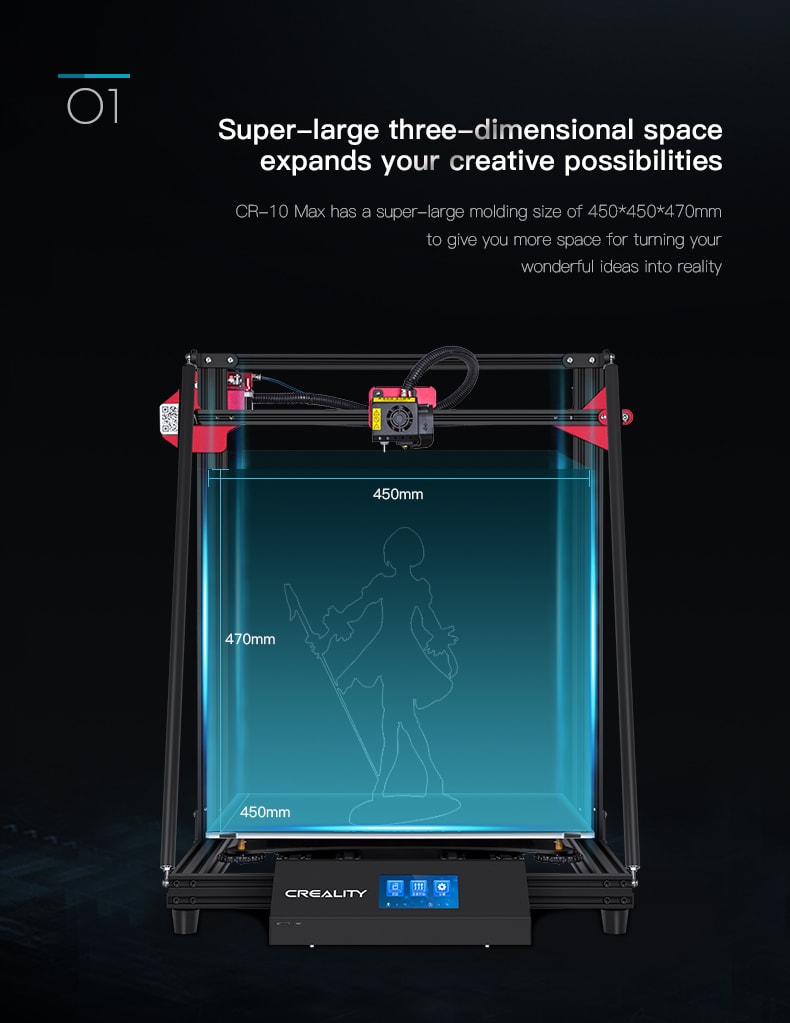

• CR 10 MAX printing size is 450*450*470mm, larger than CR10 3D printer, super large molding size to meet diverse printing requirements

Smooth Feeding:

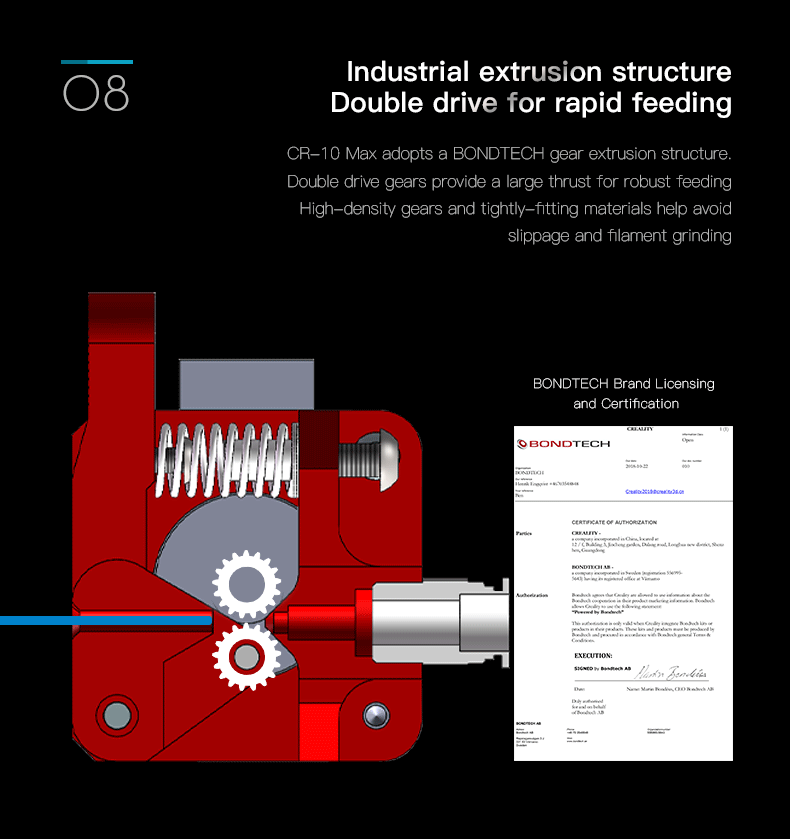

• Bondtech gear extrusion structure designed, double drive gears for a strong thrust and high extrusion and feeding performance.

Automatic leveling:

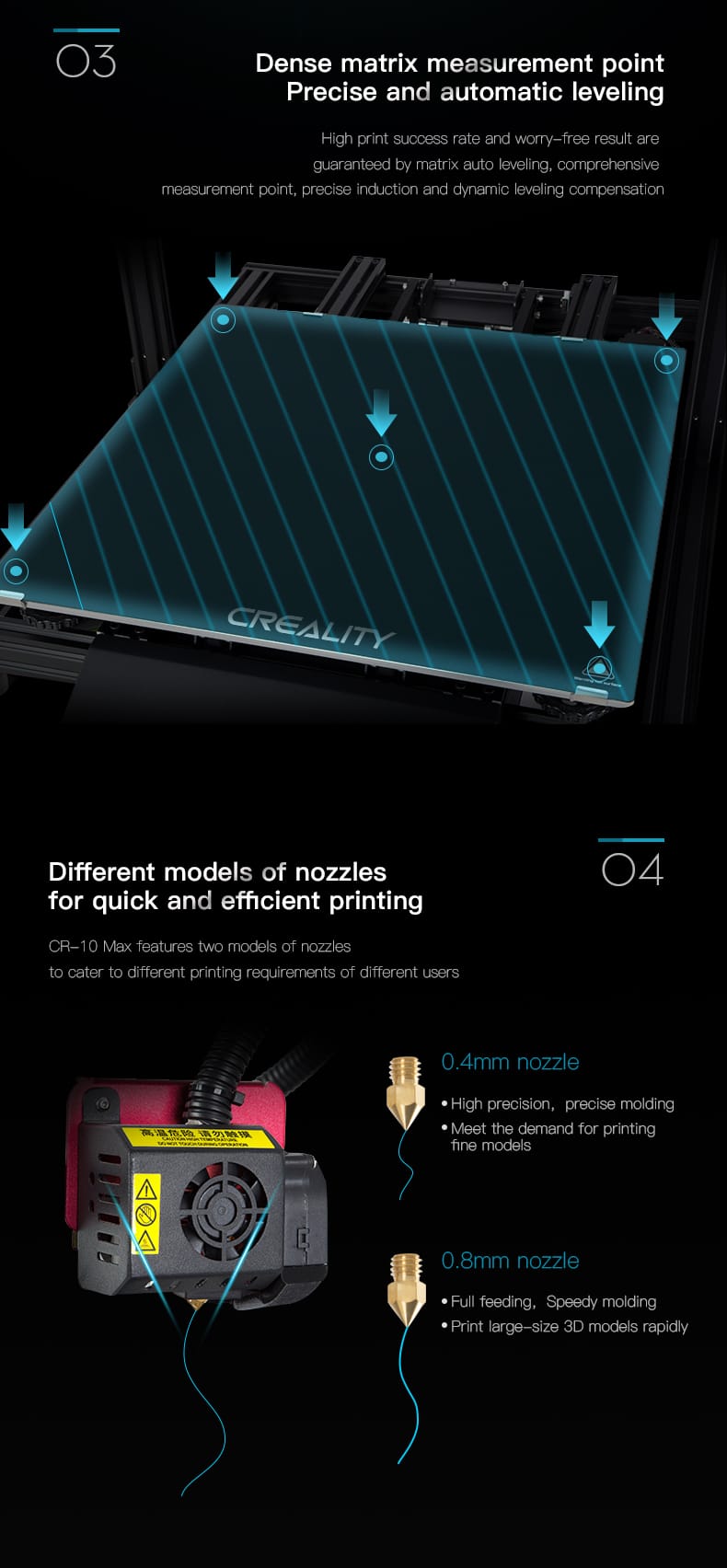

• Imported Bl Touch included for 16 points fast leveling, more friendly UI designed.

Two Power Supplies Added:

• Two power supplies with wide voltage: Two power supplies for motherboard and hotbed by way of two-way output, synchronous power supply for the quick response and stable operation.

More Stable Printing:

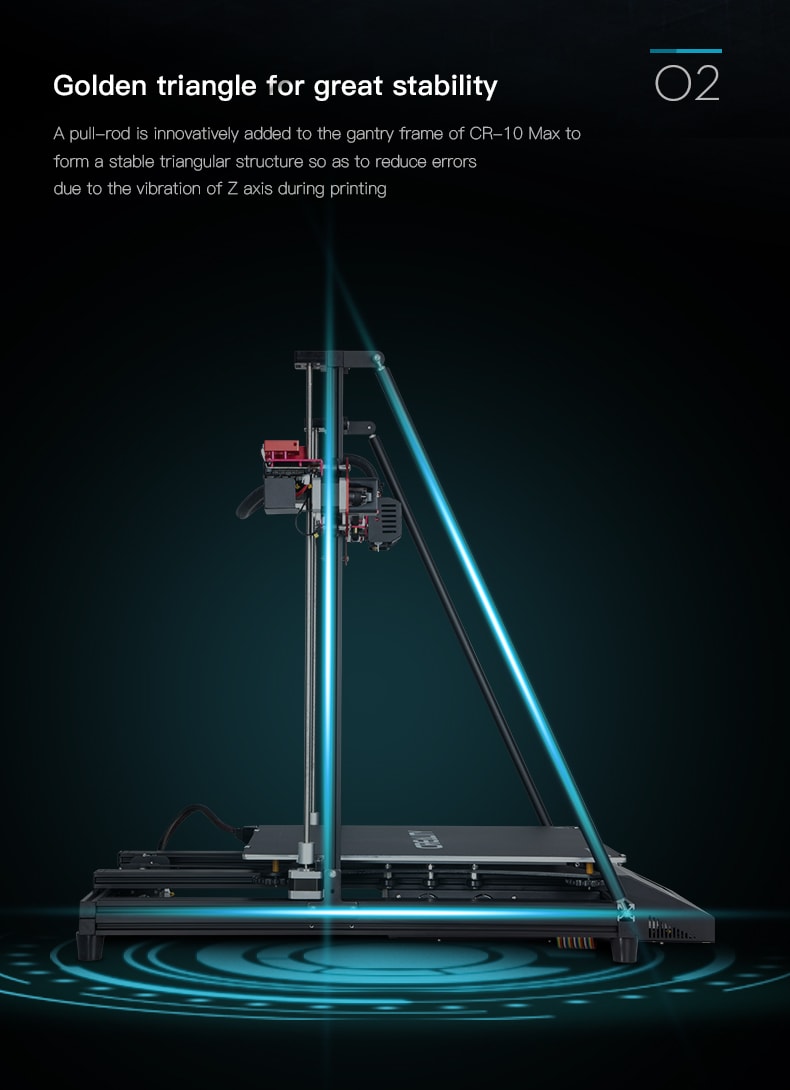

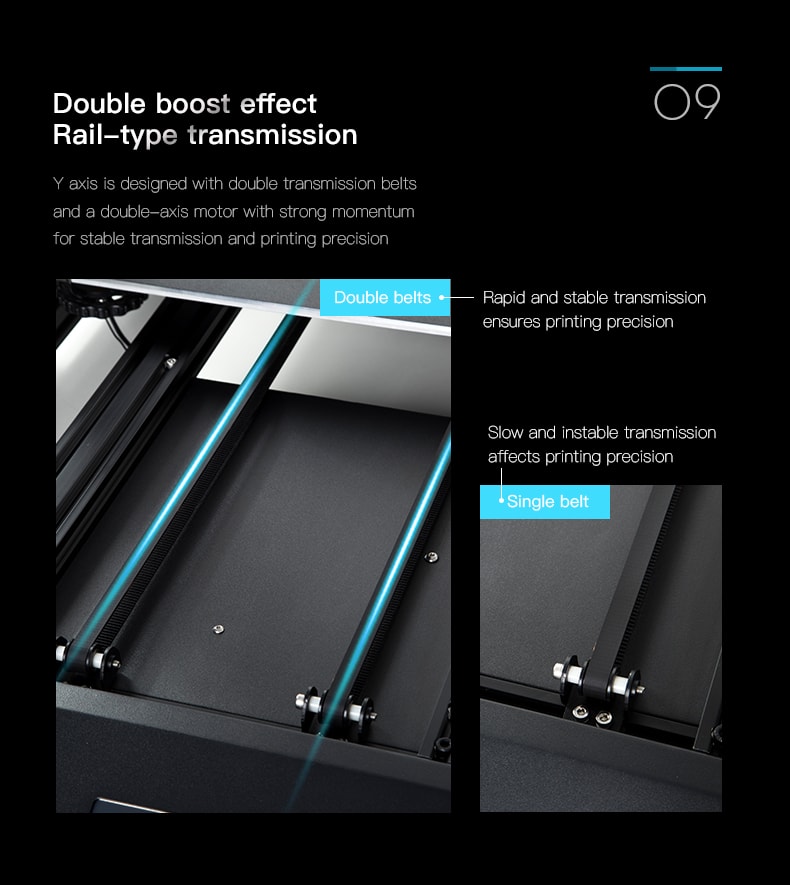

• Golden triangle to reduce Z-axis vibration for high large-size printing precision; Y-axis double transmission belts and a double-axis motor with strong momentum for stable transmission and printing precision.

Filament Sensor:

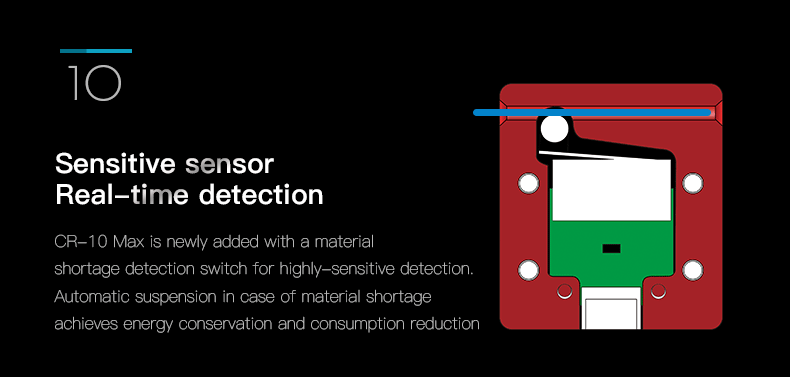

• Automatic suspension when materials run out, break up or run into other abnormalities for energy conservation and consumption reduction

Imported Capricorn Bowden Teflon tube:

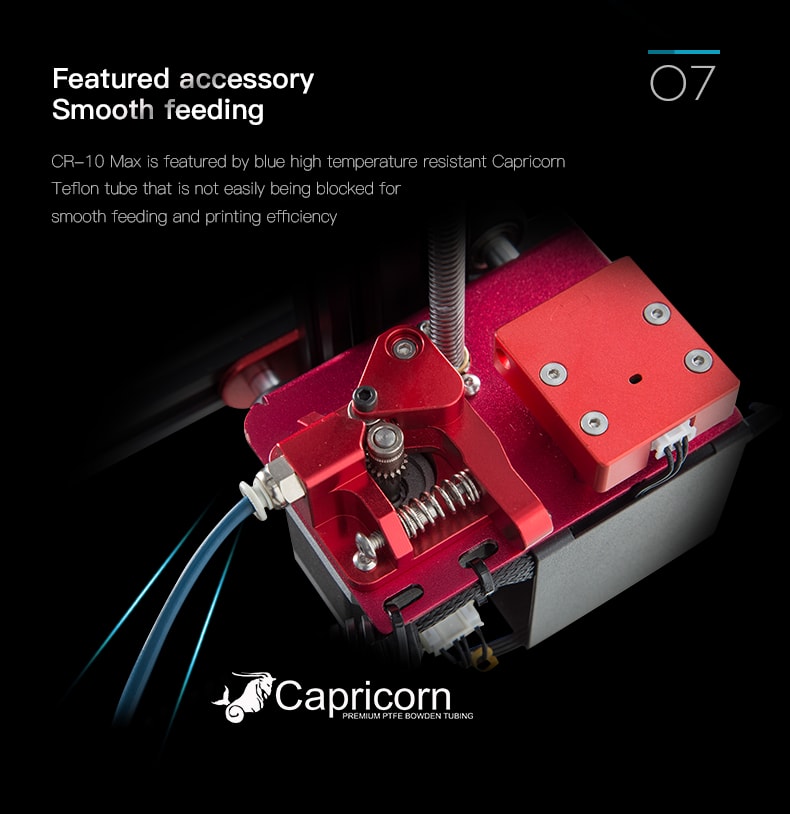

• Blue high-temperature resistant Capricorn Teflon tube without being easily blocked for smooth feeding and printing efficiency

Resume Printing Function:

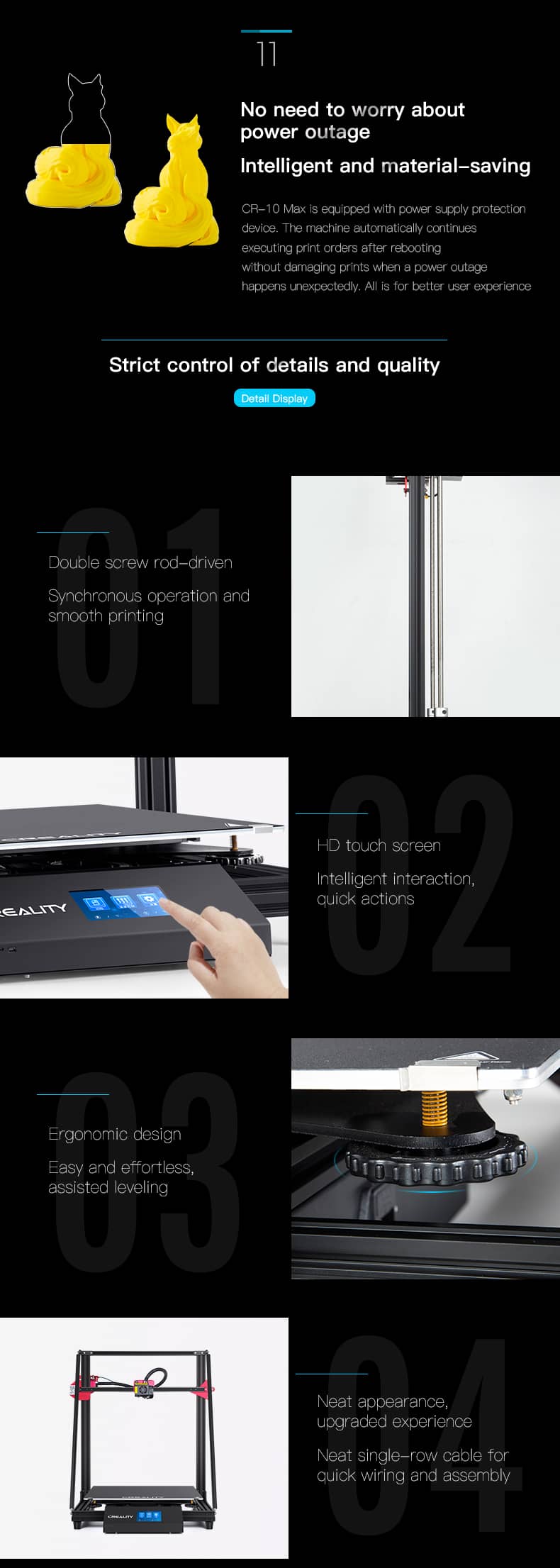

• Automatically save printing records, continue printing after power-on for a high model printing success rate.

Specifications:-

• Brand: Creality
• Model: CR-10 Max
• Molding technology: FDM(fused deposition molding)
• Printing size: 50X450X470
• Printing precision: ±0.1mm
• Slice thickness: 0.1-0.4mm
• Nozzle diameter: Standard 0.4mm，0.8mm
• Nozzle number: 1
• Nozzle temperature: ≤250℃
• Hotbed temperature: ≤100℃
• Working mode: TF card offline or online
• File format: STL，OBJ, amf
• Slicing software: Cura、Simplify3D
• Power supply: Double power supply, Mother board 75W 24V，Input: 100-240V AC Output: 24V；Hot bed power supply 750W 24V，Input: 100-240V AC Output: 24V
• Machine power: 750W
• Printing material: PLA
• Filament diameter: 1.75mm
• Machine size: 650x785x735mm
• Package Size: 735X735X305mm
• Gross Weight: 24.8KG
• Net Weight: 20.0KG
• XY axis position precision: 0.012mm
• Z-axis position precision: 0.001mm
• Screen: 4.3-inch touch screen
• Control system: Windows XP/Vista/7/10 MAC Linux
• Motor parameter: 42-40 stepper motor，42-34 stepper motor Step angle1.8°

Product Includes:-

1x Creality CR 10 MAX 3D Printer
