Creality Rotary Kit Pro

Rs. 13,999.00 Rs. 12,000.00 SAVE 14%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE02640
Availability : In Stock Pre order Out of stock
Categories: CNC
Description

The Creality Rotary Kit Pro is a high-performance rotary attachment developed specifically to expand the creative capabilities of laser engravers. Designed for both professionals and hobbyists, this advanced rotary module enables precise and stable engraving on curved and cylindrical surfaces, such as tumblers, bottles, rings, pipes, and even irregular spherical objects. Engineered for seamless compatibility with Creality's laser engravers and other systems using a 6-pin PH2.0-6P interface, it opens up new possibilities in laser processing.

Creality Rotary Kit Pro For curved surface engraving

One set of jaws for multiple needs，Suitable for a wide range of curved works
Multifunctional Adjustable Jaws – One set of adjustable jaws can handle objects of all shapes with external clamping and internal support.
One-handed Clamping of Engraved Items – The set screws help stabilize the rotary chuck, making it easy to clamp engravings with one hand without requiring multiple operators.
Adjustable Rotary Chuck – The rotary chuck enables 360° of rotating engraving. It can be adjusted to fit large, tiny objects with the hex stud and jaws.
No Assembly Required
Anti-slip Soft-pad – The soft pad enhances friction and protects fragile items from damage, ensuring quality engraving results. With anti-slip pad Without anti-slip pad
High Precision & Wide Range
Compatible with Various Engraving SoftwareLightburn& LaserGRBL
Compatible with Other Brands
Applicable Works:

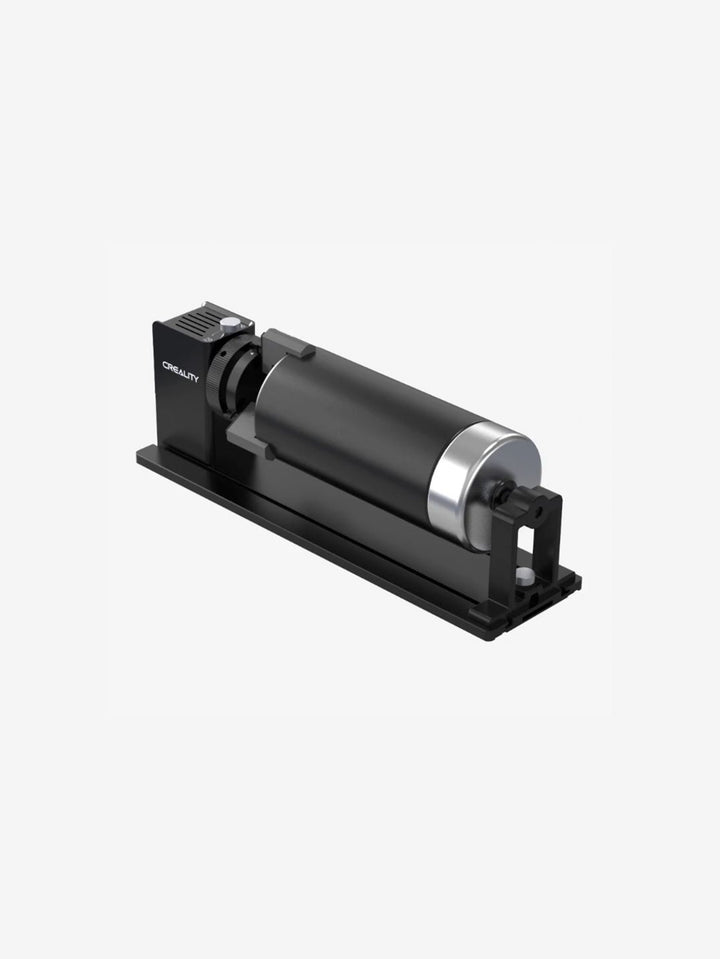

  • cylinders: such as thermos cups, mugs

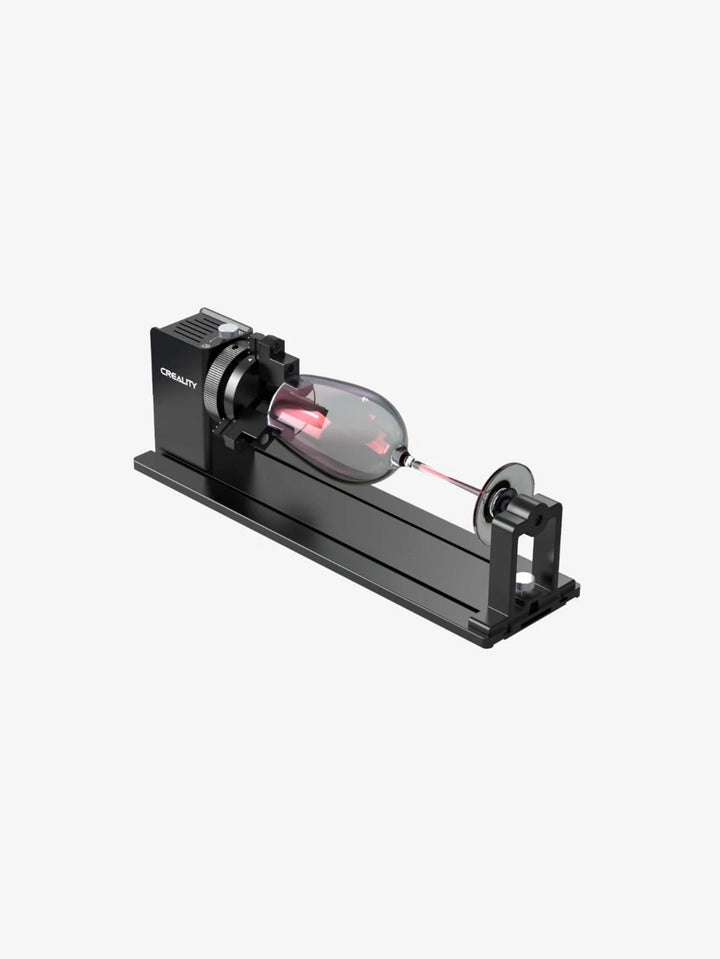

  • cone: such as goblets, conical bottles
  • hemispheres: bowls

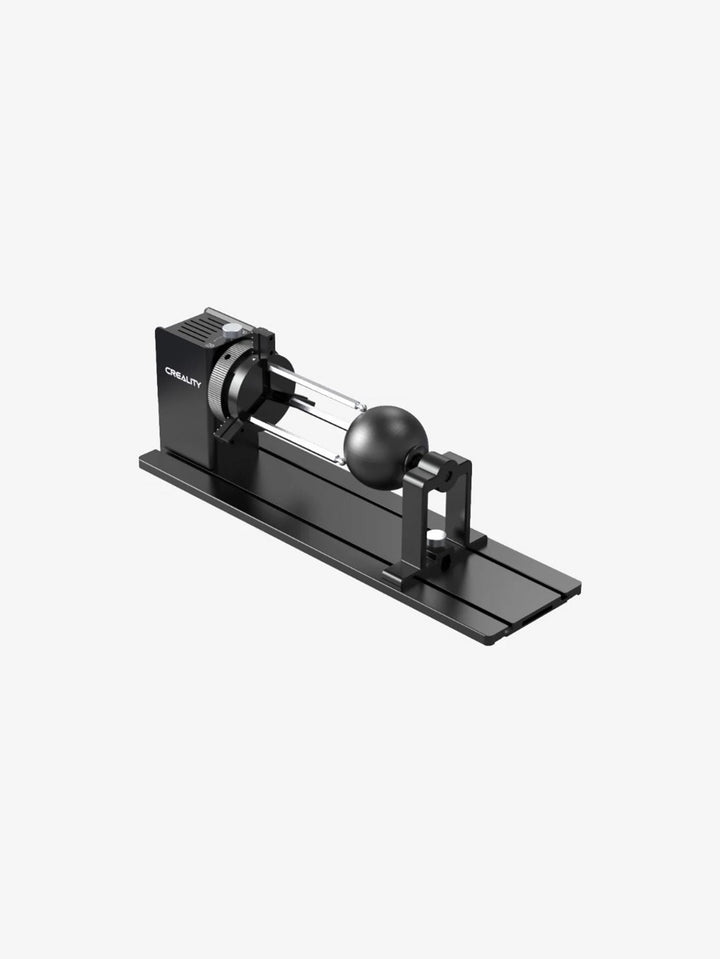

  • spheres: such as crystal balls, oranges

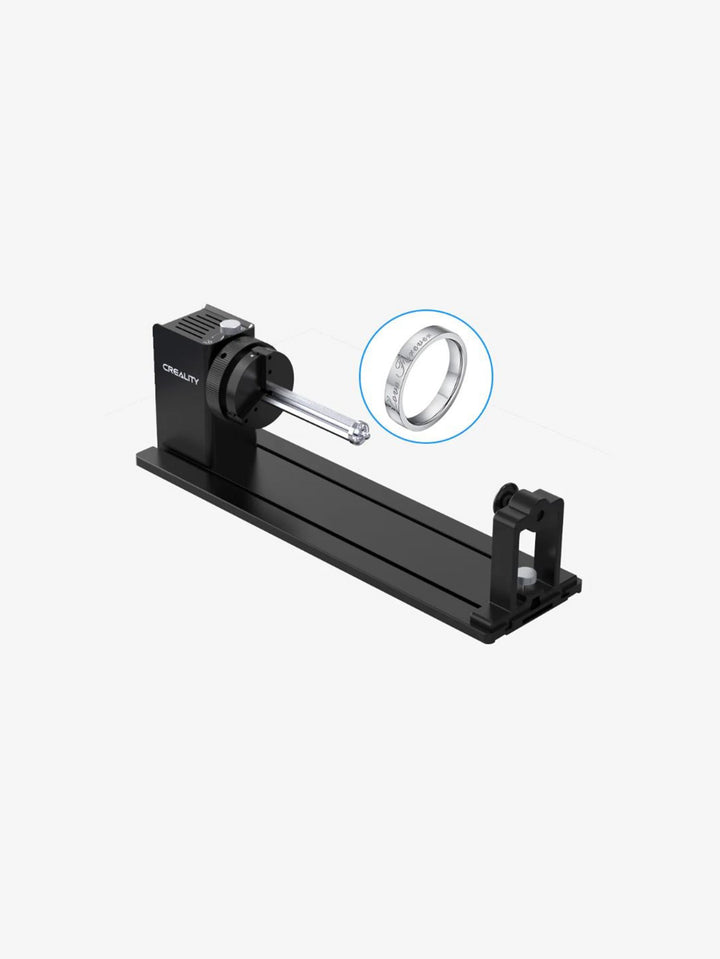

  • Ring body: such as rings, bracelets

Feature:-

  • Multi-functional clamping system for cylindrical, spherical, and ring-shaped objects

  • Supports outer clamping, inner clamping, and hex stud positioning

  • Wide diameter range from 1 mm to 130 mm depending on object type

  • 360-degree precision rotary chuck for uniform engraving

  • One-handed operation with quick adjustment screws

  • Non-slip rubber pads protect delicate surfaces

  • Plug-and-play design with no assembly required

Specifications
Attribute Details
Product Name Creality Rotary Kit Pro
Model Number CRE-4005020010
Manufacturer Creality
Product Type Laser Engraver Rotary Attachment
Compatibility Creality Falcon2 series and other 6-pin (PH2.0-6P) interface laser engravers
Product Dimensions 360 mm (L) × 122 mm (W) × 100 mm (H)
Product Weight Approx. 2.5 kg
Material High-quality aluminum alloy with rubberized gripping pads
Color Black
Software Compatibility LightBurn, LaserGRBL
Power Supply Powered through the engraver (via 6-pin cable)
Connection Interface PH2.0-6P (6-pin)

Package Include:-

1xCreality Rotary Kit Pro
