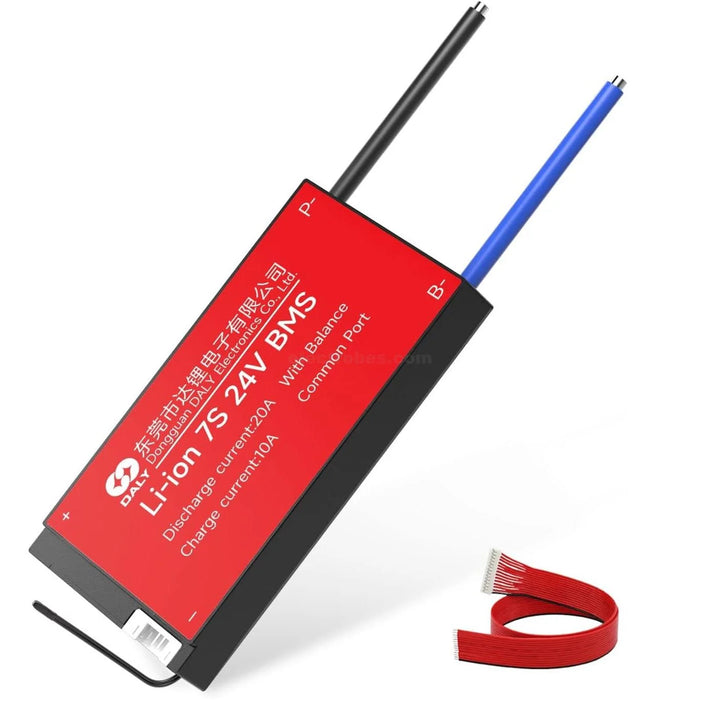

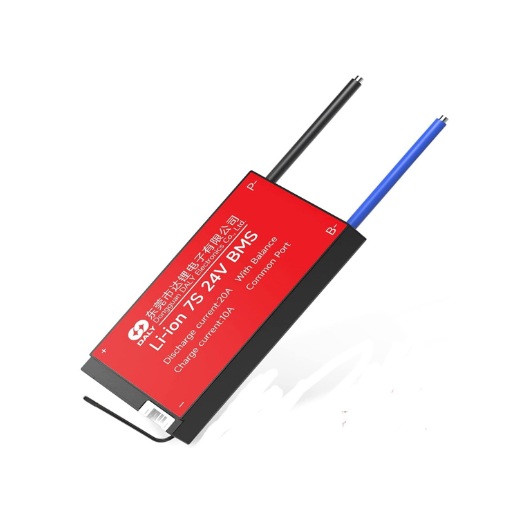

Daly 7S 24V 20A Li-Ion Battery Management System

Rs. 999.00 Rs. 815.00 SAVE 18%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE02491
Availability : In Stock Pre order Out of stock
Categories: Daly Battery Management System
Description

The Daly Li-Ion 7S 24V 20A Battery Management System (BMS) ensures the optimal performance and safety of lithium-ion battery packs. Specifically designed for 7-series cells, it maintains a stable 24V output and handles currents up to 20A. The BMS monitors and balances individual cells, protecting against overcharging, over-discharging, and overheating.

With Daly’s reputation for reliability, this BMS is a crucial component for applications requiring a dependable and efficient battery management solution, offering peace of mind for users in various electronic and energy storage projects. Tags, BE-002883, DALY 7S 24V 20A Lithium Ion Battery BMS Waterproof with Balance Charging, Daly 7S20Amp 24V Li-Ion BMS With Balancing And Waterproof, 7S 24V 20A Battery Charging Module PCB BMS For 7S Li LicoO2 Limn2O4 18650 Battery, Li-ion 7S 24V BMS, 1-JG-66398-J07G6-AA, DALY BMS 7S 24V 20A for Lithium Ion Battery, DALY 7S Li-ion 10A Common Port BMS.

Application:

The Daly 7S 24V 20A Li-Ion BMS is ideal for:

  • Electric Vehicles (e.g., e-bikes, e-scooters, and electric cars)
  • Solar Energy Storage Systems
  • DIY Battery Packs for various electronics
  • Portable Power Stations
  • Electric tools and other battery-operated devices

Features:

  1. This is a DALY 7S 24V 20A common port BMS for Li-Ion Batteries
  2. Charges, Discharge Protection Current, Voltage range are permanently programmed inside BMS and cannot be changed.
  3. This is a 7S fixed configuration BMS. It cannot be used for any other battery pack configuration.
  4. This BMS also cannot be used for Li-Ion ,Li-Metal or LTO batteries. It is strictly for LiFePo4 battery packs only.

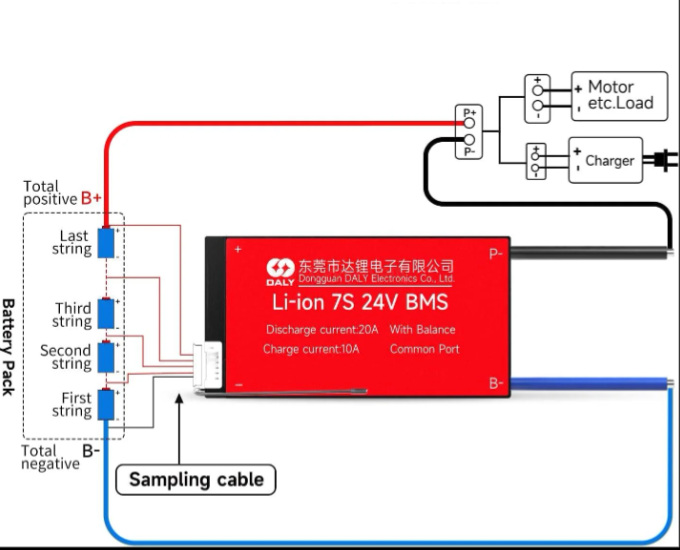

  5. Box contains: Rated voltage 24V BMS, balance sense cable (8 Wire sense cable with connector) and instruction sheet.
  6. Battery pack will stop charging when voltage reaches 4.25V and stop discharging when voltage reaches 3.0V of a cell.
  7. Temperature range of this BMS is from -20℃ to as high up to 70℃
  8. DALY BMS passed waterproof test, humidity and resistance test.
  9. DALY BMS can be used in home power storage system, RV Power supply, E-bike and other lithium battery related device.

Specifications:

Feature Specification
Model Daly 7S 24V 20A BMS
Nominal Voltage 24V (7S Li-Ion battery pack)
Current Rating 20A continuous, with 60A peak current
Operating Voltage Range 21V to 29V (for 7S battery configuration)
Overcharge Voltage 4.2V per cell
Overdis charge Voltage 2.5V per cell
Cell Balancing Yes, automatic balancing for each cell
Protection Functions Overcharge, overdis charge, overcurrent, short circuit, over-temperature
Temperature Range -20°C to 60°C (-4°F to 140°F)
Communication Interface CAN Bus (for communication with other devices)
Dimensions 130mm x 60mm x 15mm (L x W x H)
Weight Approx. 150g
Battery Type Li-Ion (Lithium-ion)
Operating Temperature -20°C to 60°C

Package Include:-

1xDaly 7S 24V 20A Li-Ion Battery Management System
