DALY Li-ion NMC 20S 72V 40A Waterproof Battery Management System
Including GST (No Hidden Charges)
Checkout securely with
The Daly 20S 72V 40A BMS is a high-quality lithium battery protection board designed for 20-series lithium battery packs with balance charging functionality. It incorporates an A-level integrated circuit (IC) that ensures precise battery management and protection. With a continuous discharge current of 40A and advanced power MOSFETs featuring low internal resistance and high voltage tolerance, this BMS offers reliable performance and enhanced efficiency.
Equipped with a heat sink for efficient cooling, the BMS supports accurate voltage detection for each cell, preventing overcharging and over-discharge. The device also features robust overcurrent and short circuit protection, safeguarding both the battery pack and the PCB from damage during prolonged short circuits. Continuous temperature monitoring via NTC sensors enables thermal protection during charging and discharging cycles, ensuring safety and battery longevity.
The Daly BMS is extremely energy efficient, consuming less than 100μA, and is protected with a high anti-corrosion, waterproof, and high-impedance ESD conformal coating for durability in harsh environments. This model includes intelligent passive balancing to maintain cell voltage uniformity and a fully sealed waterproof and dustproof design for enhanced protection against shocks and environmental factors.
Ideal for electric vehicles, energy storage systems, and high-voltage lithium battery packs, this BMS offers reliable management and protection for long-lasting battery performance.
-
Electric vehicles & e-bikes
-
Solar power battery banks
-
Energy storage systems
-
Industrial lithium battery packs
Features:
-
Advanced A-level IC with integrated power balancing function
-
40A continuous discharge current for high load performance
-
High voltage, low resistance MOSFETs with effective heat dissipation
-
Robust overcurrent and short circuit protection
-
Continuous temperature monitoring via NTC sensor with thermal protection
-
Ultra-low power consumption (<100μA)
Specifications:
| Parameter | Value |
|---|---|
| Model | 20S 72V 40A |
| Charge Voltage (V) | 84 |
| Charge Current (A) | 20 |
| Balance Current (mA) | 30 ± 5 |
| Balance Detect Voltage (V) | 4.18 |
| Working Current (µA) | 100 |
| Overcharge Detect Voltage (V) | 4.25 ± 0.05 |
| Overcharge Release Voltage (V) | 4.15 ± 0.05 |
| Over Discharge Detect Voltage (V) | 2.7 ± 0.1 |
| Over Discharge Release Voltage (V) | 3.0 ± 0.1 |
| Working Temperature Range (°C) | -20 to 70 |
| Cable Size (AWG) | 10 |
| Dimensions (L x W x H mm) | 126.5 x 70 x 11.8 |
Package Includes:

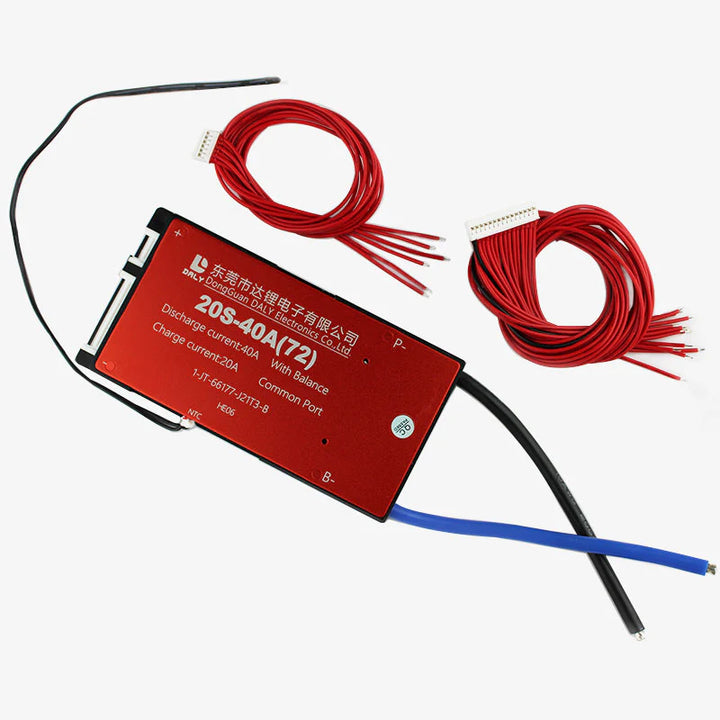

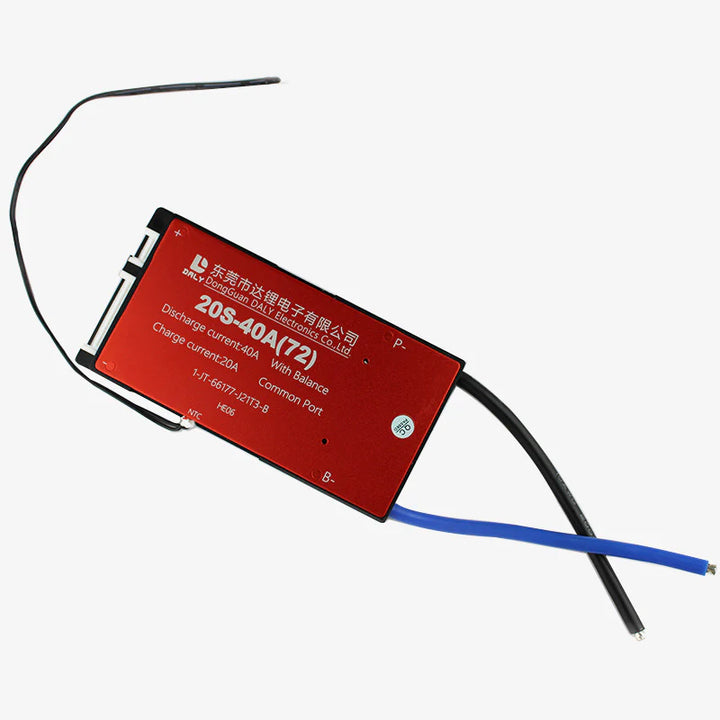

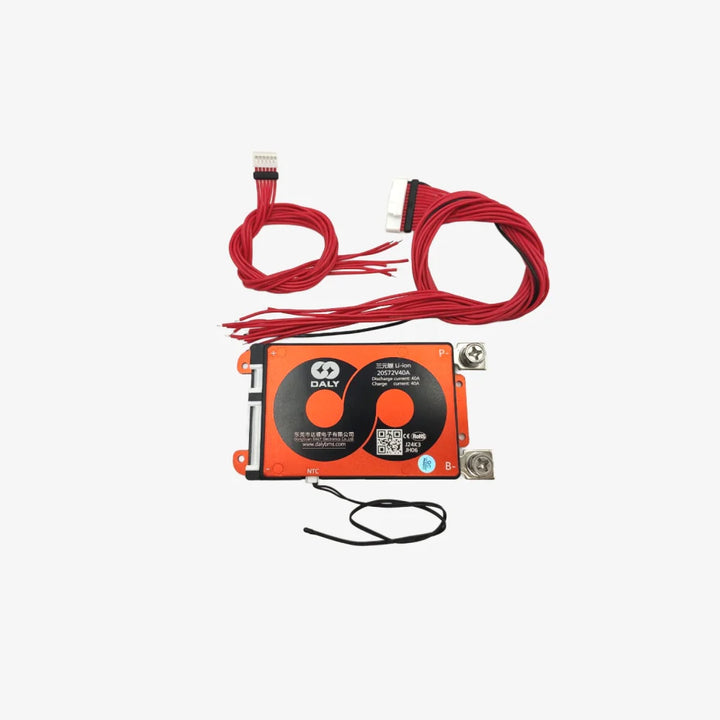

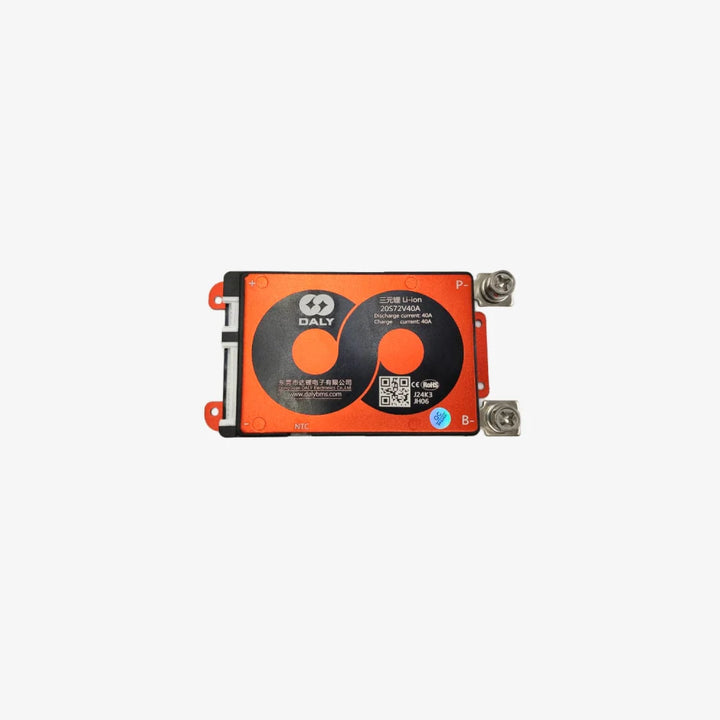

1 x Daly 20S 72V 40A Battery Management System (BMS)
