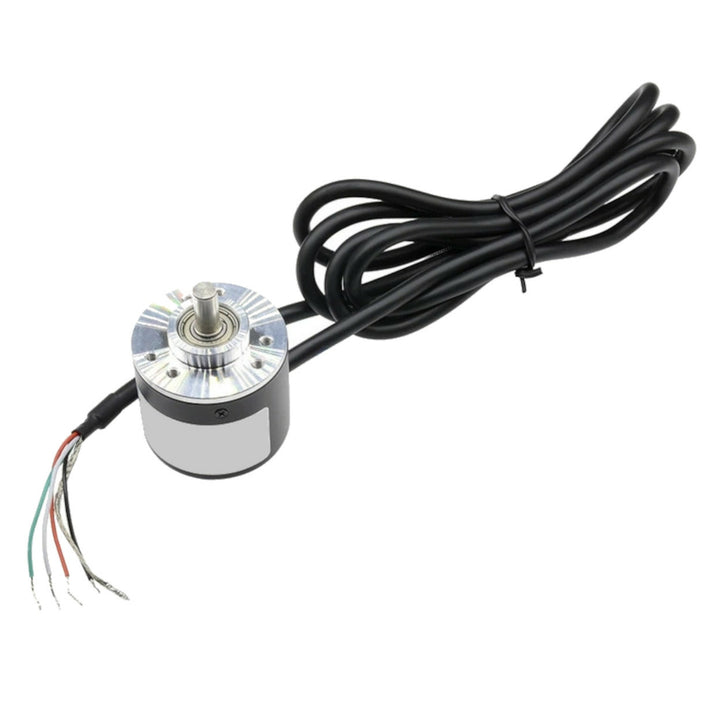

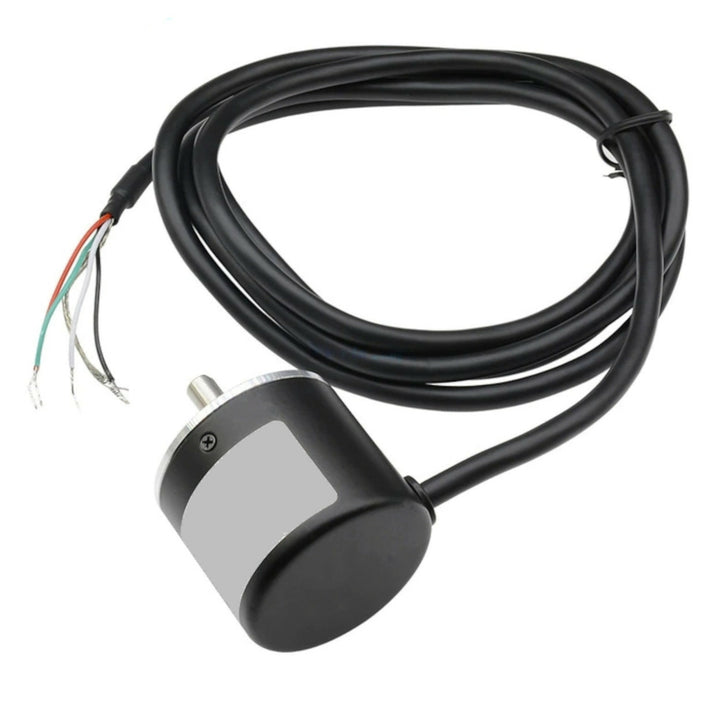

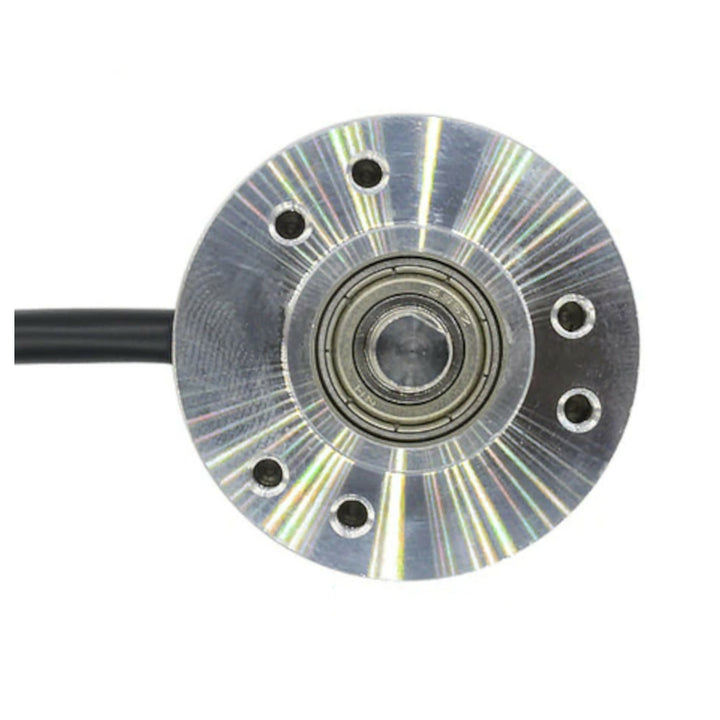

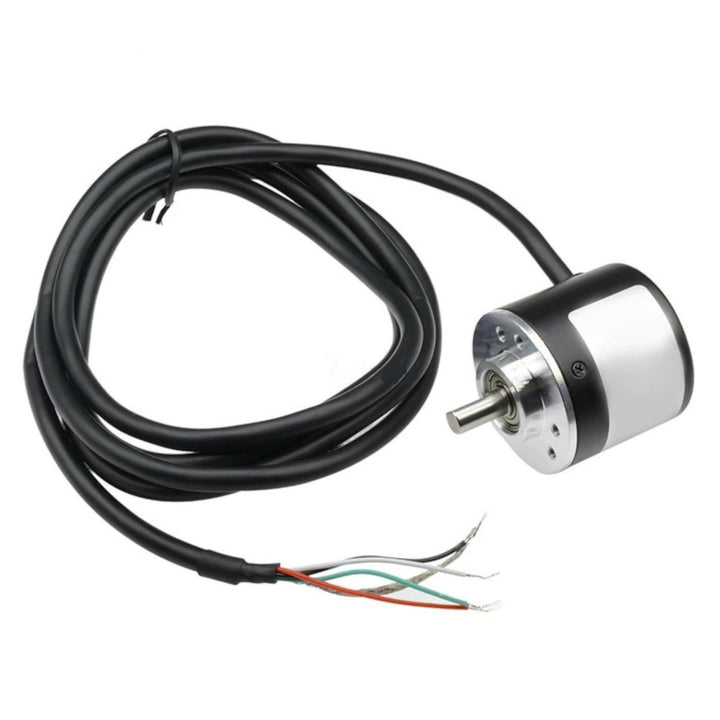

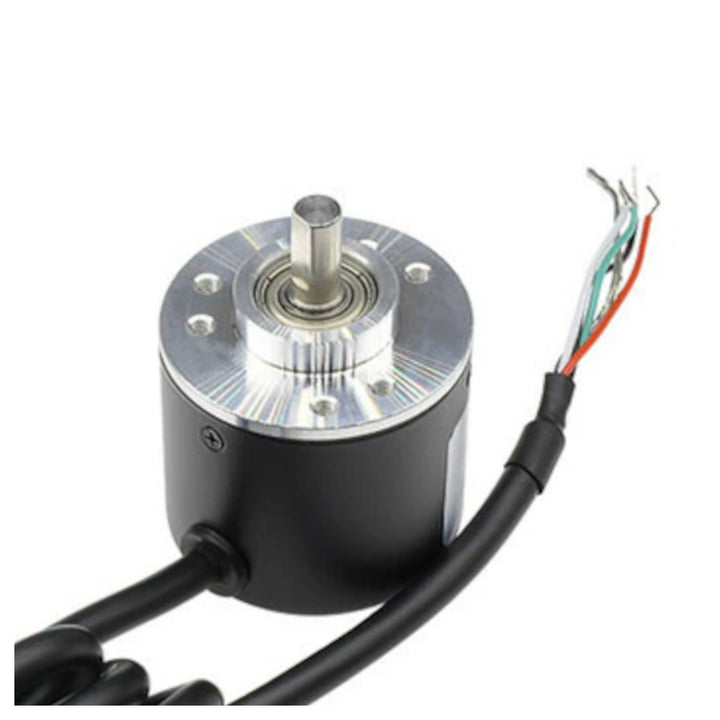

DC5-24V 1800 Pulses Incremental Photoelectric Rotary Encoder

Rs. 949.00 Rs. 869.00 SAVE 8%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE02489
Availability : In Stock Pre order Out of stock
Categories: Rotary Encoder
Description

The DC5-24V 1800 Pulses Incremental Photoelectric Rotary Encoder is a high-precision electromechanical device that converts the rotational movement of a shaft into electrical pulses. Operating within a voltage range of 5V to 24V DC, this encoder generates 1800 pulses per revolution, offering detailed feedback for applications requiring fine resolution. Utilizing photoelectric sensing technology, the encoder generates pulses by detecting interruptions in light as the shaft rotates. This non-contact method ensures a long lifespan and high reliability in industrial environments. With A/B output channels and an optional Z-channel for reference, this encoder can provide feedback on both rotational direction and speed. It is commonly used in industrial automation, motor control systems, and robotics, offering precise position and speed measurements in various machinery and systems.

Features:

  • High Pulse Resolution: 1800 pulses per revolution for accurate position feedback.
  • Wide Voltage Range: Operates with 5V to 24V DC, offering flexibility.
  • Photoelectric Sensing: Non-contact technology for improved durability and reliability.
  • Bidirectional Feedback: Provides direction and speed measurement with A/B channels.
  • Compact Design: Ideal for space-constrained applications in machinery.
  • Flexible Shaft Options: Available with various shaft diameters (6mm, 8mm, 10mm) and mounting options.

Application:

  • Industrial Automation: Used in systems for precise motor control, robotics, and CNC machines.
  • Position Tracking: Ideal for position feedback in conveyor belts, rotary tables, and material handling equipment.
  • Speed Measurement: Used to measure RPM in motors, turbines, and other rotating equipment.
  • Motor Control: Provides feedback for stepper motors, servo motors, and other motion control systems.
  • Test Systems: Applied in lab setups and automated testing systems to track rotation and position accurately.

Specification:

Parameter Specification
Power Supply DC 5V to 24V
Pulses per Revolution (PPR) 1800 pulses per revolution
Output Type Incremental, A/B channels (optional Z-channel)
Sensing Technology Photoelectric (light interruption for pulse generation)
Shaft Type Solid shaft, Hollow shaft (depending on model)
Shaft Diameter 6mm, 8mm, 10mm (depending on the model)
Mounting Type Flange mount, Shaft mount (varies by model)
Housing Material Metal, Plastic
Operating Temperature -20°C to +70°C
Protection Rating IP40 (Standard), IP65 (Optional, depending on model)
Weight 50g to 200g (depending on the model)
Dimensions Diameter: 40mm to 60mm, Height: 25mm to 40mm (varies)
Signal Output A, B (quadrature), optional Z (reference pulse)
Frequency Response Typically up to 100 kHz or more (depending on model)
Rotation Direction Bidirectional (can detect direction via A/B channels)

Package Include:-

1xDC5-24V 1800 Pulses Incremental Photoelectric Rotary Encoder
