Heatsink for X4 Single-Board Computer Raspberry Pi Alternative Specialized for Radxa X4
Including GST (No Hidden Charges)
Checkout securely with
The Heatsink for X4 is a highly efficient thermal management solution, specifically designed for the Radxa X4 single-board computer. The Radxa X4 is a powerful, versatile board often used as a more robust alternative to the Raspberry Pi for various computing projects. Due to its increased processing capabilities, the Radxa X4 may generate significant heat, especially during intensive tasks or prolonged use. This makes effective cooling crucial to ensure stable performance, prevent thermal throttling, and prolong the lifespan of the hardware.
This heatsink kit is engineered with high-quality materials to provide optimal cooling performance while maintaining ease of installation. Whether you are using your Radxa X4 for DIY projects, home automation, media servers, or other advanced applications, this cooling solution ensures that your board operates within safe temperature limits.
Quick and Easy Installation
-

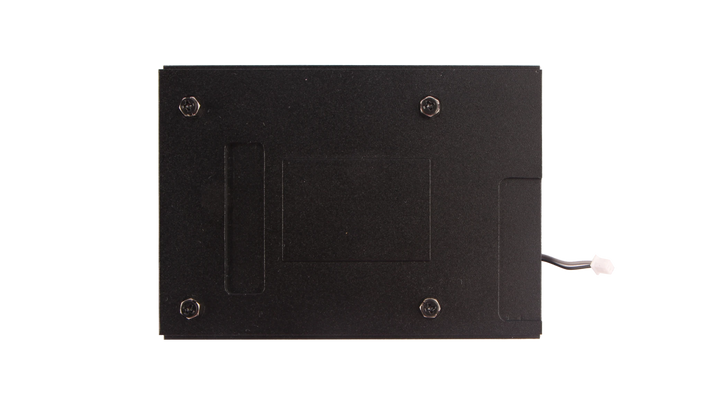

First, install the M2.5x3+3 copper pillar and thermal silicone sheet in the specified positions.
Please note: When installing the thermal silicone sheet, remove the protective film from one side and gently place it on the SoC of the heatsink. Then, lightly press the sheet to ensure it adheres to the heatsink. Finally, carefully remove the protective film from the other side.
-

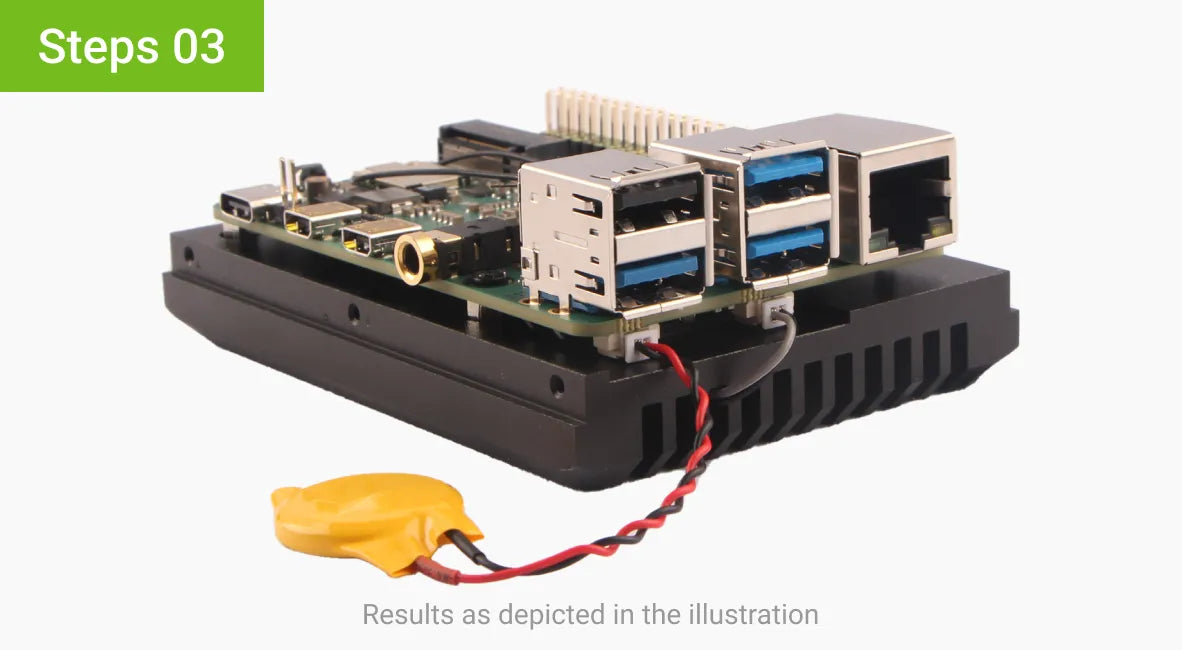

Next, install the Radxa X4 and secure it with 4 CM2.5x3 screws.
-
Then, connect the fan interfaces.
-

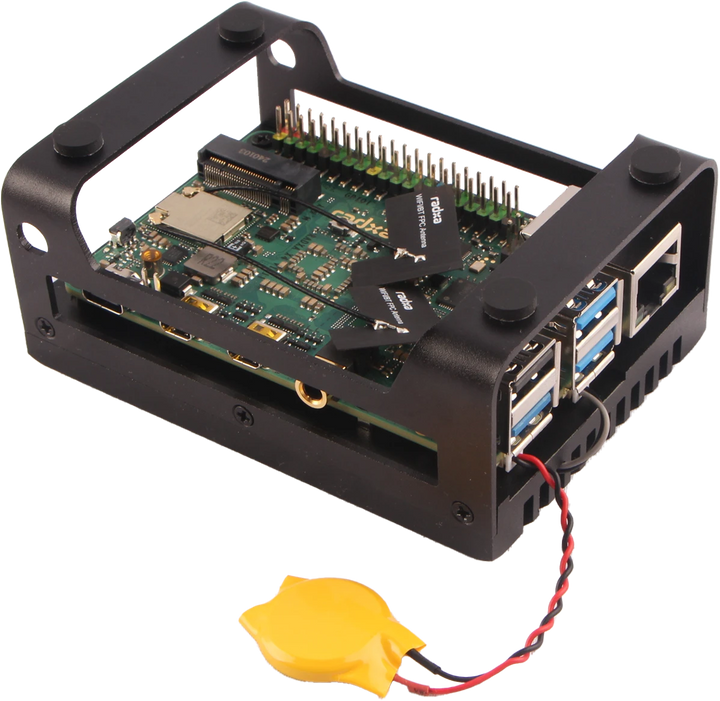

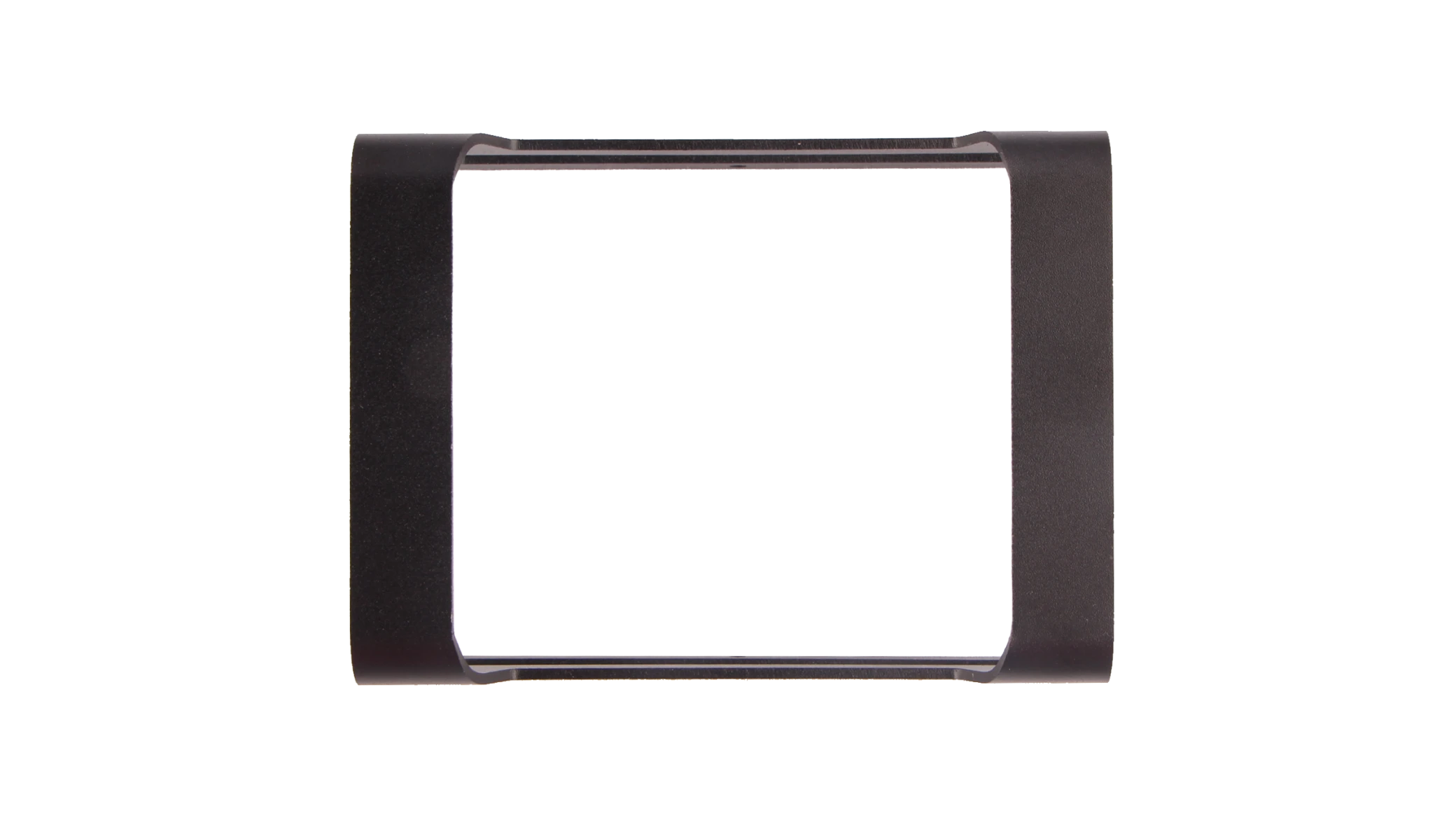

Finally, secure the heatsink bracket with six KM2x4 screws; attach the Anti-Slip Round Silicone Pads to the heatsink bracket.

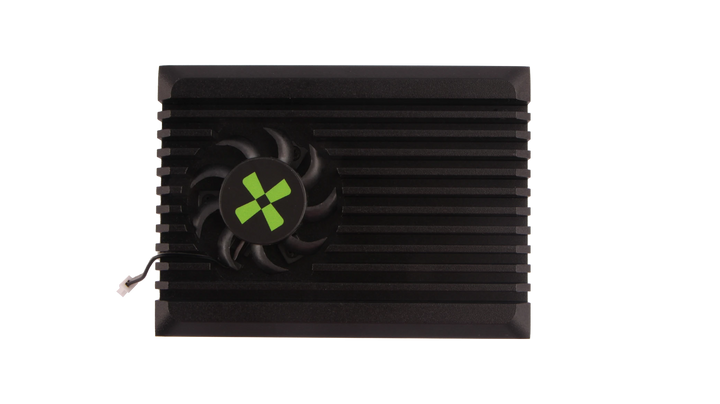

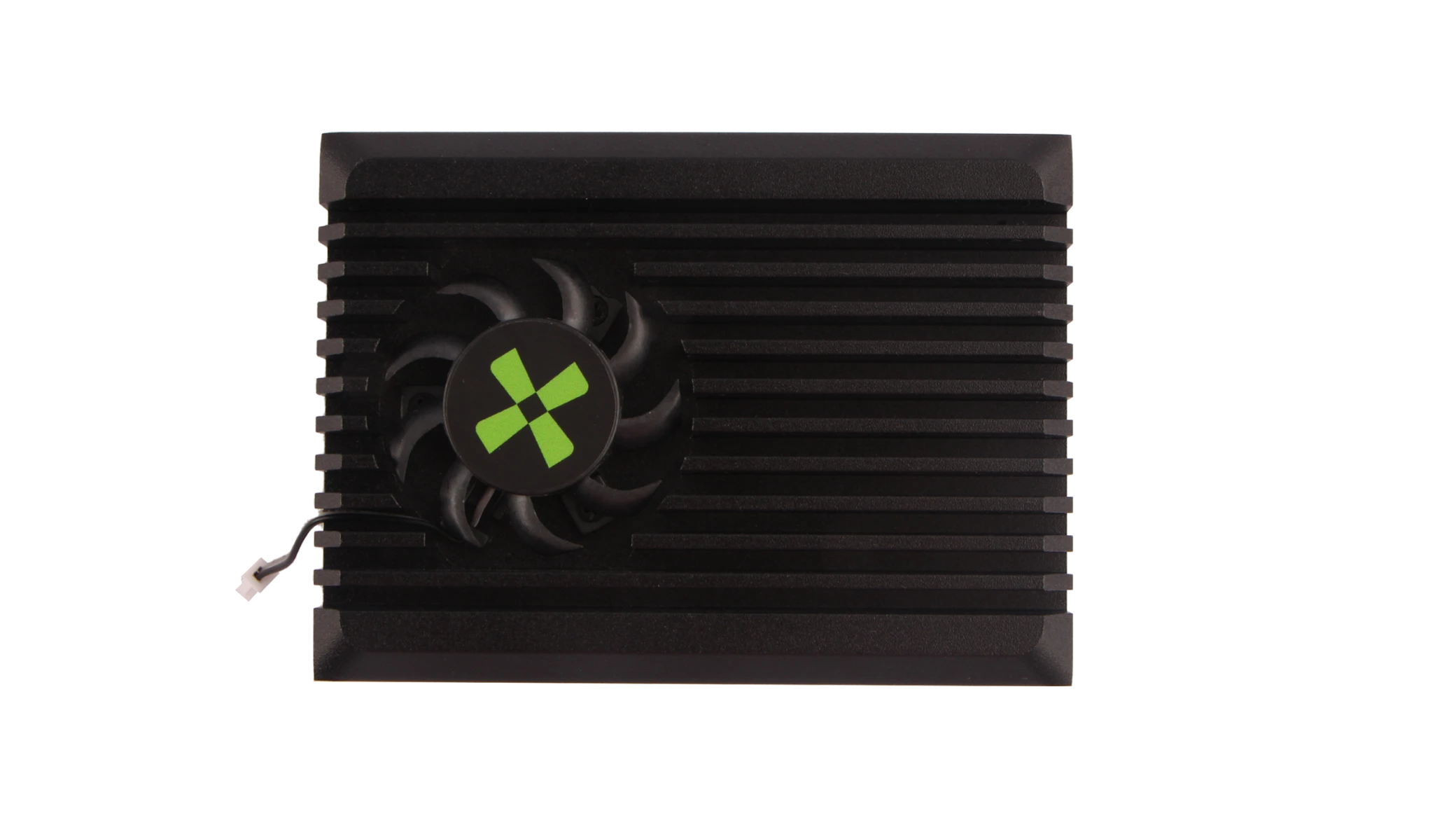

- High-Quality Aluminium Alloy: Ensures superior heat dissipation, keeping your Radxa X4 at optimal temperatures.
- Thermally Conductive Silicone Sheet: Enhances contact between the heatsink and the device for improved thermal management.

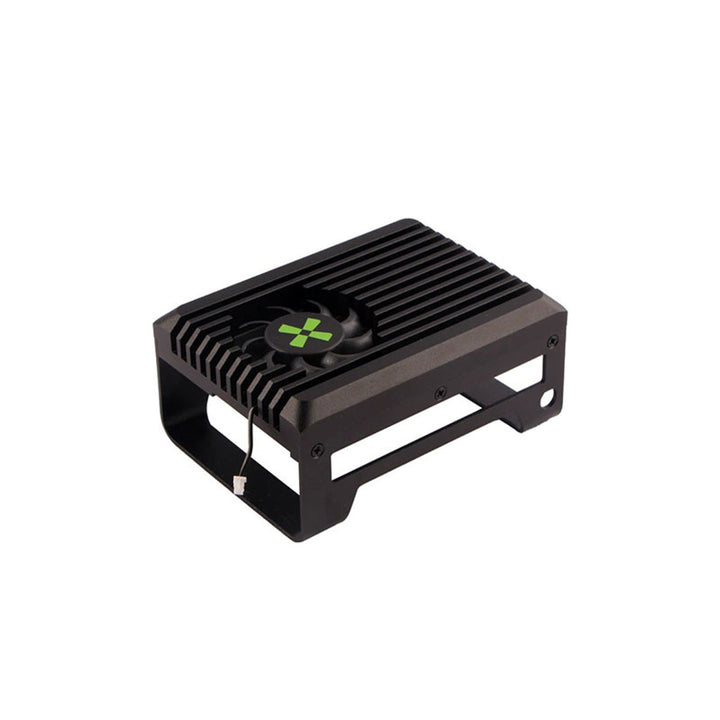

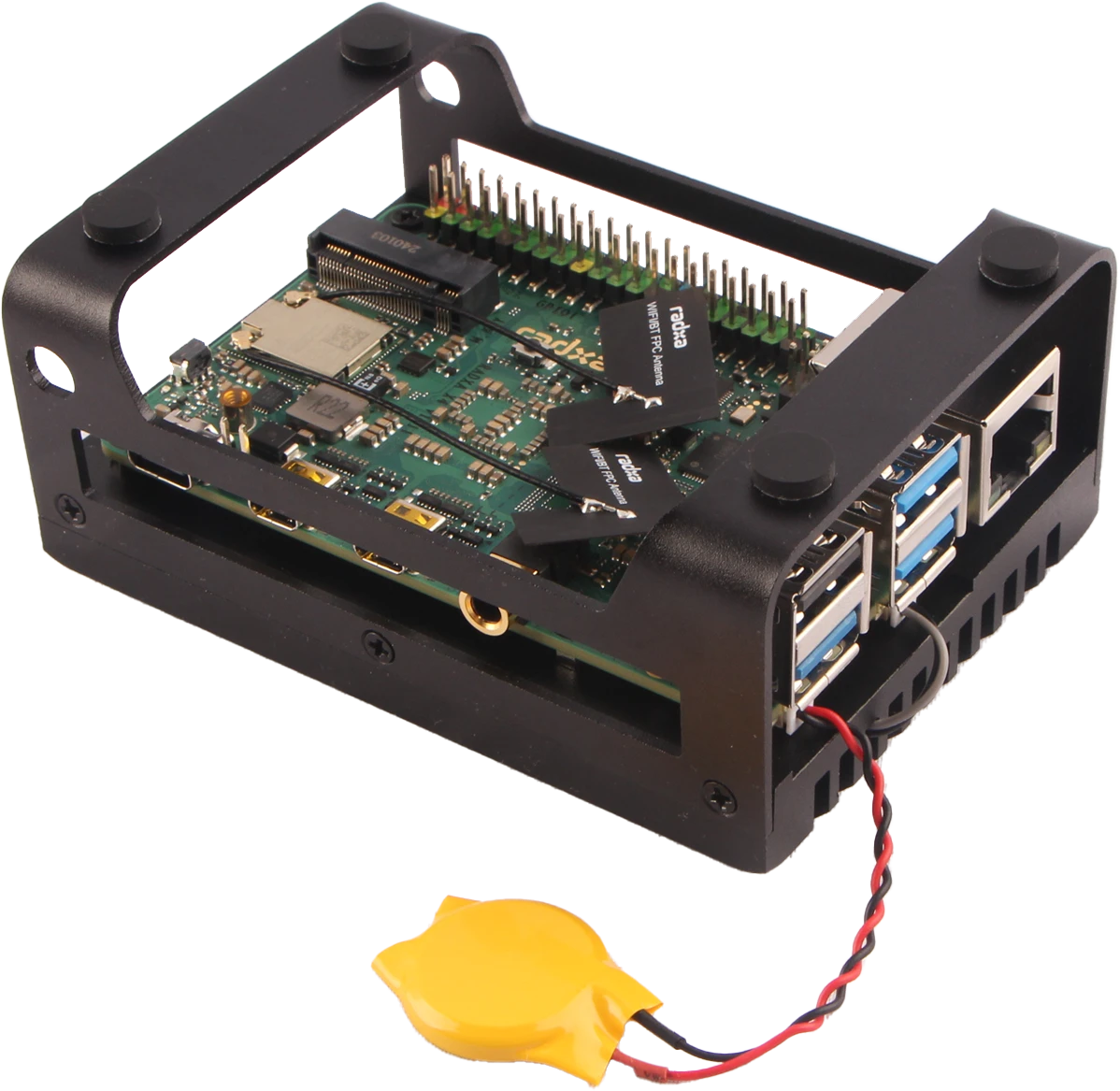

- Full Metal Heatsink Case: Durable and designed to fit perfectly with the Radxa X4, providing both protection and enhanced cooling.
- Precision Engineering: Includes anti-slip silicone pads and secure mounting hardware for a stable and secure installation.
-
Tailored for Radxa X4: Specifically designed to fit the Radxa X4, ensuring easy installation and reliable performance.
-
Complete Package: Comes with all necessary accessories, including copper pillars and screws, for a hassle-free setup.
Specifications :-
| Specification | Details |
|---|---|
| Compatibility | Radxa X4 |
| Material | Aluminum Alloy Case |
| Dimensions | 97 x 75 x 72 mm |
| Speed | 4000 rpm ± 10% |
| Connector | 2-Pin 1.25mm Pitch Connector |
| Input Voltage | 5V DC |

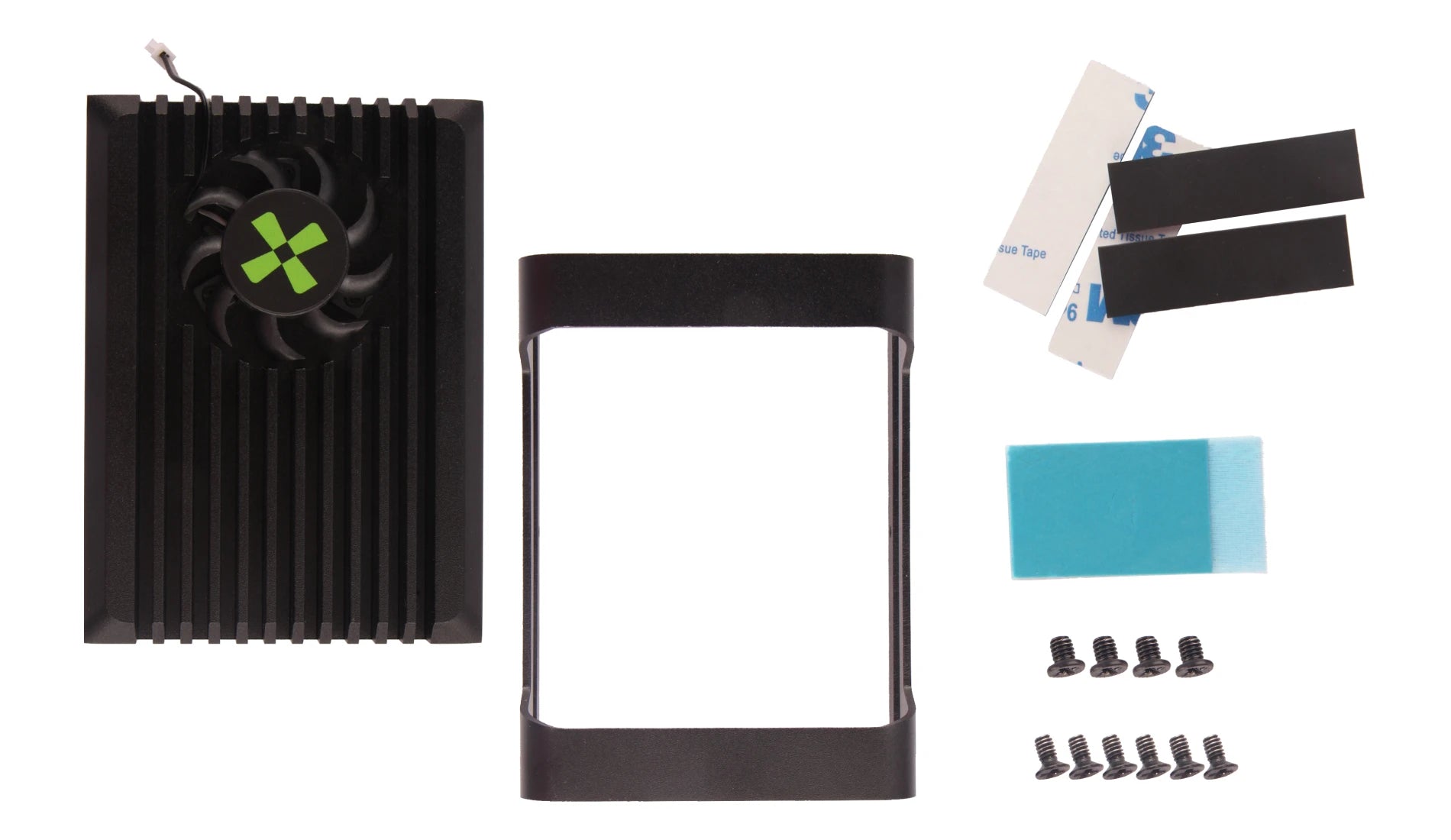

Package Include:-
1xRadxa Heatsink for X4
1xThermally Conductive Silicone Sheet
1xAnti-Slip Round Silicone Pads
4x M2.5x3+3 Copper Piller to prop up Radxa X4
4x CM2.5x3x4 Screws to fix Radxa X4
6x KM2x4x3.5 Screws to fix Heatsink Bracket
