HQD Spindle Motor 0.8 KW Spindle Air Cool GDF65 24Z/0.8 KW 220V 3.0A 24000RPM - Round Body

Rs. 15,500.00 Rs. 13,250.00 SAVE 15%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE02542
Availability : In Stock Pre order Out of stock
Categories: Spindle Motors
Description

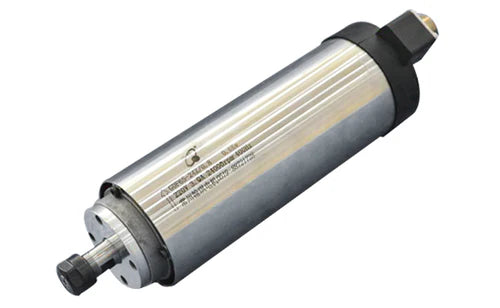

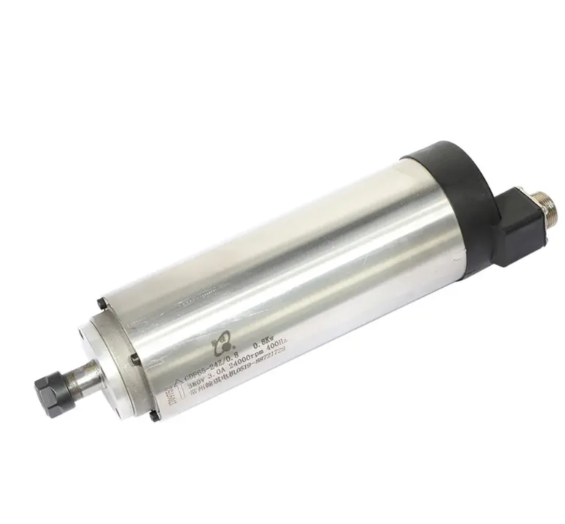

The HQD 0.8 KW Spindle Motor (GDF65 24Z) is a high-performance, air-cooled motor designed for precision applications. Operating at a maximum speed of 24,000 RPM, it delivers stable and efficient power for various industrial processes such as CNC milling, engraving, and cutting. With its round body design, this motor is compact and easy to integrate into a variety of systems. The motor is air-cooled, ensuring effective heat dissipation and longevity during continuous operation.

Short Application

This spindle motor is ideal for use in CNC routers, engraving machines, woodworking, metalworking, and other precision machining tasks that require high-speed, stable performance.

Short Features

  • Air-cooling system for efficient temperature control.
  • High-speed performance up to 24,000 RPM.
  • Compact round body design for easy installation.
  • Durable with reliable long-term operation.
  • Low maintenance with efficient power consumption.

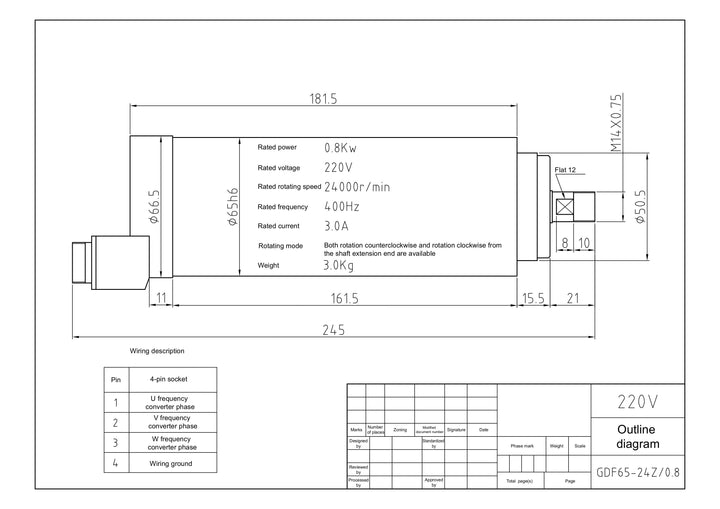

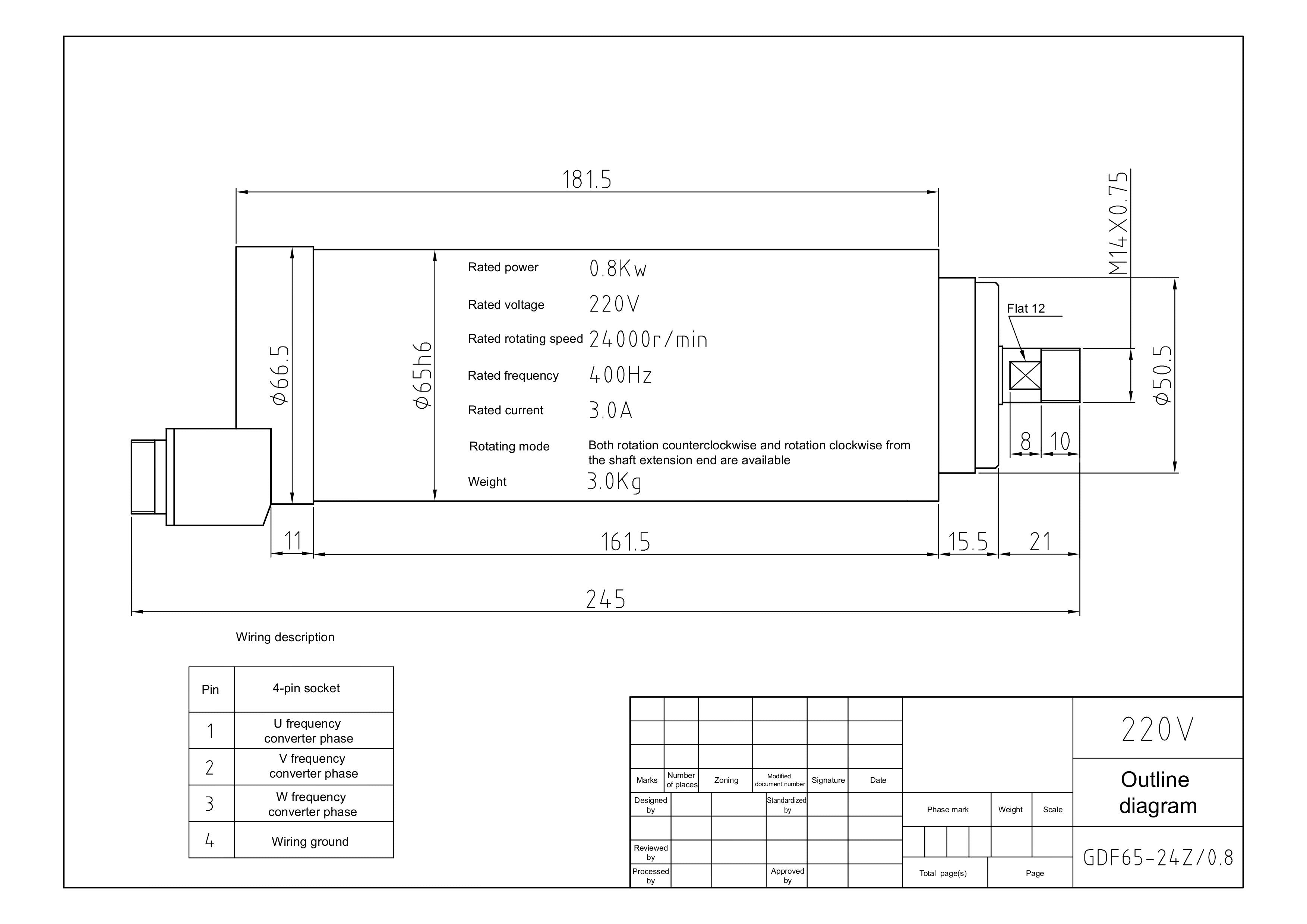

DATA SHEET:- CLICK HERE

Specifications

Feature Specification
Rotating Speed 24,000 RPM
Rated Power 0.8 KW
Torque 0.22 Nm
Voltage 220/380V
Current 3.0/1.6 A
Frequency 400 Hz

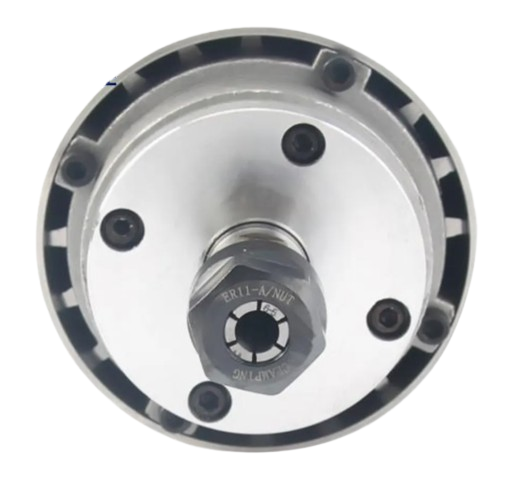

Connection of Spindle End ER11-Φ3.175-Φ7.0
Cooling Type Water cooling
Lubrication Grease
Bearing No. 27002C P4, 27000C P4
Weight 3.0 Kg

Package Includes

  • 1 x HQD 0.8 KW Spindle Motor (GDF65 24Z)
