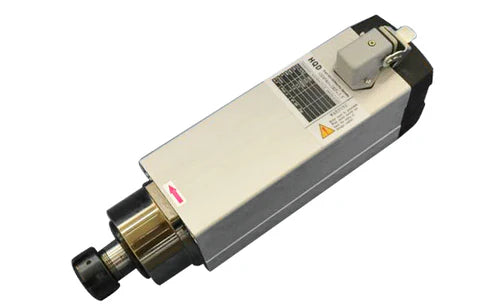

HQD Spindle Motor 3.5KW - ER25 Spindle Air Cool GDF46-18Z/3.5 220V 12A 18000RPM - Square Body

The HQD Spindle Motor 3.5KW - ER25 Spindle (GDF46-18Z/3.5) is a high-performance motor built for industrial-grade CNC and precision machining applications. With a 3.5 KW rated power, this motor can reach speeds of 18,000 RPM or 21,000 RPM, making it suitable for high-speed cutting, milling, and engraving. The ER25 collet allows for tools with diameters from Φ3.175 to Φ16, offering excellent versatility. The motor features water cooling for consistent thermal performance during long operating periods. With grease lubrication and P4 grade bearings, it is designed for minimal maintenance and extended durability. Its square body design makes it easy to mount on a variety of CNC machines and routers.

Short Application

This spindle motor is ideal for CNC routers, milling machines, engraving machines, and precision machining applications, especially in metalworking, woodworking, plastics, and composite materials.

Short Features

• 3.5 KW rated power for robust performance in demanding applications.
• ER25 collet supports a tool range of Φ3.175 to Φ16.
• Water cooling system for enhanced heat dissipation during extended use.
• Grease lubrication for reduced maintenance.
• High-speed operation with 18,000 RPM or 21,000 RPM for precision tasks.
• Square body design for easy installation and integration into CNC systems.
• P4 precision bearings for smooth and stable operation.

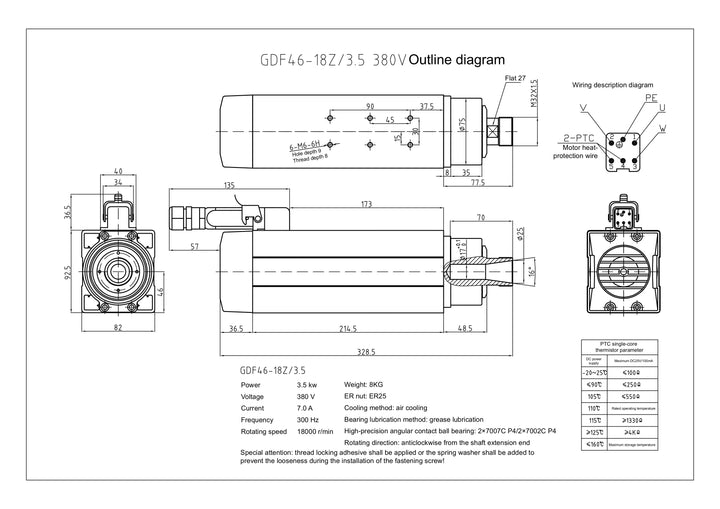

DATA SHEET:- CLICK HERE

Specifications

Package Includes

• 1 x HQD 3.5 KW Spindle Motor (GDF46-18Z/3.5)
