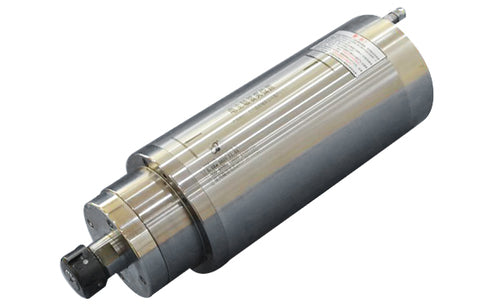

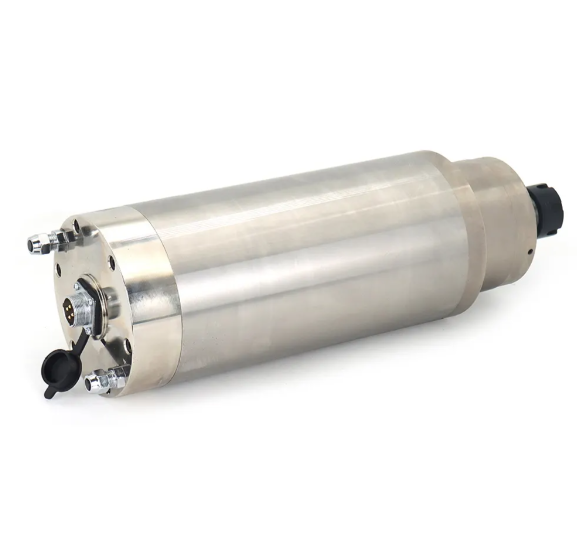

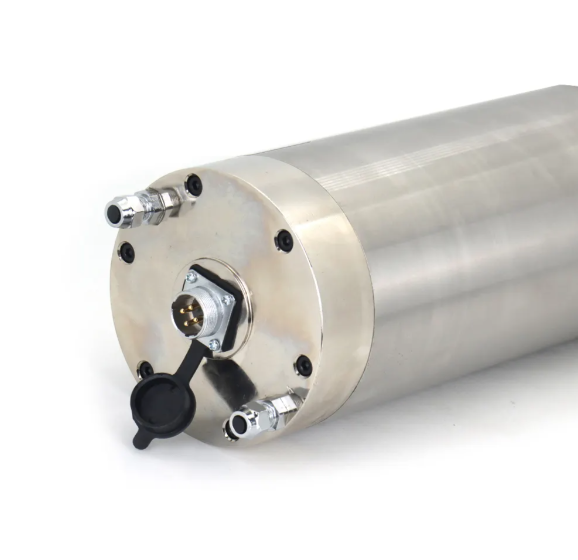

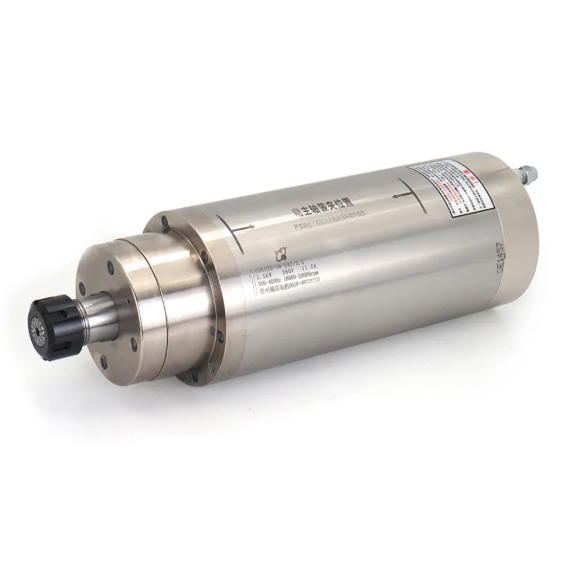

HQD Spindle Motor 5.5 KW Spindle Water Cool GDK125-18-24Z/5.5 KW 380V 11A 18000-24000RPM 300-400HZ ER25 (WATER COOL)
Including GST (No Hidden Charges)
Checkout securely with
The HQD GDK125-18-24Z Spindle Motor is a powerful, water-cooled motor specifically designed for high-performance CNC applications that require stable, high-speed operations. With a 5.5 kW rated power output and a speed range of 18,000 to 24,000 RPM, this motor is built for precision and durability. It operates at 380V and draws 11A of current, making it ideal for heavy-duty machining and manufacturing tasks such as milling, engraving, and cutting in metalworking and other industrial settings.
The water cooling system ensures that the motor remains at optimal operating temperatures, preventing overheating during long hours of use. The motor features an ER25 chuck, making it compatible with a wide range of tools. With its solid build, advanced cooling, and precision engineering, the GDK125-18-24Z motor is the perfect choice for industries demanding high-speed, high-accuracy machining.
Short Application
- CNC Routers and Machining Centers: High-speed cutting, milling, and engraving for metal, plastic, and wood.
- Precision Drilling and Engraving: Ideal for intricate and detailed work that requires a stable spindle motor.
- Metalworking: For heavy-duty tasks requiring high torque and precision under extended operation periods.
- Woodworking and Composites: Cutting and shaping of a variety of materials with high speed and accuracy.
Short Features
- High Power: Delivers 5.5 kW of power for demanding tasks.
- Water-Cooled: Efficient water cooling keeps the motor temperature stable, enabling longer operational periods.
- Wide Speed Range: Operates between 18,000 and 24,000 RPM for flexibility in different machining tasks.

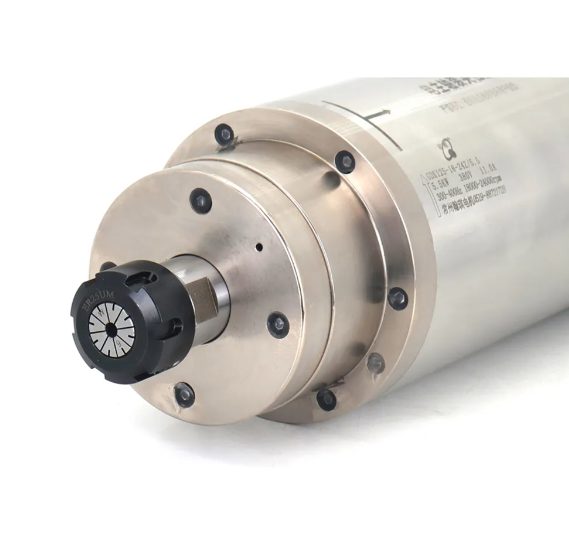

- Versatile Chuck: ER25 chuck provides compatibility with a wide range of cutting tools.
- Precise Performance: Stable performance in high-speed environments, with advanced cooling and lubrication.

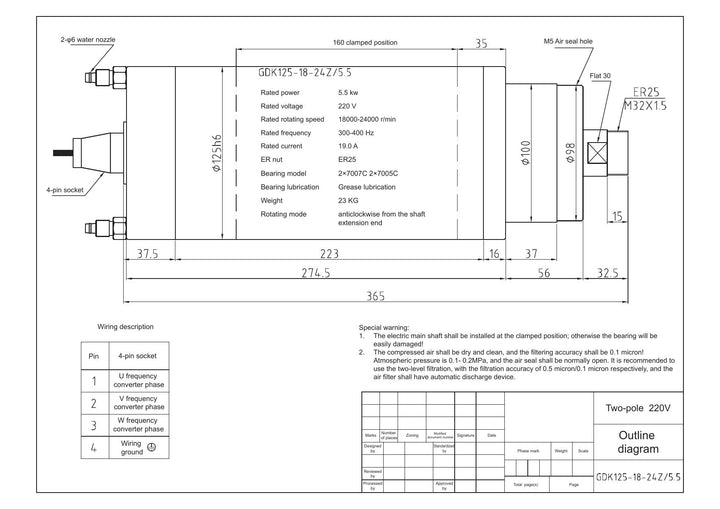

DATA SHEET:- CLICK HERE
Specification Table
| Feature | Specification |
|---|---|
| Model | GDK125-18-24Z |
| Power Output | 5.5 kW |
| Voltage | 380V |
| Current | 11A |
| Rotating Speed | 18,000 - 24,000 RPM |
| Frequency | 300 - 400 Hz |
| Chuck Type | ER25 |
| Cooling Method | Water Cooling |
| Lubrication Method | Grease |
| Phases | 3 |
| Dimensions | Φ125 mm (Diameter) x Length 240 mm (Approx.) |
| Bearing Type | High Precision Bearings (P4 Class) |
Package Includes
- 1 x HQD GDK125-18-24Z Spindle Motor (5.5 kW)
