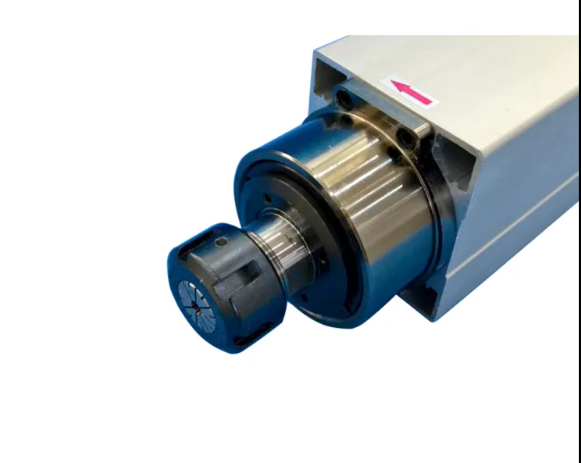

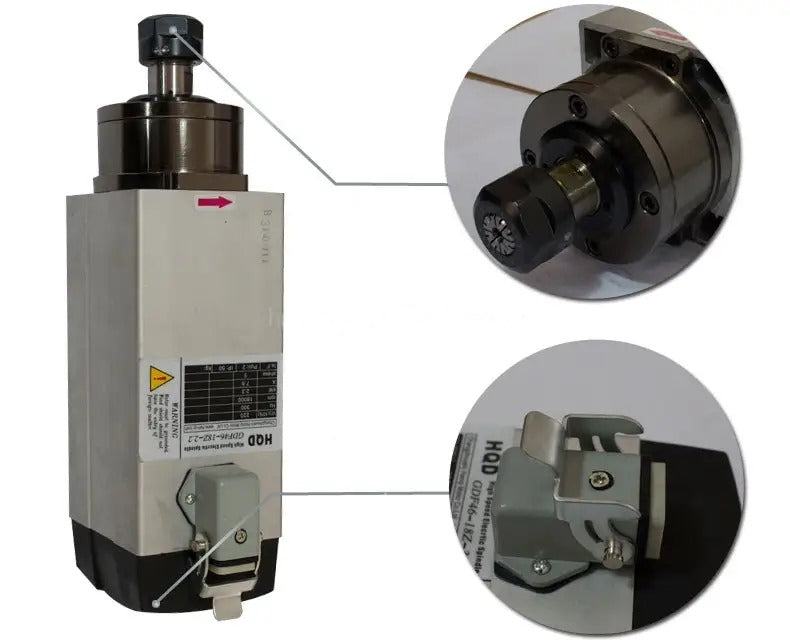

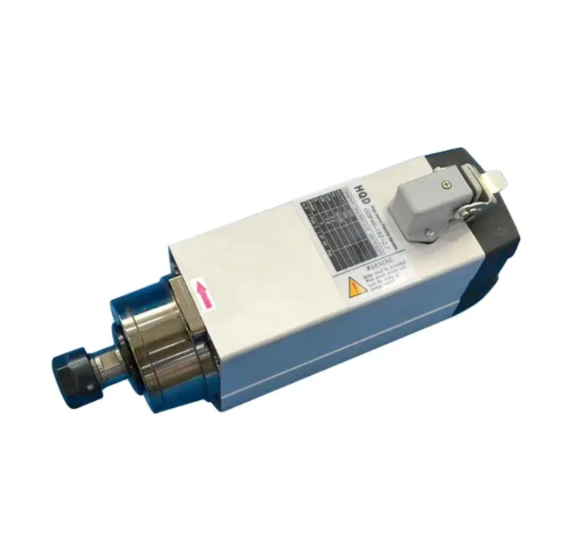

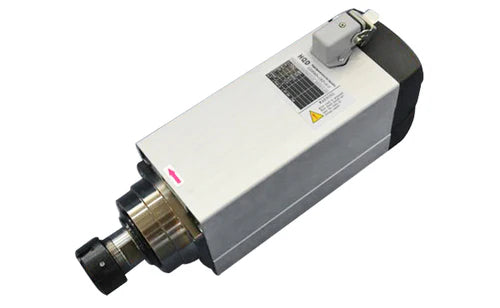

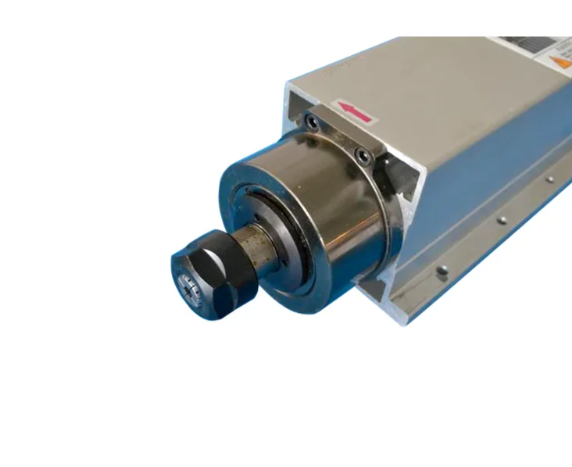

HQD Spindle Motor 6 KW Spindle Air Cool GDF60-18Z/6.0 KW 380V 12.6A 18000RPM - Square Body

The HQD Spindle Motor 6 KW - Air Cool GDF60-18Z/6.0 KW is a high-performance spindle motor designed for demanding CNC machining, milling, and engraving applications. With a powerful 6.0 KW rated power and a maximum speed of 18,000 RPM, this motor is ideal for tasks that require high torque and precision. The air-cooling system provides effective temperature management, ensuring the motor operates efficiently during long hours of work. The square body design allows for easy integration into CNC routers and other industrial machinery. This motor is perfect for metalworking, woodworking, and other material processing tasks requiring power, durability, and precision.

Short Application

This motor is suitable for CNC routers, milling machines, engraving machines, and other industrial machining applications, particularly in woodworking, metalworking, and plastics.

Short Features

• 6.0 KW rated power for robust performance in heavy-duty applications.
• Air cooling system for reliable performance even in demanding conditions.
• 18000 RPM max speed for efficient and precise cutting and milling.
• Square body design for easy mounting and integration into CNC machines.
• Low maintenance with grease lubrication.
• Durable construction with precision bearings for smooth operation.

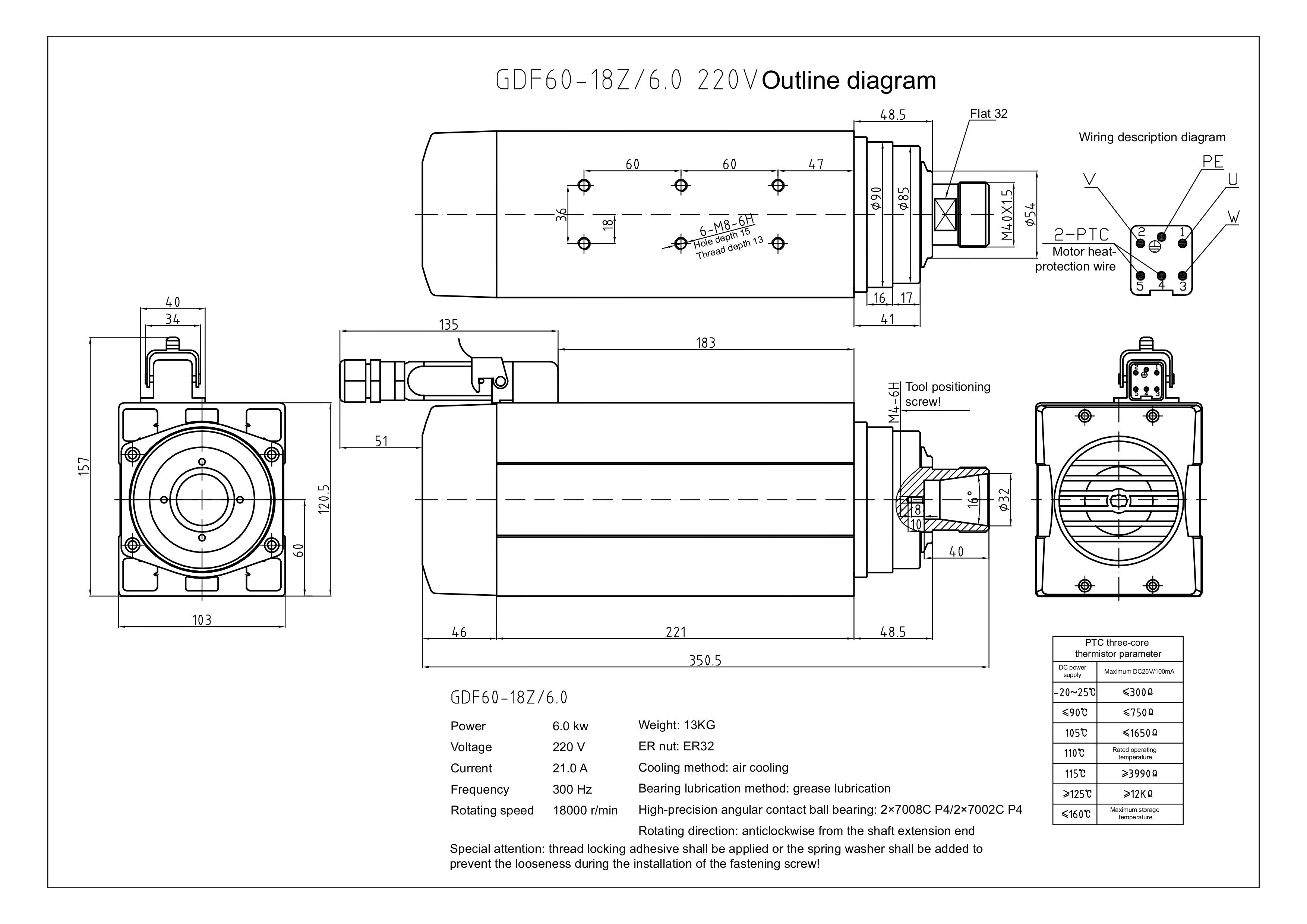

DATA SHEET:- CLICK HERE

Specifications

Package Includes

• 1 x HQD 6.0 KW Spindle Motor (GDF60-18Z/6.0 KW)
