JK86BLS84 48V Brushless DC Motor 330W 3000RPM 1.05N.m with Hall Sensor

Rs. 8,800.00 Rs. 6,500.00 SAVE 26%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE01020
Availability : In Stock Pre order Out of stock
Categories: BLDC Motors
Description

The JK86BLS84 48V Brushless DC Motor is a reliable and high-performance motor designed for applications that demand stable speed, efficient torque delivery, and long service life. With its 8-pole BLDC construction, this motor is built to provide smooth operation and dependable output for use in robotics, automation systems, conveyors, electric drive projects, and custom motion-control equipment.

Operating at 48V DC nominal voltage, the JK86BLS84 delivers 330W output power, 1.05 N-m rated torque, and 3000 RPM rated speed, making it suitable for both industrial and advanced DIY applications. It also features Hall sensor feedback wiring for accurate commutation and improved control when paired with a compatible BLDC motor driver. Its compact 85.8 mm frame size and standard mounting pattern make integration convenient in space-conscious designs.

Features

  • 48V brushless DC motor for efficient and long-lasting operation

  • 330W output power for reliable motion-control performance

  • 3000 RPM rated speed with 3700 RPM no-load speed

  • 1.05 N-m rated torque for stable mechanical output

  • 8-pole BLDC design for smooth and efficient running

  • Integrated Hall sensor support for accurate motor commutation

  • Compact 85.8 mm frame size for easier installation

  • Class B insulation for dependable electrical performance

  • Suitable for robotics, conveyors, automation systems, and electric drive projects

Applications

The JK86BLS84 BLDC Motor is suitable for a wide range of applications, including:

  • Robotics and robotic drive systems

  • Industrial automation equipment

  • Conveyor and material-handling systems

  • Electric drive and motion-control assemblies

  • CNC and custom machinery projects

  • Laboratory and test equipment

  • DIY engineering and mechatronics projects

Specifications

  • Model: JK86BLS84

  • Motor Type: Brushless DC Motor (BLDC)

  • Number of Poles: 8

  • Nominal Voltage: 48 VDC

  • Phase to Phase Resistance: 0.25 Ohms

  • No Load Speed: 3700 ±10% RPM

  • No Load Current: 2 A Max.

  • Rated Torque: 1.05 N-m

  • Rated Speed: 3000 ±10% RPM

  • Output Power: 330 W

  • Back EMF Constant: 12.9 V/kRPM

  • Torque Constant: 0.12 N-m/A

  • Insulation Class: B

  • Rotation: CW seen from lead end

Datasheet : Click Here

Connection Details

Hall Sensor / Signal Wiring

  • +5V: Red

  • Hall U: Yellow

  • Hall V: Green

  • Hall W: Blue

  • GND: Black

Motor Phase Wiring

  • Phase U: Yellow

  • Phase V: Green

  • Phase W: Blue

Cable Details

  • Hall sensor cable: UL1007, 26 AWG

  • Phase cable: UL1015, 18 AWG

  • Hall sensor supply voltage: +5 to +20 VDC

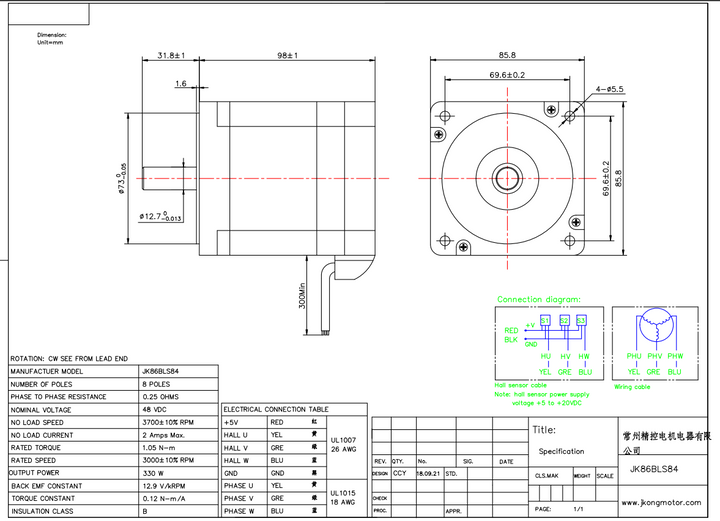

Dimensions

Unit: mm

  • Frame size: 85.8 x 85.8 mm

  • Motor body length: 98 ±1 mm

  • Front shaft extension length: 31.8 ±1 mm

  • Pilot / mounting register diameter: Ø73

  • Shaft diameter: Ø12.7

  • Front flange thickness / step: 1.6 mm

  • Mounting hole spacing: 69.6 ±0.2 mm

  • Mounting holes: 4 x Ø5.5 mm

  • Cable length: 300 mm minimum

Package Includes

  • 1 x JK86BLS84 48V Brushless DC Motor 330W 3000RPM 1.05N.m with Hall Sensor
