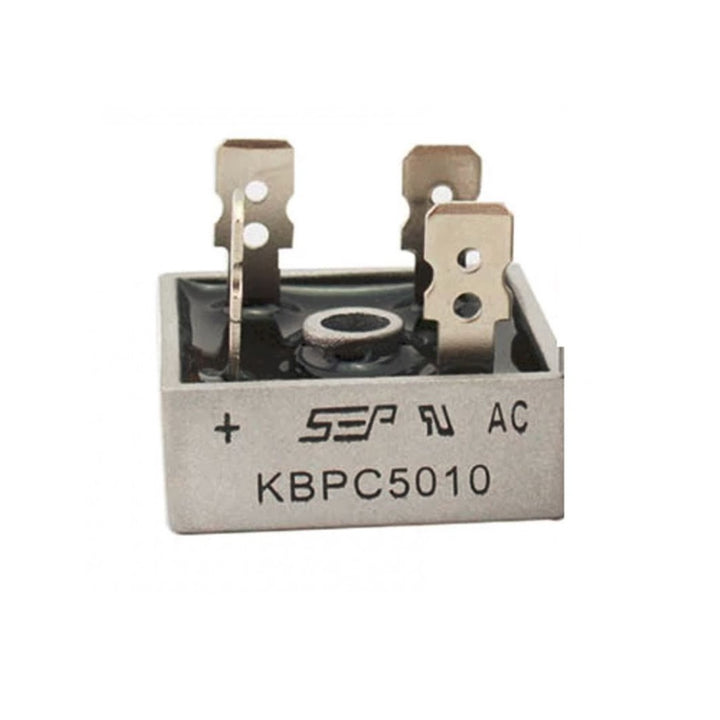

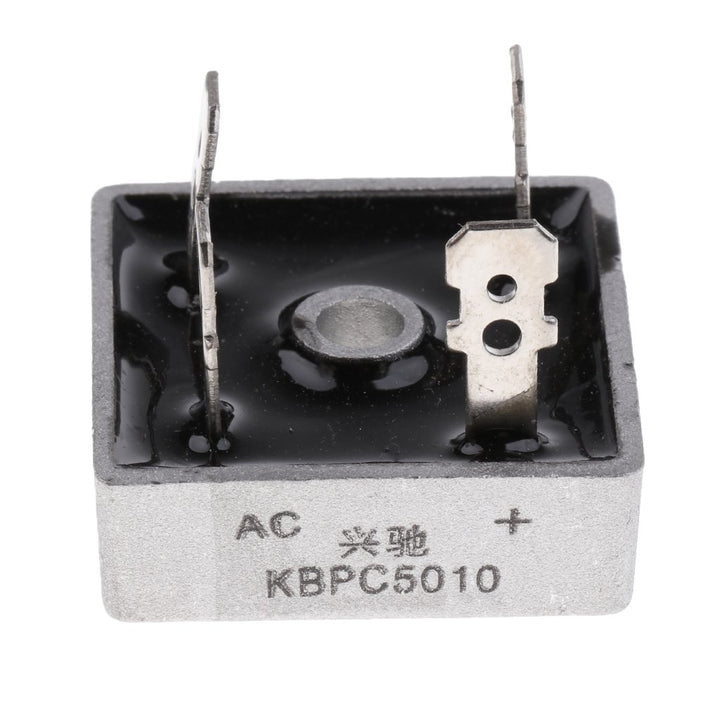

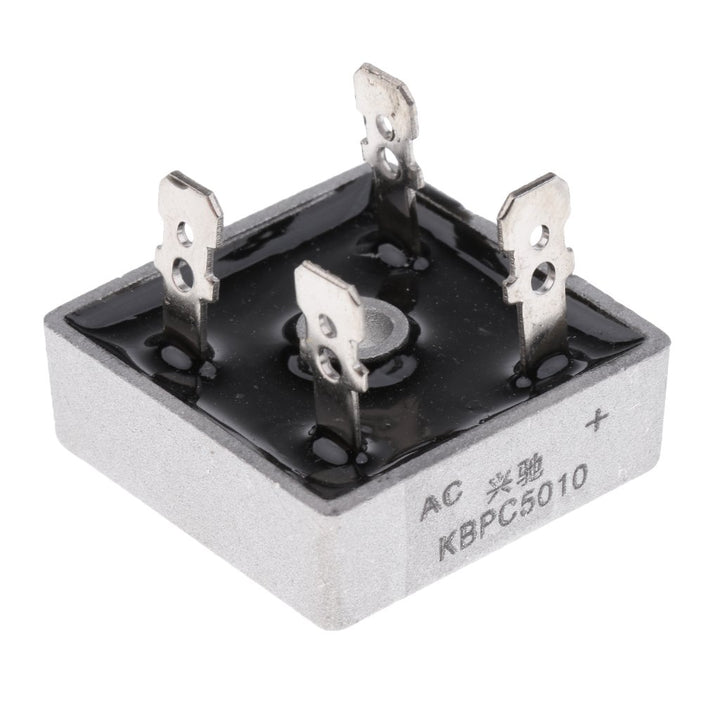

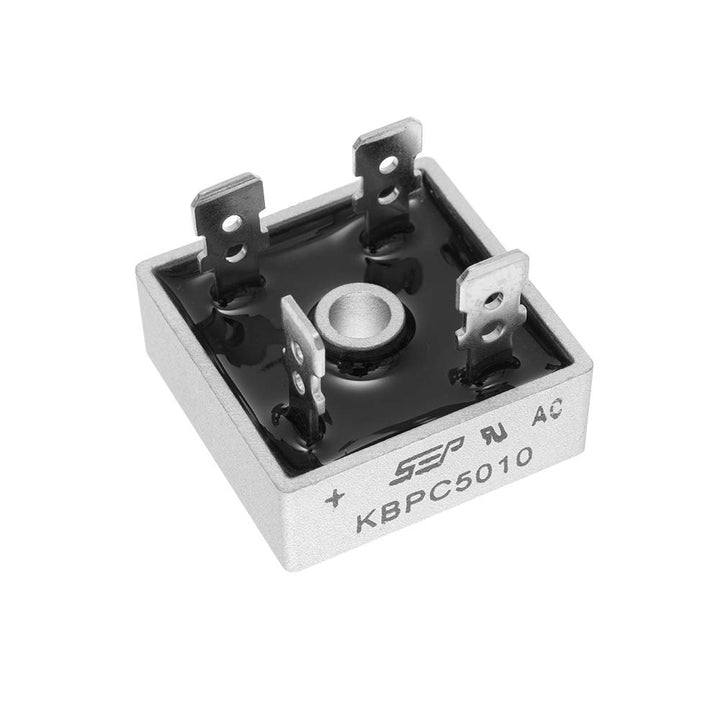

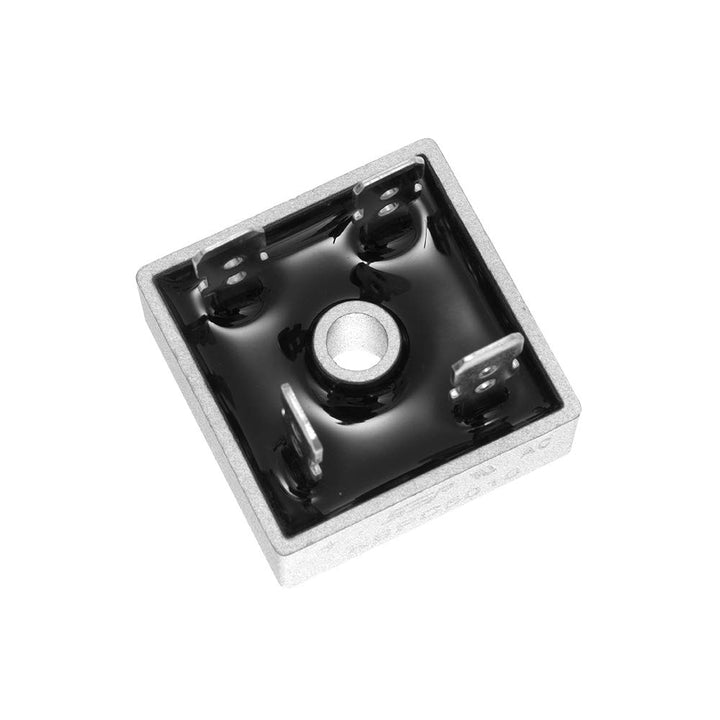

KBPC5010 50A 1000V Diode Bridge Rectifier

The KBPC5010 is a heavy-duty bridge rectifier designed to efficiently convert alternating current (AC) to direct current (DC). Built with four high-performance diodes in a durable metal case, this rectifier can handle up to 50A of current and withstand a peak reverse voltage of 1000V, making it suitable for high-power applications and industrial power supplies.

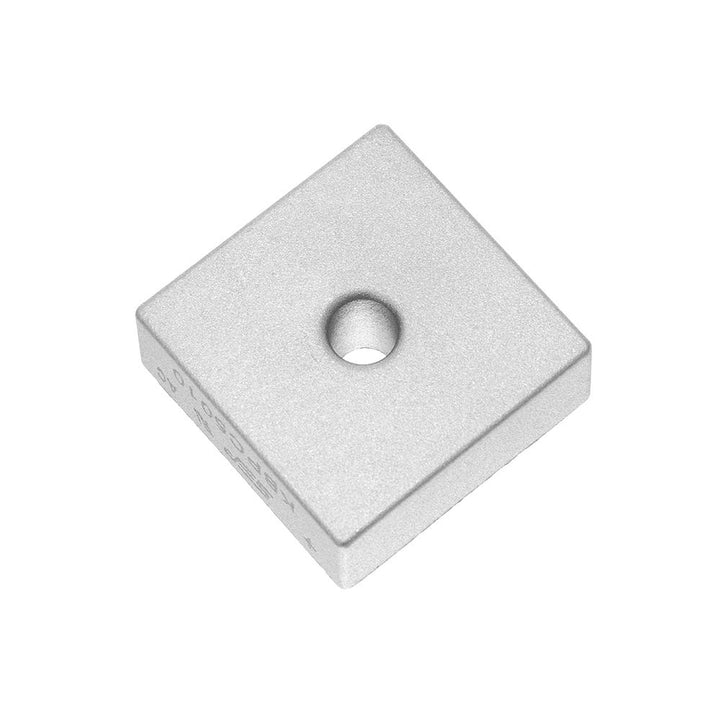

With its compact dimensions of 28.9 x 28.5 x 22 mm and a central mounting hole, the KBPC5010 is easy to integrate into your projects. It features 0.250″ quick disconnect terminals for secure and convenient wiring.

Engineered with low reverse leakage current, low power loss, and high efficiency, this rectifier also ensures maximum heat dissipation through its electrically isolated metal casing, providing long-term reliability even under heavy load conditions.

Ideal for use in AC/DC power supplies, motor drives, battery chargers, and other industrial equipment, the KBPC5010 is a trusted choice for robust rectification needs.

Applications

• AC to DC conversion in power supplies

• Motor drives and industrial equipment

• Battery charging circuits

• High-current rectification projects

• UPS and inverter systems

Features

• High current capacity: up to 50A

• Withstands up to 1000V reverse voltage

• Electrically isolated metal case for safe heat dissipation

• Compact design with mounting hole for easy installation

• Low reverse leakage and low power loss

• 0.250″ quick disconnect terminals for reliable connections

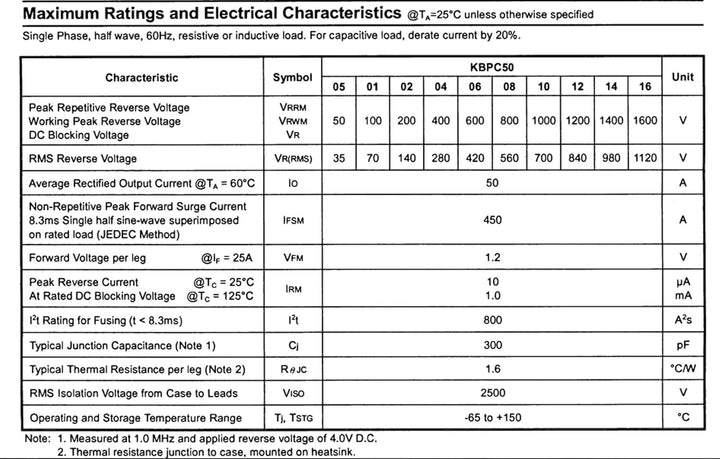

Specifications
