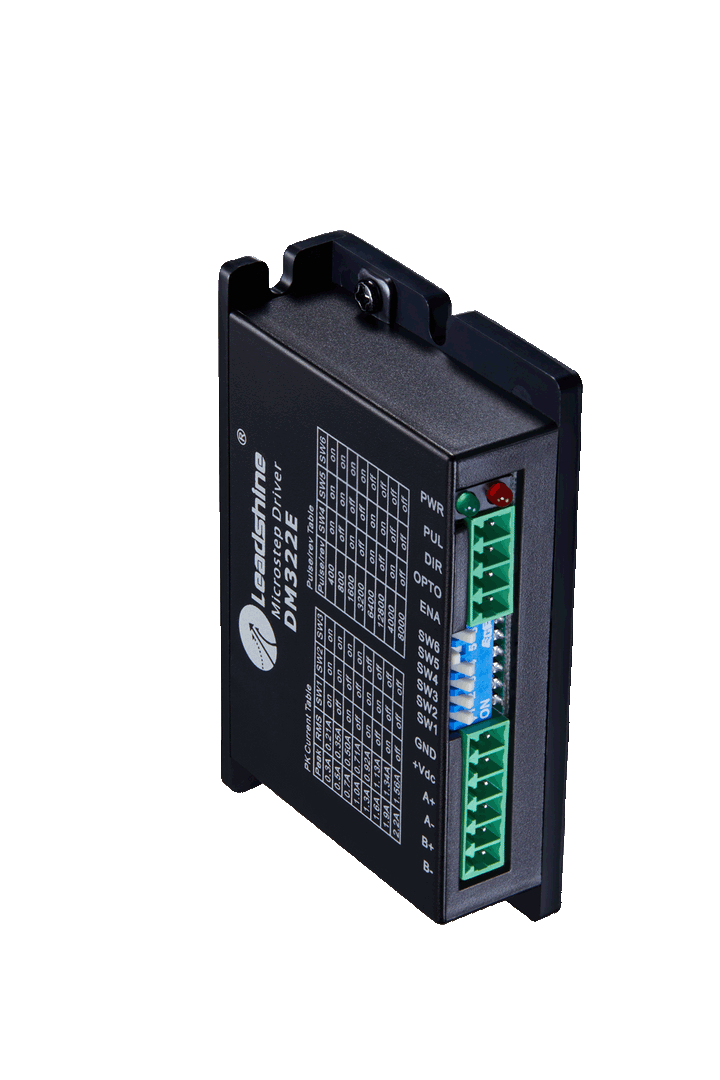

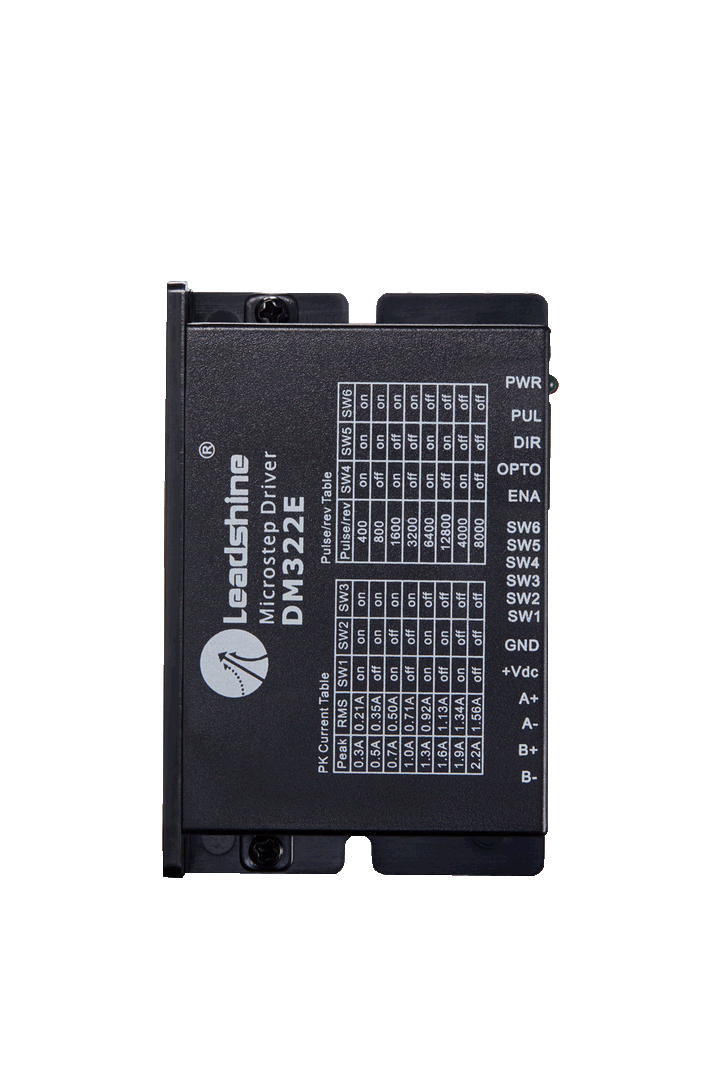

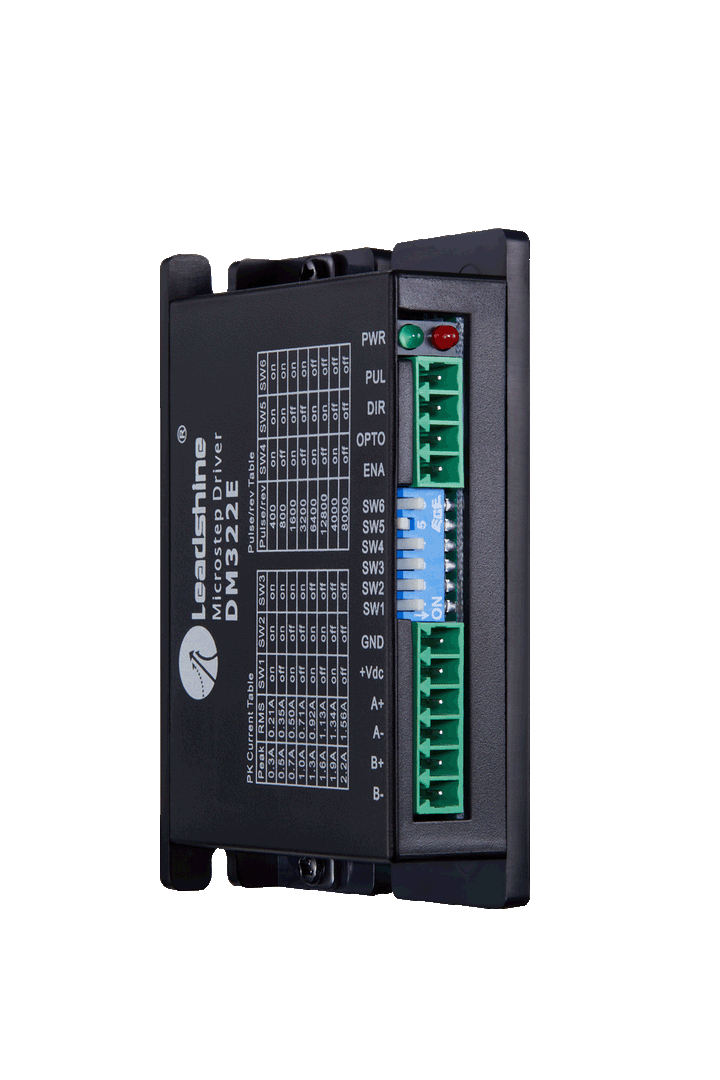

Leadshine Digital Stepper Motor Drive DM322E 2.2A 12-30VDC
Including GST (No Hidden Charges)
Checkout securely with
The Leadshine DM322E is a compact, high-performance digital stepper motor driver engineered for smooth, quiet, and efficient motion control. Designed for simplicity and reliability, it is ideal for driving NEMA 11, 14, 16, and 17 hybrid stepper motors in demanding industrial and automation applications. The DM322E supports both 2-phase (1.8°) and 4-phase (0.9°) motors and offers step & direction control (PUL/DIR), making it highly versatile for motion applications such as CNC routers, pick-and-place machines, laser cutters, and labeling systems.
With DIP switch configuration, users can easily select from 8 microstepping resolutions (400–12,800 steps/rev) and 8 output current settings (0.3A–2.2A peak). Advanced anti-resonance technology ensures optimal torque performance with minimal vibration, reduced motor heating, and lower acoustic noise. It supports up to 70 kHz pulse frequency and includes key protections such as over-voltage and over-current safety.
Application:
• CNC and laser machines
• XY tables and engraving tools
• Pick and place automation
• Packaging and labeling systems
• Compact robotic drives
Key Features:
• Digital control with Leadshine advanced stepper technology
• Anti-resonance for smooth motion and reduced noise
• Step & Direction control (PUL/DIR) with opto-isolated inputs
• Wide voltage input: 12–30VDC
• Output current adjustable from 0.3A to 2.2A via DIP switches
• Microstep resolution selectable from 400 to 12,800 steps/rev
• Auto motor identification and configuration
• Pulse frequency up to 70 kHz
• Soft-start with idle current reduction
• Compact size and lightweight (approx. 90g)
• Protection: Over-voltage, over-current
Data Shet:- Click Here
Mechanical:-
Specifications:
Electrical Specifications:
| Parameter | Value |
|---|---|
| Output Current | 0.3A – 2.2A (1.6A RMS) |
| Input Voltage | 12V – 30VDC |
| Logic Signal Current | 7 – 16 mA (typical 10 mA) |
| Pulse Input Frequency | Up to 70 kHz |
| Minimum Pulse Width | 7.5 μs |
| Minimum Direction Setup Time | 7.5 μs |
| Isolation Resistance | ≥ 100 MΩ |
Environmental Specifications:
| Parameter | Value |
|---|---|
| Cooling Method | Natural or Forced Cooling |
| Operating Temp. | 0°C to 50°C (32°F to 122°F) |
| Storage Temp. | -20°C to 65°C (-4°F to 149°F) |
| Operating Humidity | 40%RH – 90%RH |
| Storage Humidity | 10%RH – 90%RH |
| Ambient Conditions | Free from dust, oil, corrosive gas |
| Vibration | 10–50Hz / 0.15mm amplitude |
| Weight | Approx. 90g (3.5 oz) |
Package Includes:
1 x Leadshine DM322E Stepper Motor Driver
1 x User Manual
