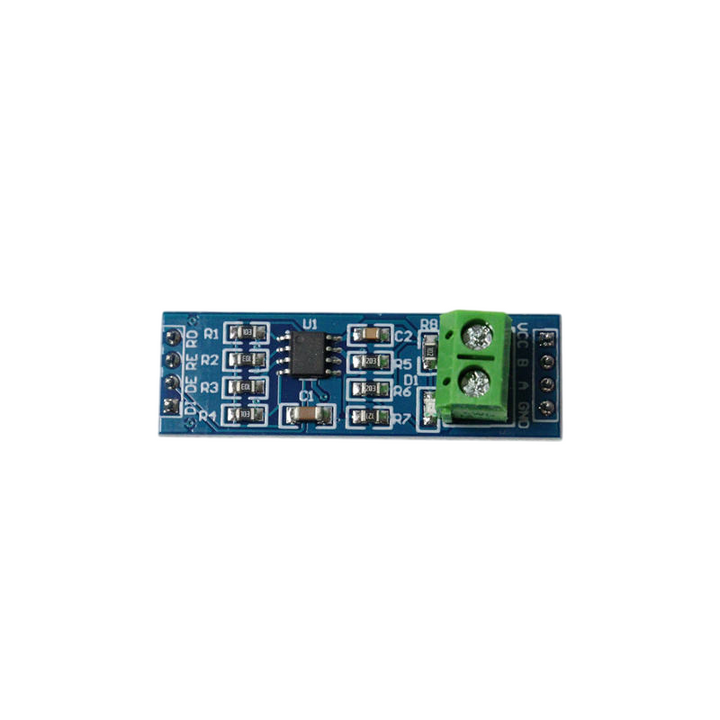

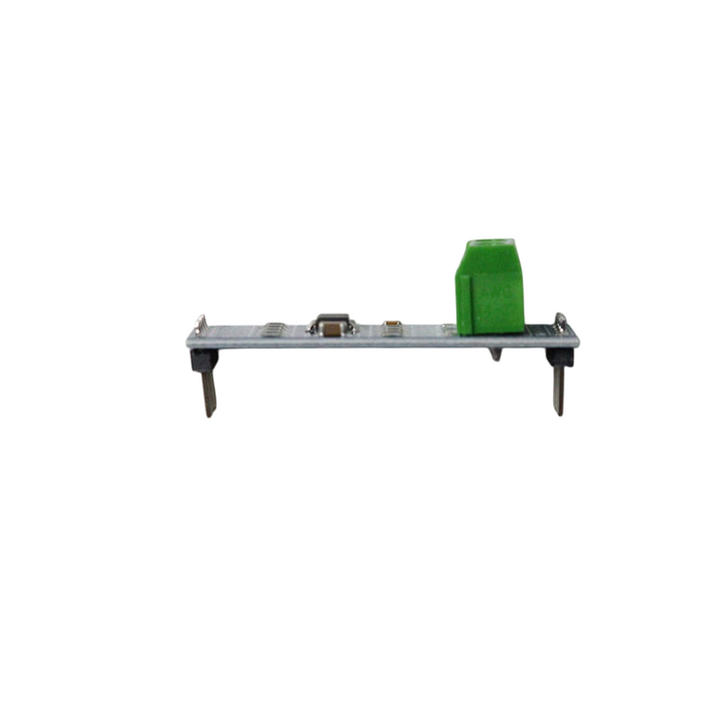

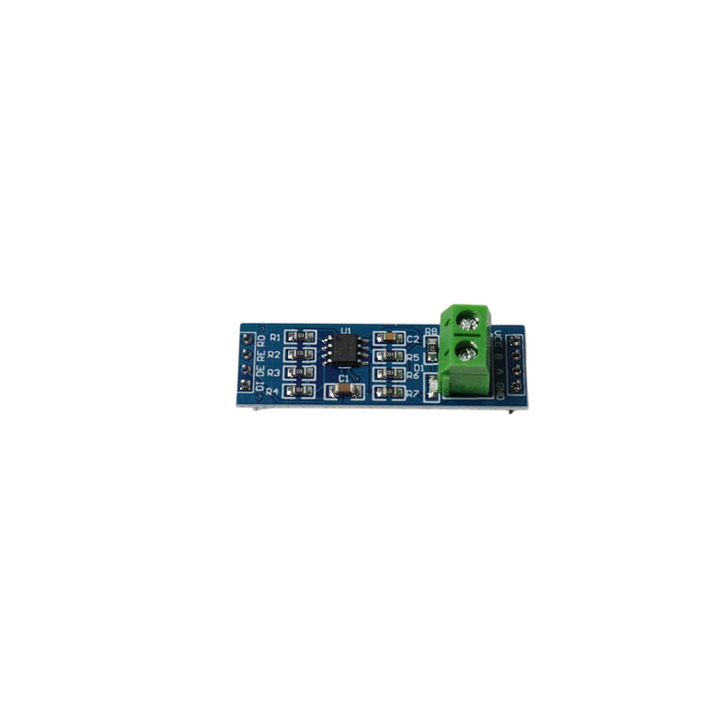

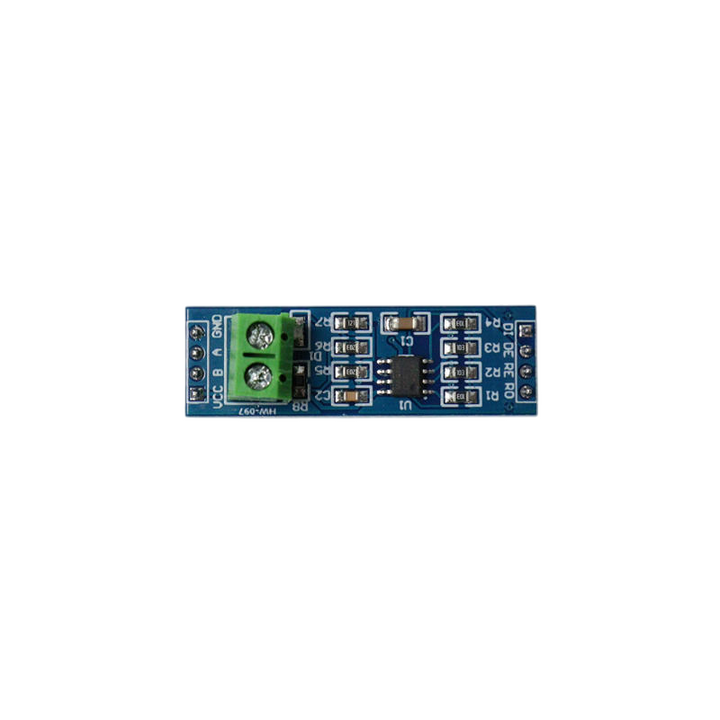

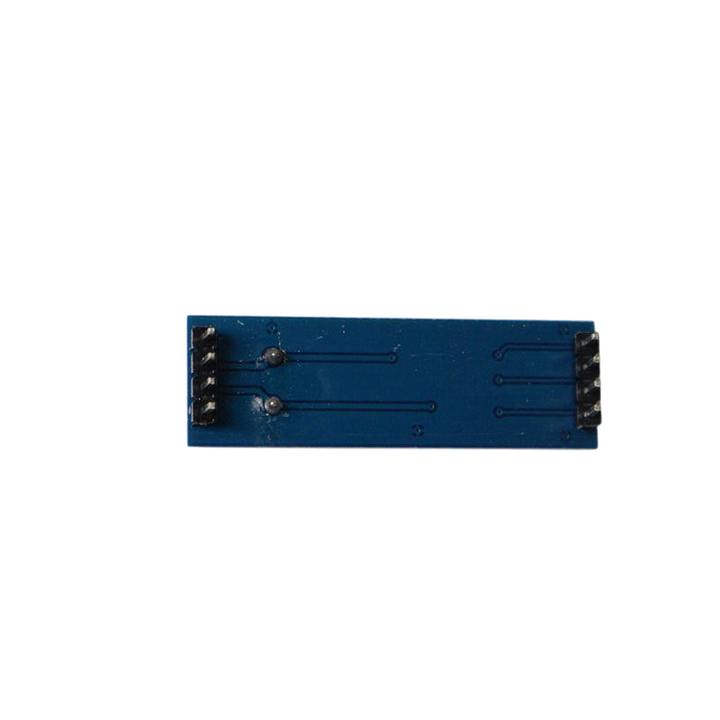

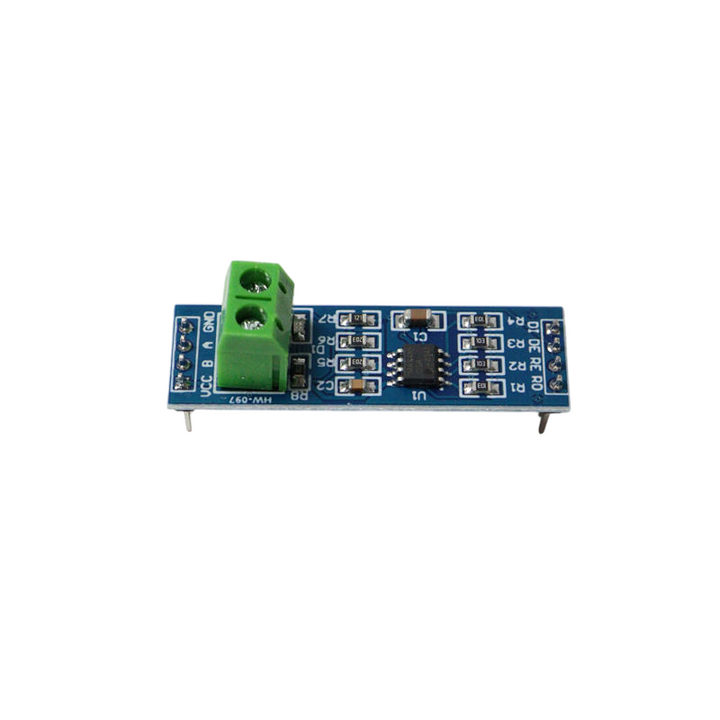

MAX485 TTL To RS485 Converter

The MAX485 TTL to RS485 Converter Module is a compact and efficient transceiver board that converts TTL-level serial signals to RS485 for long-distance and reliable communication.
Built around the MAX485 IC, this module enables robust data transfer over distances of up to 1.2 km (4000 ft), supporting up to 32 devices on the same data line in a multi-drop configuration.

Designed for industrial and office environments, the MAX485 module offers low power consumption, high noise immunity, and error-free differential signaling — making it ideal for Arduino, microcontroller projects, and industrial control systems.
It’s the perfect solution for extending serial communication between devices in noisy or distant environments.

Key Features

• RS485 Differential Communication: Converts TTL signals to RS485 for long-range, noise-resistant communication.

• Low Power Consumption: Built-in MAX485 IC with low-power, slew-rate-limited transceiver.

• Multi-Drop Network Support: Connect up to 32 devices on a single RS485 bus.

• Long-Distance Transmission: Communication range up to 1.2 km (4000 ft).

• High-Speed Data Rate: Supports data rates up to 10 Mbps.

• Microcontroller Compatible: Directly interfaces with Arduino, ESP32, STM32, and other TTL logic devices.

• Easy Wiring: 5.08 mm pitch 2P terminal block for simple RS485 connections.

• All Pins Accessible: All chip pins are brought out for full microcontroller control.

• Compact & Durable Design: Ideal for embedded and industrial setups.

Applications

• Long-distance serial communication

• Industrial automation and sensor networks

• Arduino & microcontroller projects

• Modbus communication setups

• PLC and CNC control interfaces

• RS485 bus expansion for IoT systems

Specifications

Package Includes

• 1 × MAX485 TTL to RS485 Converter Module
