NEMA23 Planetary Gearbox for Stepper motors Reduction-10 SIR060-10A-6.35-OW (8-OW)

Rs. 5,999.00 Rs. 5,200.00 SAVE 13%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE02523
Availability : In Stock Pre order Out of stock
Categories: Planetary Gearbox for Stepper Motors
Description

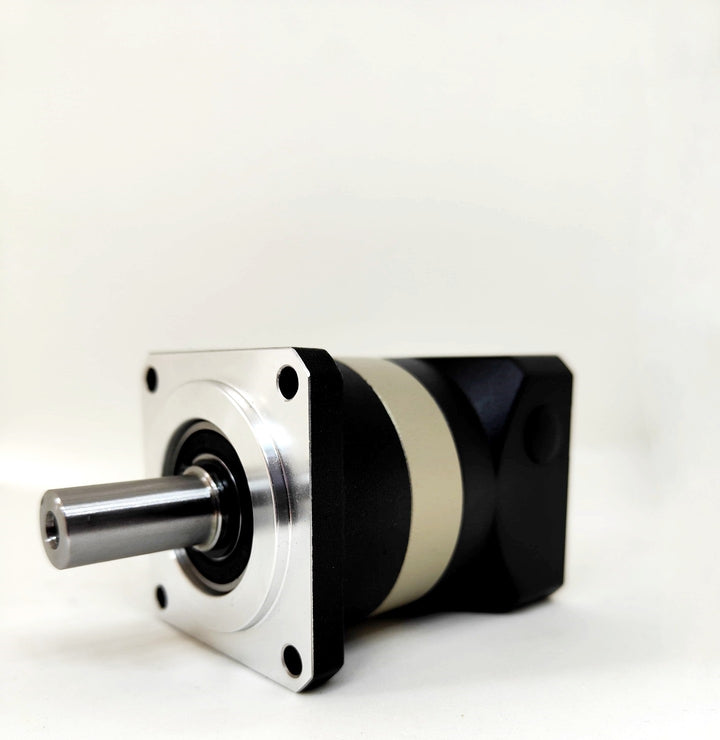

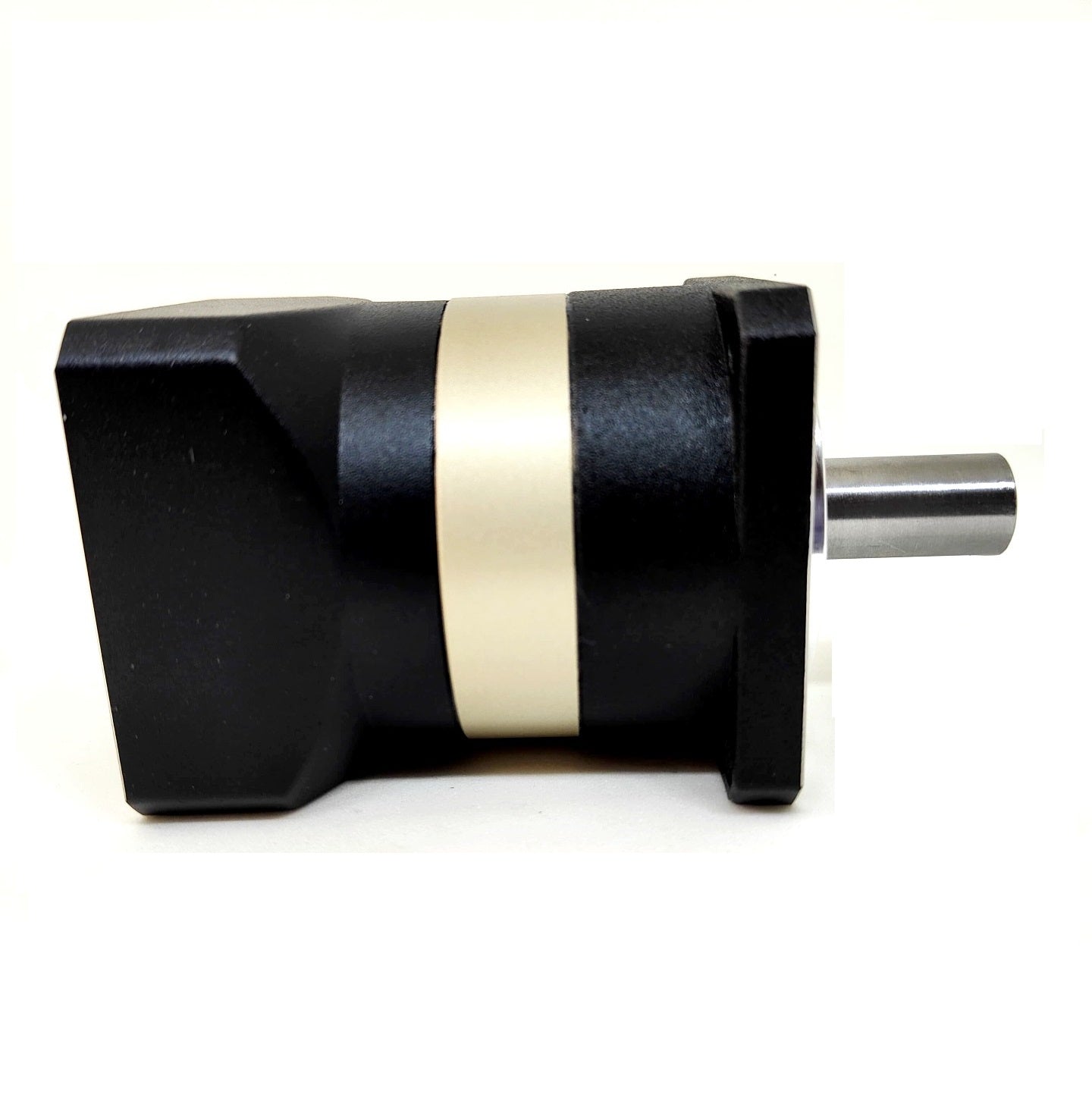

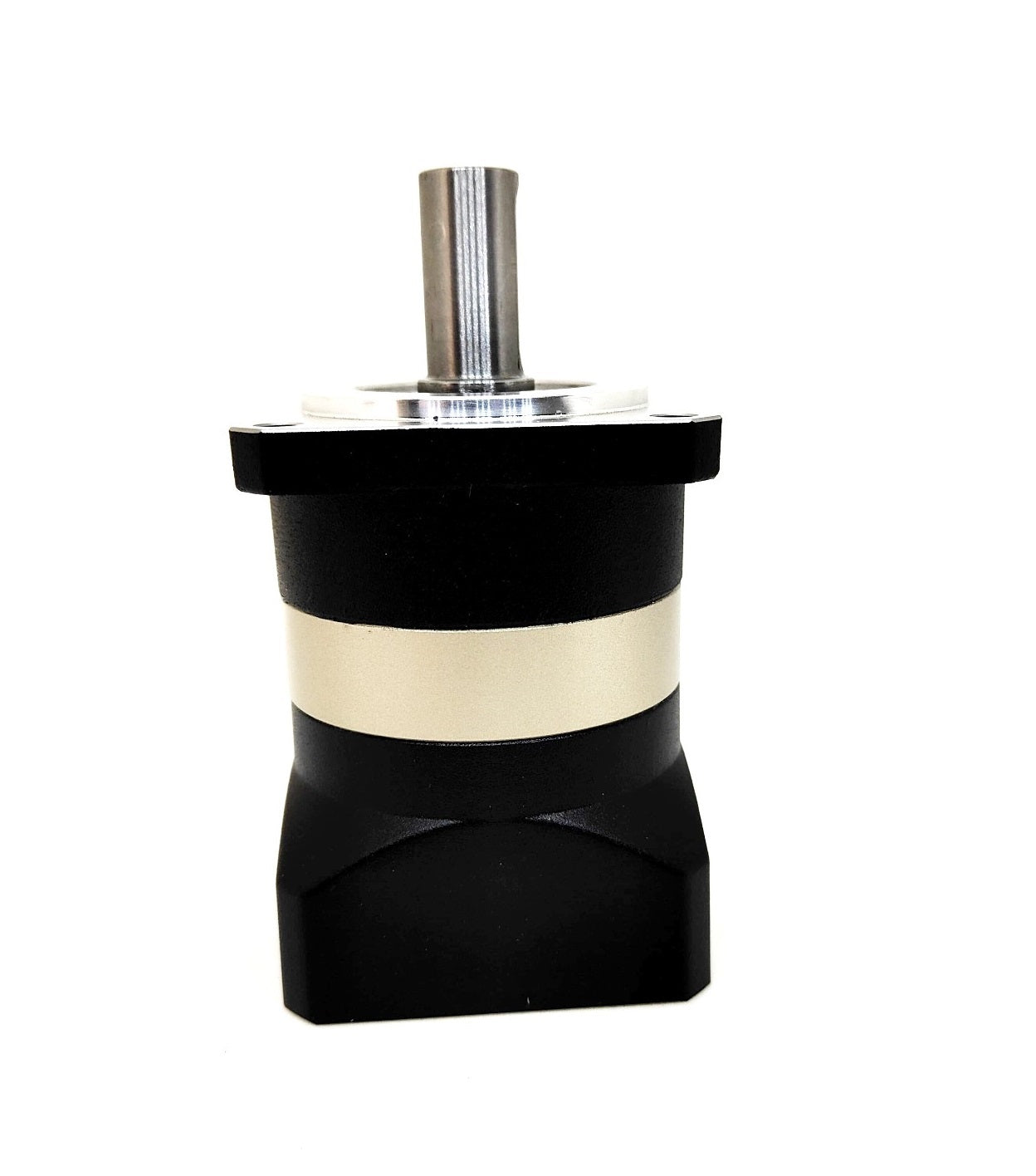

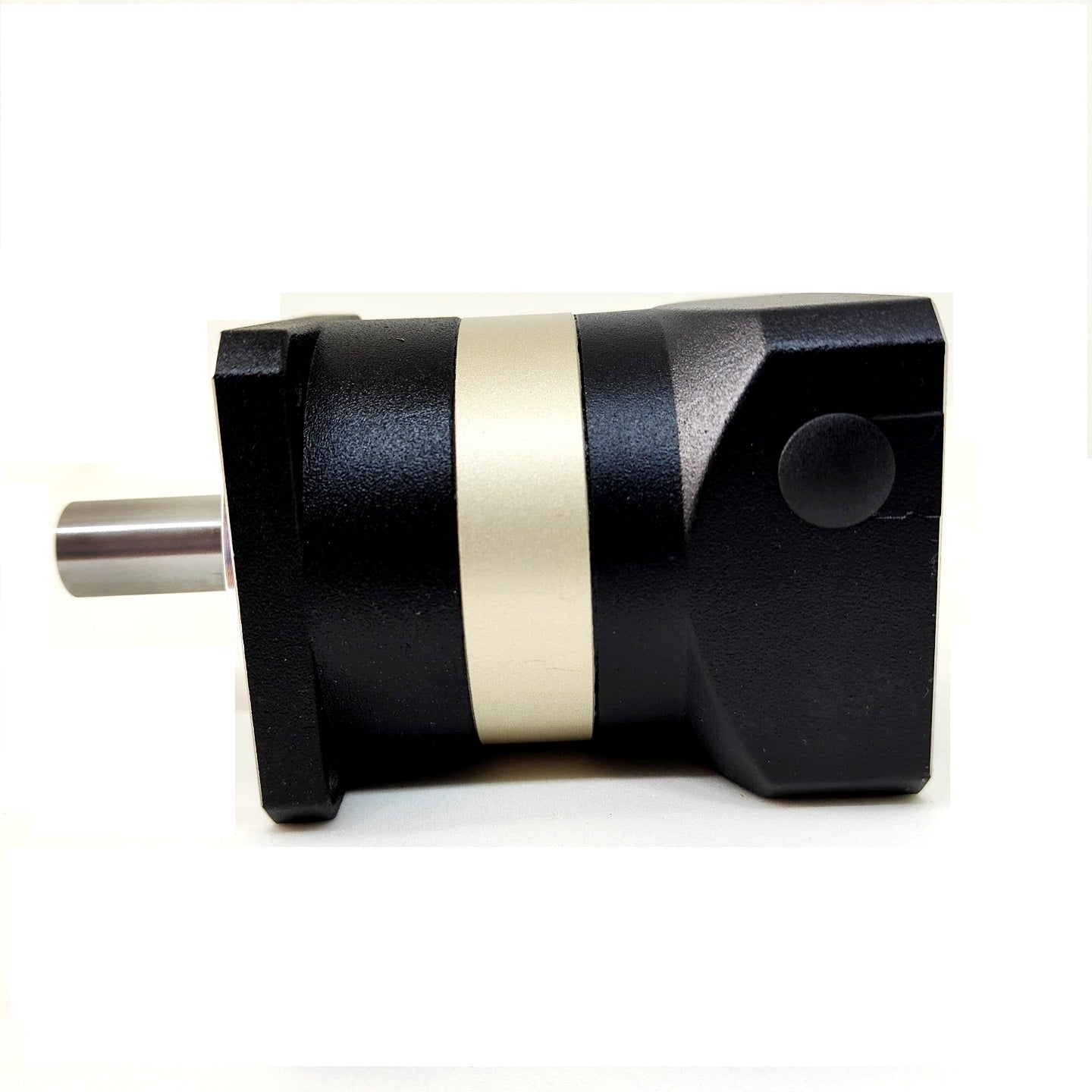

The SIR060-10A-6.35-OW (8-OW) is a NEMA 23 planetary gearbox with a 10:1 reduction ratio. This gearbox is designed for use with NEMA 23 stepper motors, providing moderate speed reduction and a significant increase in torque output. Featuring a planetary gear system, it delivers efficient, smooth operation with minimal backlash, making it ideal for applications requiring high torque, precision, and reliability. The 10:1 reduction ratio is suited for tasks that require more torque with a slightly lower speed, compared to the 5:1 version, providing a balance between speed and performance.

This gearbox is widely used in robotics, CNC machines, 3D printers, and other precision automation systems where high torque and control are necessary.

Short Features:

  • 10:1 Reduction Ratio: Provides higher torque output and reduces speed by a factor of 10.
  • Planetary Gear System: Ensures smooth, efficient motion with minimal backlash.
  • NEMA 23 Compatibility: Designed to work with NEMA 23 stepper motors.
  • Enhanced Torque: Ideal for applications requiring high torque and precision.
  • Compact and Durable: Reliable and long-lasting performance in a small form factor.

Short Application:

  • Robotics
  • CNC Machines
  • 3D Printers
  • Automation Systems

  • Precision Motion Control Systems

Data Sheet:- Click Here

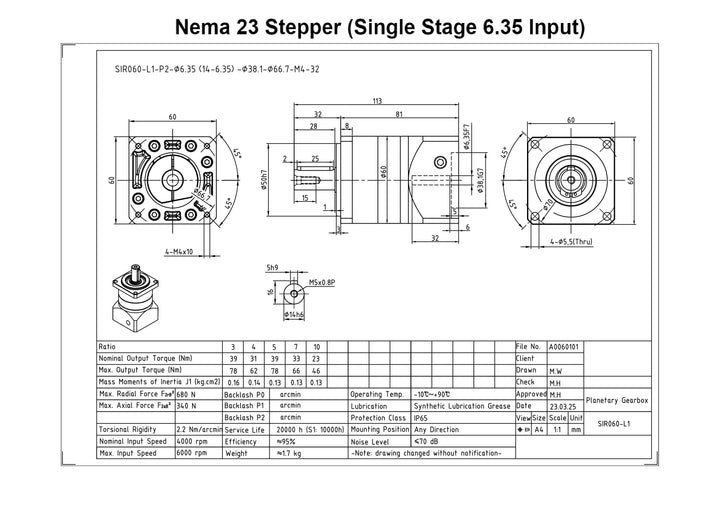

Specifications Table:

Specification Details
Model SIR060-10A-6.35-OW (8-OW)
Gear Ratio 10:1
Gear Type Planetary
Input Shaft Diameter 6.35 mm (1/4 inch)
Output Shaft Type Round shaft (standard for NEMA 23 motors)
Output Shaft Diameter 8 mm
Backlash Low backlash for high precision
Torque Output Increased torque (depends on the motor used)
Material High-strength steel or aluminum (depending on model)
Efficiency High efficiency with minimal energy loss
Operating Temperature -20°C to +85°C

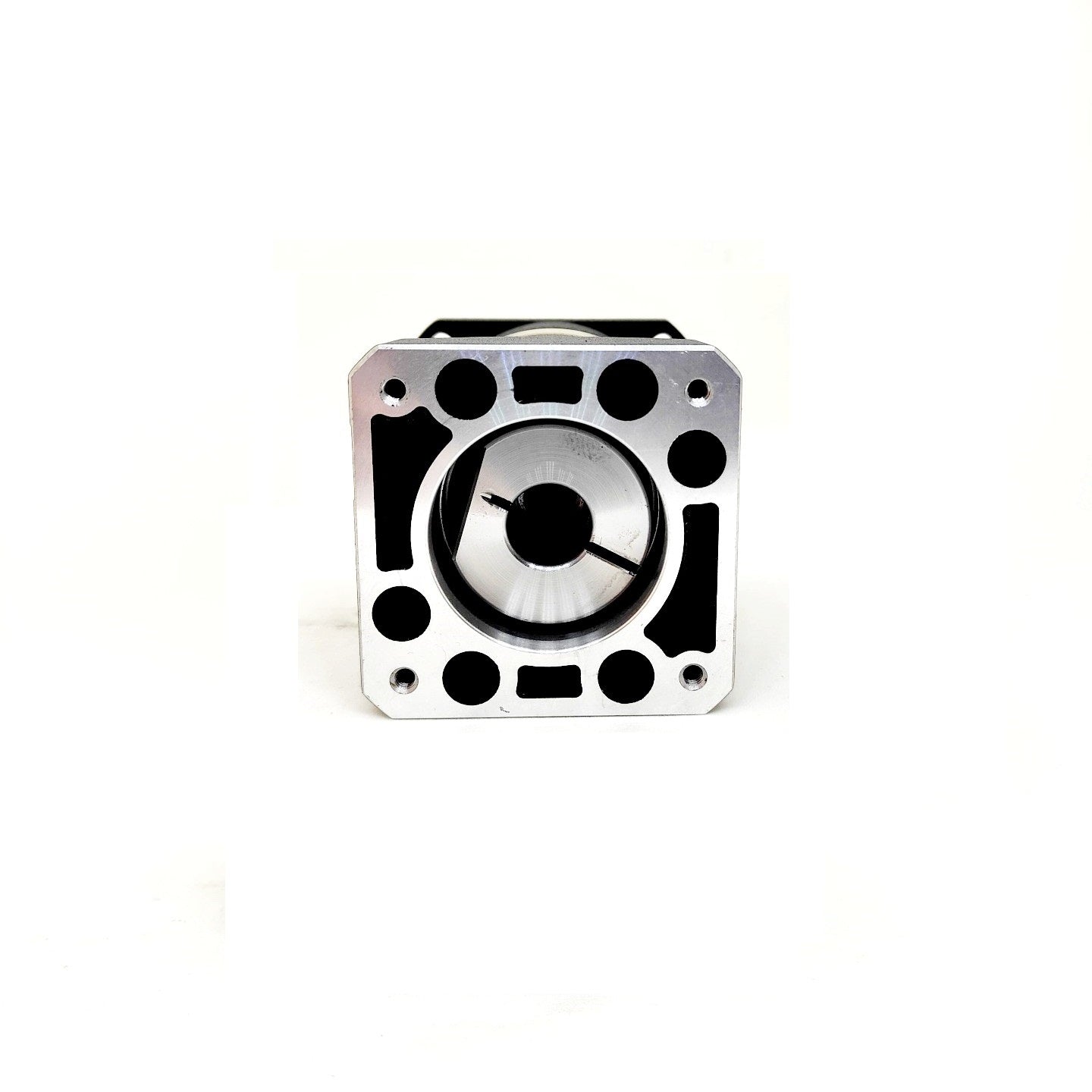

Mounting NEMA 23 standard mounting holes for easy attachment
Dimensions (L x W x H) Approx. 60 mm x 60 mm x 50 mm (depending on version)
Weight Approx. 600-700g (depending on version)
Noise Level Low noise operation
Lubrication Grease-lubricated for smooth operation
Lifetime 20,000 hours

Package Includes:

  • 1 x NEMA 23 Planetary Gearbox (SIR060-10A-6.35-OW)
