NEMA23 Planetary Gearbox for Stepper motors Reduction-20 SIR060-20A-6.35-OF (8-OF)
Including GST (No Hidden Charges)
Checkout securely with

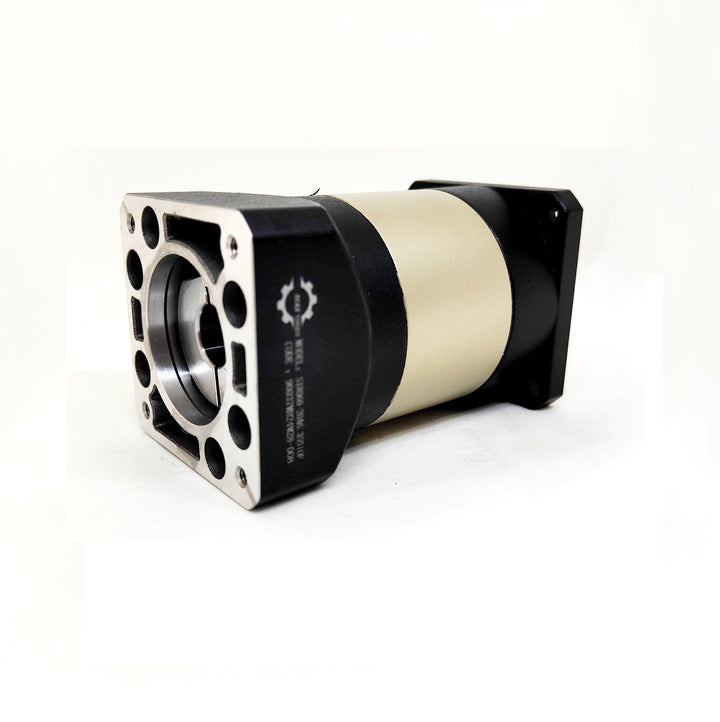

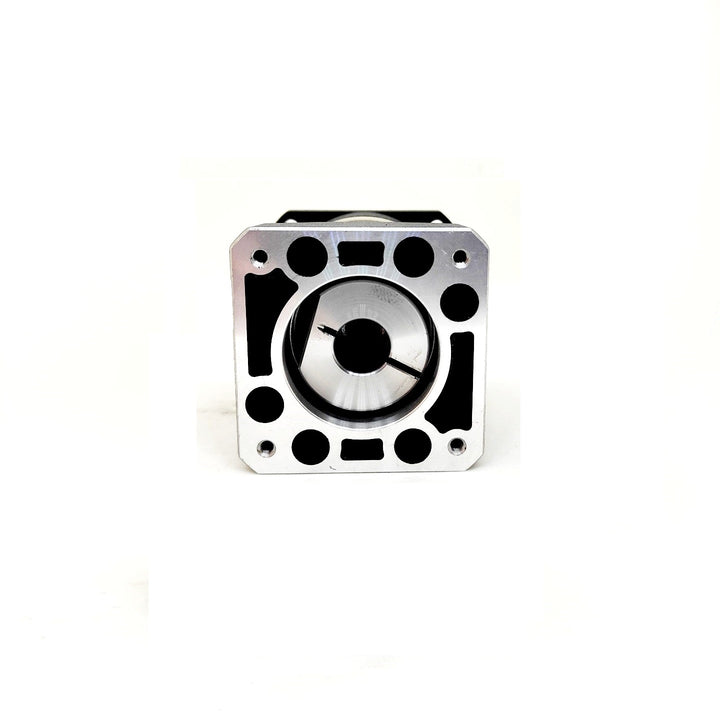

The SIR060-20A-6.35-OF (8-OF) is a NEMA 23 planetary gearbox with a 20:1 reduction ratio. This gearbox is designed to work with NEMA 23 stepper motors and is engineered to provide significant torque multiplication and reduced speed. The 20:1 reduction ratio is ideal for applications that require higher torque and even lower speed compared to lower ratio gearboxes. It is highly suitable for precision control systems and applications that demand high torque at slower speeds, such as robotics, CNC machinery, and 3D printers. The gearbox features a planetary gear system, offering efficient operation with low backlash, ensuring smooth and precise performance over extended periods of use.
This gearbox is built for high durability, low noise operation, and can handle various industrial, automation, and motion control applications where power and control are key.
Short Features:
- 20:1 Reduction Ratio: Offers maximum torque increase and significant speed reduction.
- Planetary Gear System: Smooth, efficient operation with minimal backlash, ideal for precise control.
- NEMA 23 Compatibility: Designed to work with NEMA 23 stepper motors, common in many industrial and automation systems.
- Increased Torque: Perfect for applications requiring high torque and low speed for accurate motion control.
- Compact & Robust: Durable design that delivers reliable performance in industrial environments.
Short Application:
- Robotics
- CNC Machines
- 3D Printers
- Automation Systems
- Precision Motion Control Systems

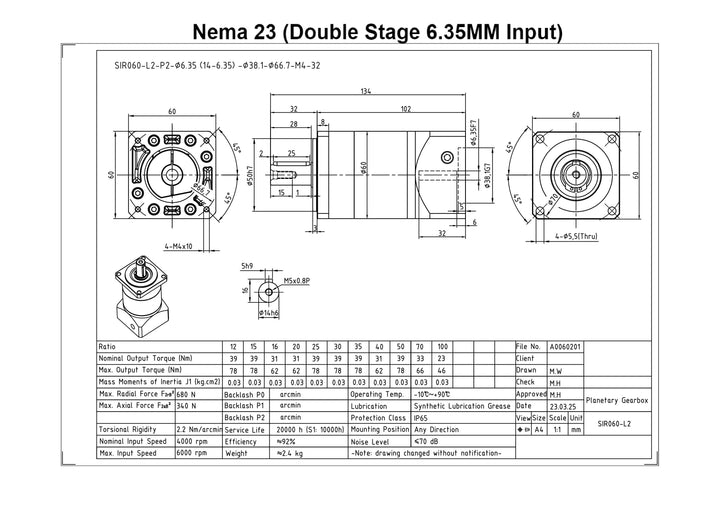

Data Sheet:- Click Here
Specifications Table:
| Specification | Details |
|---|---|
| Model | SIR060-20A-6.35-OF (8-OF) |
| Gear Ratio | 20:1 |
| Gear Type | Planetary |
| Input Shaft Diameter | 6.35 mm (1/4 inch) |
| Output Shaft Type | Round shaft (standard for NEMA 23 motors) |
| Output Shaft Diameter | 8 mm |
| Backlash | Low backlash for high precision |
| Torque Output | Increased torque (depends on motor used) |
| Material | High-strength steel or aluminum (depending on model) |
| Efficiency | High efficiency with minimal energy loss |
| Operating Temperature | -20°C to +85°C |
| Mounting | NEMA 23 standard mounting holes for easy attachment |
| Dimensions (L x W x H) | Approx. 60 mm x 60 mm x 50 mm (depending on version) |
| Weight | Approx. 600-700g (depending on version) |
| Noise Level | Low noise operation |
| Lubrication | Grease-lubricated for smooth operation |
| Lifetime | 20,000 hours |
Package Includes:
- 1 x NEMA 23 Planetary Gearbox (SIR060-20A-6.35-OF)
