NEMA34 Planetary Gearbox for Stepper motors Reduction-20 SIR090-20A-12.7-OF (14-OF)
Including GST (No Hidden Charges)
Checkout securely with

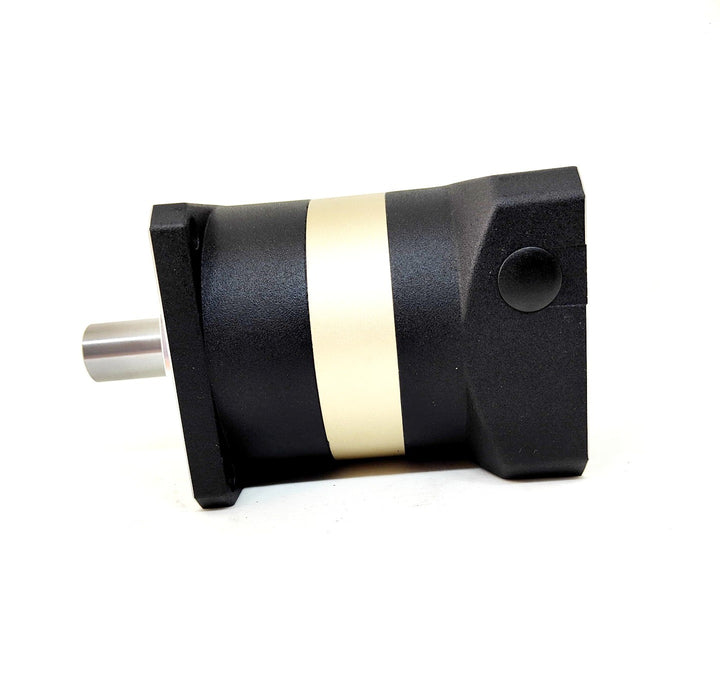

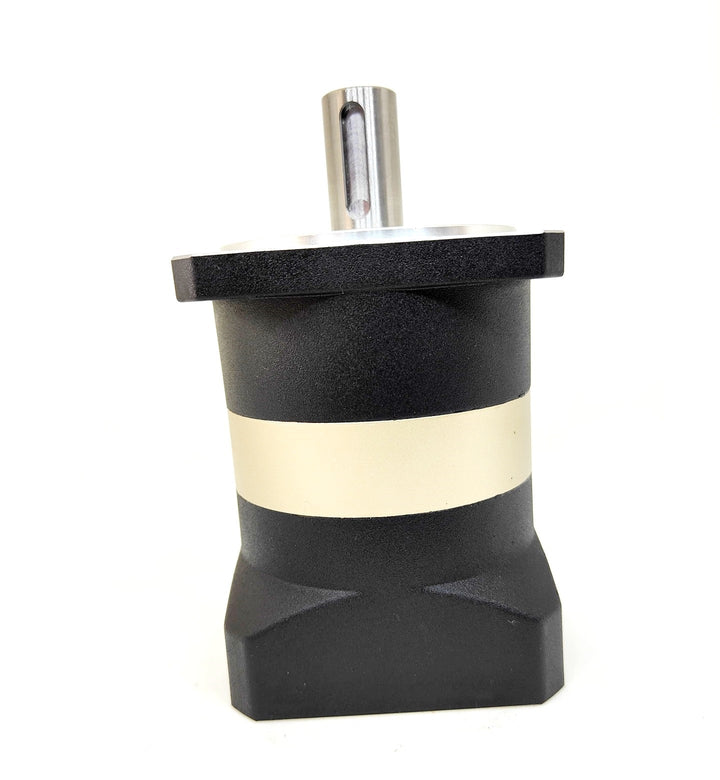

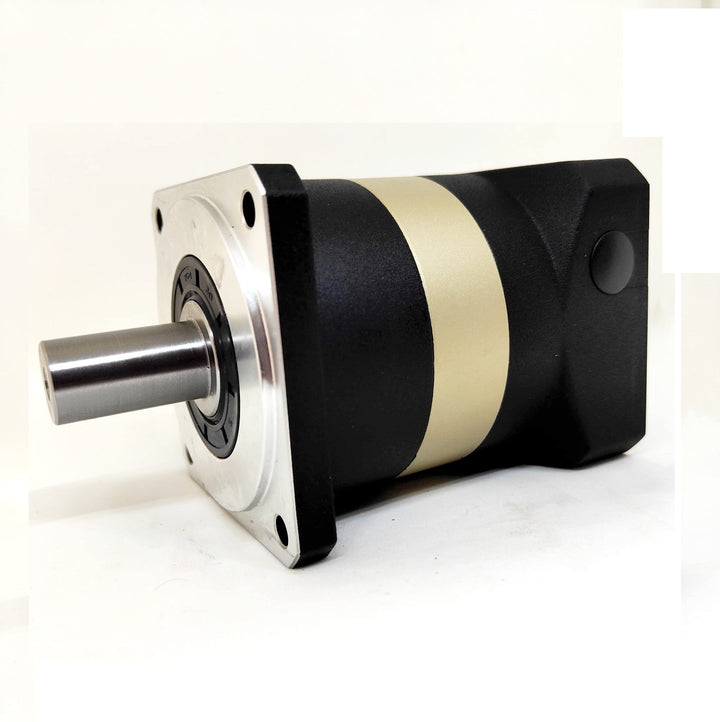

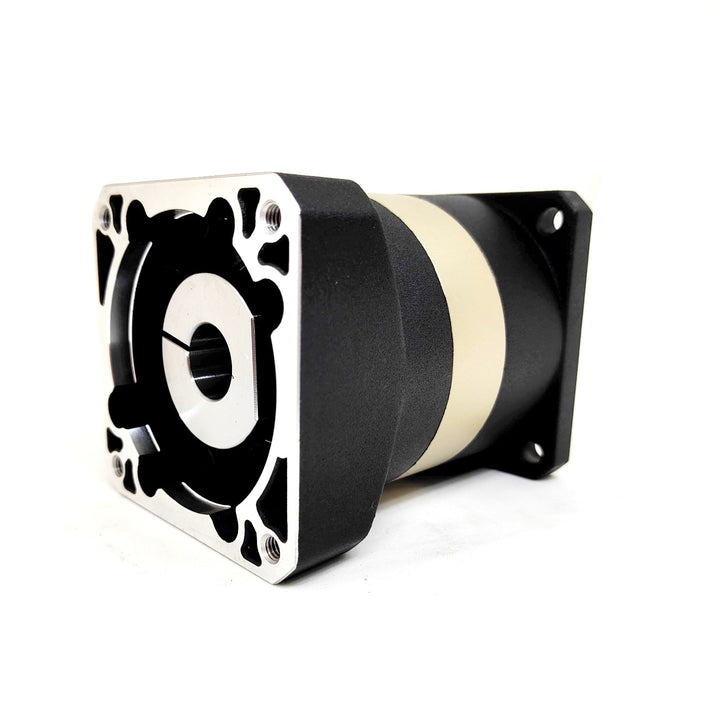

The SIR090-20A-12.7-OF (14-OF) is a NEMA 34 planetary gearbox with a 20:1 reduction ratio, designed to deliver high torque output and substantial speed reduction for stepper motors. This gearbox is designed to provide significant torque at lower speeds, making it ideal for applications requiring precise motion control with greater power. The 20:1 reduction ratio ensures that the system achieves a substantial reduction in speed, while increasing the torque output to meet the demands of high-torque applications.
The planetary gear system ensures smooth and efficient operation with minimal backlash, contributing to accurate and precise control of motion. It is engineered for reliable performance and long-lasting durability, making it suitable for heavy-duty tasks in robotics, CNC machinery, 3D printers, and automation systems.
Short Features:
- 20:1 Reduction Ratio: Provides a significant reduction in speed while increasing torque, ideal for high-torque, low-speed applications.
- Planetary Gear System: Smooth, efficient operation with low backlash for precise control.
- NEMA 34 Compatibility: Designed to integrate seamlessly with NEMA 34 stepper motors.
- High Torque Output: Perfect for applications requiring substantial torque at lower speeds for high precision.
- Durable & Compact: Built for reliability and long-lasting performance in demanding industrial applications.
Short Application:
- Robotics
- CNC Machines
- 3D Printers
- Heavy-duty Automation Systems
- Precision Motion Control Systems

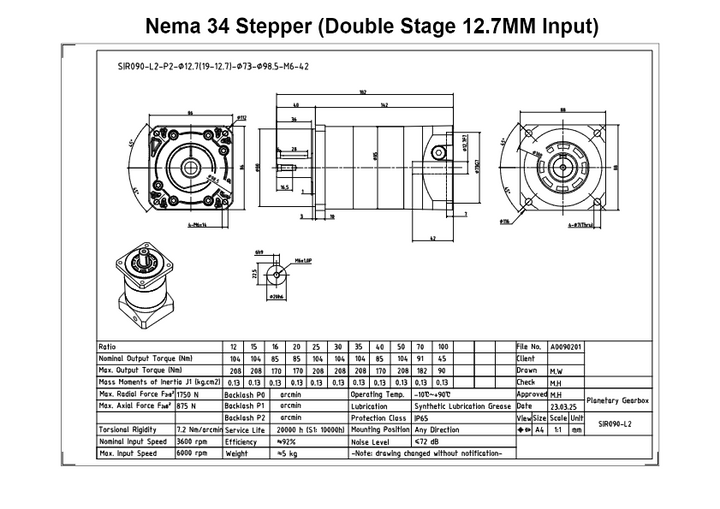

Data Sheet:- Click Here
Specifications Table:
| Specification | Details |
|---|---|
| Model | SIR090-20A-12.7-OF (14-OF) |
| Gear Ratio | 20:1 |
| Gear Type | Planetary |
| Input Shaft Diameter | 12.7 mm (1/2 inch) |
| Output Shaft Type | Round shaft (standard for NEMA 34 motors) |
| Output Shaft Diameter | 14 mm |
| Backlash | Low backlash for high precision |
| Torque Output | Increased torque (depends on motor used) |
| Material | High-strength steel or aluminum (depending on model) |
| Efficiency | High efficiency with minimal energy loss |
| Operating Temperature | -20°C to +85°C |
| Mounting | NEMA 34 standard mounting holes for easy attachment |
| Dimensions (L x W x H) | Approx. 90 mm x 90 mm x 80 mm (depending on version) |
| Weight | Approx. 1.5-2 kg (depending on version) |
| Noise Level | Low noise operation |
| Lubrication | Grease-lubricated for smooth operation |
| Lifetime | 20,000 hours |
Package Includes:
- 1 x NEMA 34 Planetary Gearbox (SIR090-20A-12.7-OF)
