NEMA34 Planetary Gearbox for Stepper motors Reduction-5 SIR090-5A-12.7-OW (14-OW)
Including GST (No Hidden Charges)
Checkout securely with
The SIR090-5A-12.7-OW (14-OW) is a NEMA 34 planetary gearbox with a 5:1 reduction ratio designed for stepper motors. It is built to provide high torque output and moderate speed reduction in applications that require robust performance. With a 5:1 reduction ratio, this gearbox strikes a balance between speed and torque, offering higher torque and lower speed without compromising the overall system efficiency. The planetary gear system ensures smooth, efficient operation with minimal backlash, making it perfect for precision applications in automation, robotics, CNC machinery, and 3D printing.
This gearbox features high durability, low noise operation, and is designed to integrate seamlessly with NEMA 34 stepper motors, making it suitable for heavy-duty applications that require reliable performance over long periods.
Short Features:
- 5:1 Reduction Ratio: Provides a moderate reduction in speed and an increase in torque for more controlled motion.
- Planetary Gear System: Delivers efficient, smooth, and reliable operation with minimal backlash for precision tasks.
- NEMA 34 Compatibility: Designed specifically for NEMA 34 stepper motors.
- Enhanced Torque: Suitable for high-torque applications that require fine control and reduced speed.
- Durable & Compact: Built for reliability and longevity in space-constrained, heavy-duty applications.
Short Application:
- Robotics
- CNC Machines
- 3D Printers
- Heavy-duty Automation Systems
- Precision Motion Control Systems

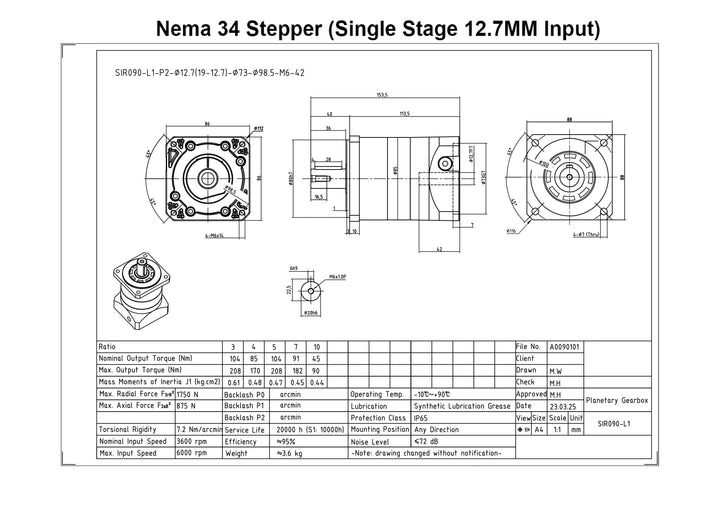

DATA SHEET:- Click Here
Specifications Table:
| Specification | Details |
|---|---|
| Model | SIR090-5A-12.7-OW (14-OW) |
| Gear Ratio | 5:1 |
| Gear Type | Planetary |
| Input Shaft Diameter | 12.7 mm (1/2 inch) |
| Output Shaft Type | Round shaft (standard for NEMA 34 motors) |
| Output Shaft Diameter | 14 mm |
| Backlash | Low backlash for high precision |
| Torque Output | Increased torque (depends on motor used) |
| Material | High-strength steel or aluminum (depending on model) |
| Efficiency | High efficiency with minimal energy loss |
| Operating Temperature | -20°C to +85°C |
| Mounting | NEMA 34 standard mounting holes for easy attachment |
| Dimensions (L x W x H) | Approx. 90 mm x 90 mm x 80 mm (depending on version) |
| Weight | Approx. 1.5-2 kg (depending on version) |
| Noise Level | Low noise operation |
| Lubrication | Grease-lubricated for smooth operation |
| Lifetime | 20,000 hours |
Package Includes:
- 1 x NEMA 34 Planetary Gearbox (SIR090-5A-12.7-OW)
