Lithion Power Non Smart BMS 04S-10A-LFP Battery Management System BMS for Electric Vehicles, Telecom and ESS
Including GST (No Hidden Charges)
Checkout securely with

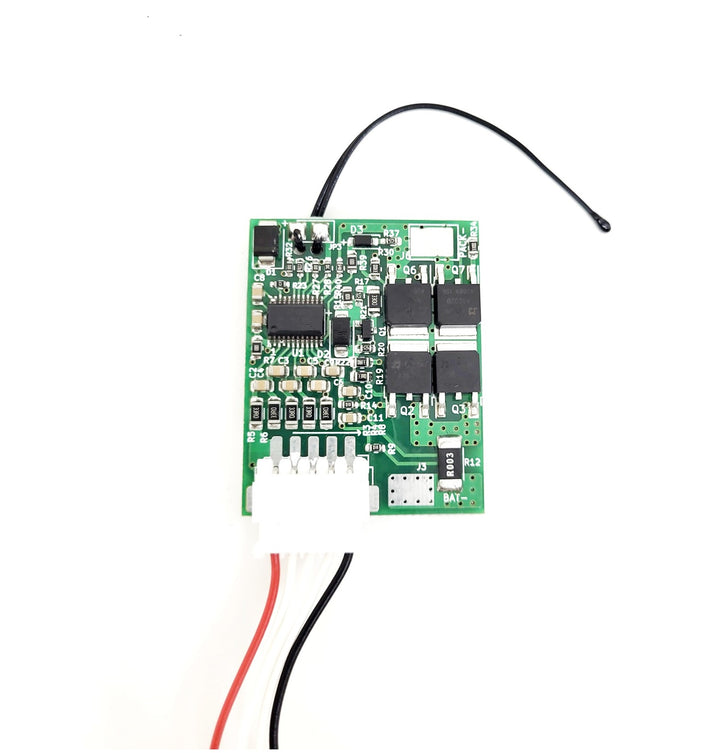

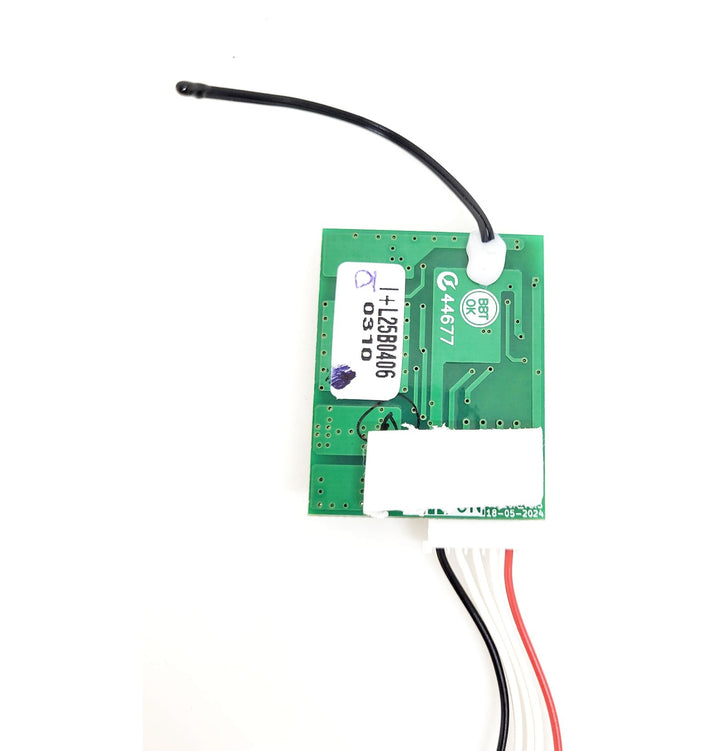

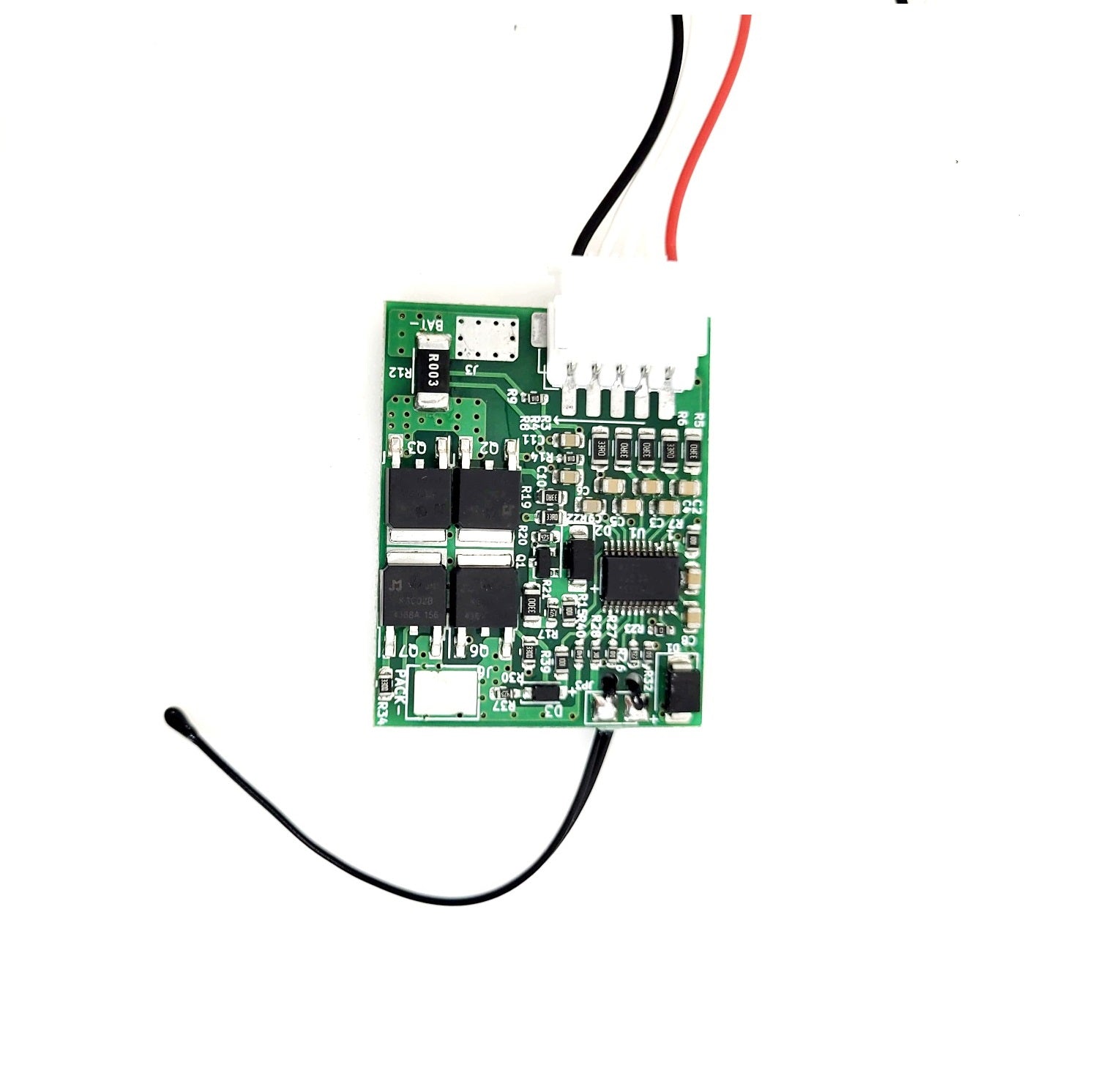

The Lithion Power Non-Smart BMS 04S-10A-LFP is a Battery Management System designed specifically for LiFePO4 (LFP) battery packs with a 4-series (4S) configuration, providing 10A of continuous discharge current. This BMS is ideal for applications such as electric vehicles, energy storage systems, and other high-power battery packs. The non-smart design means that it does not have communication capabilities or integrated balancing features, but it still offers essential protections including overcharge, over-discharge, and short-circuit protection, ensuring the longevity and safety of your battery pack. This system is designed for LiFePO4 cells, which are known for their long lifespan, thermal stability, and safety. With a compact and robust design, the 04S-10A-LFP BMS is an essential component for anyone looking to build or upgrade their LiFePO4 battery system.
Application:
The Lithion Power Non-Smart BMS 04S-10A-LFP is ideal for:
- LiFePO4 (LFP) Battery Packs
- Electric Vehicles (E-Vehicles, E-Bikes, E-Scooters)
- Solar Power Storage Systems
- DIY Power Solutions
- Backup Power Systems
Features:
- 4S Configuration: Designed for 4-series LiFePO4 battery packs.
- 10A Continuous Current: Supports up to 10A discharge current for consistent power output.
- LiFePO4 Compatibility: Specifically designed for LiFePO4 cells, providing safety and long lifespan.
- Protection Circuit: Includes overcharge, over-discharge, and short-circuit protection for enhanced safety.
- Compact Design: Small, robust, and easy to integrate into your battery pack system.
- Non-Smart Design: Focuses on basic safety and performance without communication functions.
Data sheet:- Click Here
Specifications:
| Feature | Specification |
|---|---|
| BMS Type | Lithion Power Non-Smart BMS (Basic Protection) |
| Series Configuration | 4S (4-series LiFePO4 battery pack) |
| Nominal Voltage | 12.8V (4S LiFePO4 configuration) |
| Max Discharge Current | 10A (continuous) |
| Overcharge Protection | Yes, overcharge voltage limit (3.65V per cell) |
| Over-Discharge Protection | Yes, under-voltage cutoff (2.0V per cell) |
| Short-Circuit Protection | Yes, prevents short-circuit damage |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Operating Temperature Range | -20°C to 60°C (-4°F to 140°F) |
| Balance Function | No (Non-Smart BMS, no balancing features) |
| Dimensions | Approx. 60mm x 55mm x 15mm (L x W x H) |
| Weight | Approx. 50g |
| Protection Features | Overcharge, over-discharge, short-circuit protection |
| Application | Suitable for low- to medium-power applications |
| PCB Design | High-quality, durable PCB for long-term use |
Package Include:-
1x Lithion Power Non Smart BMS 04S-10A-LFP
