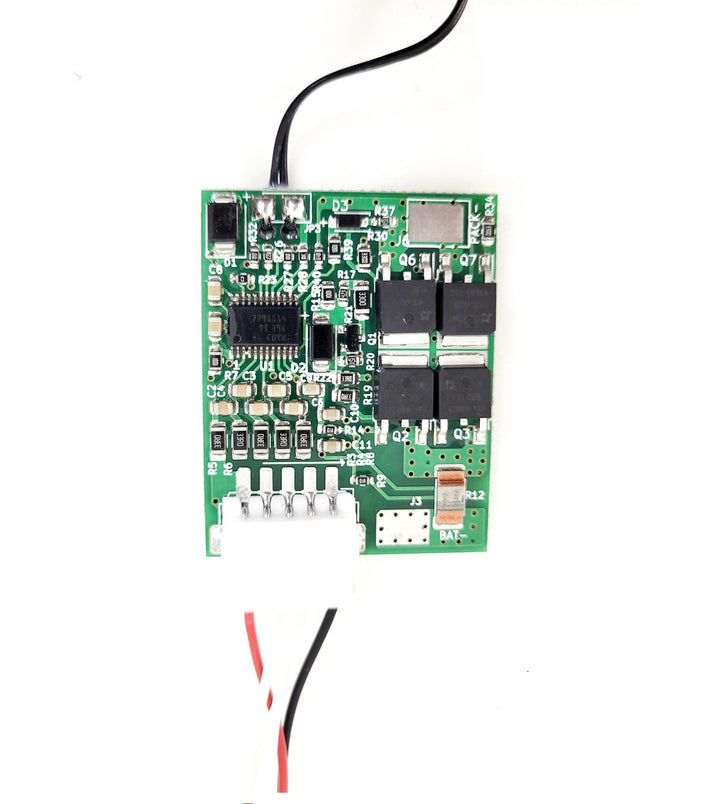

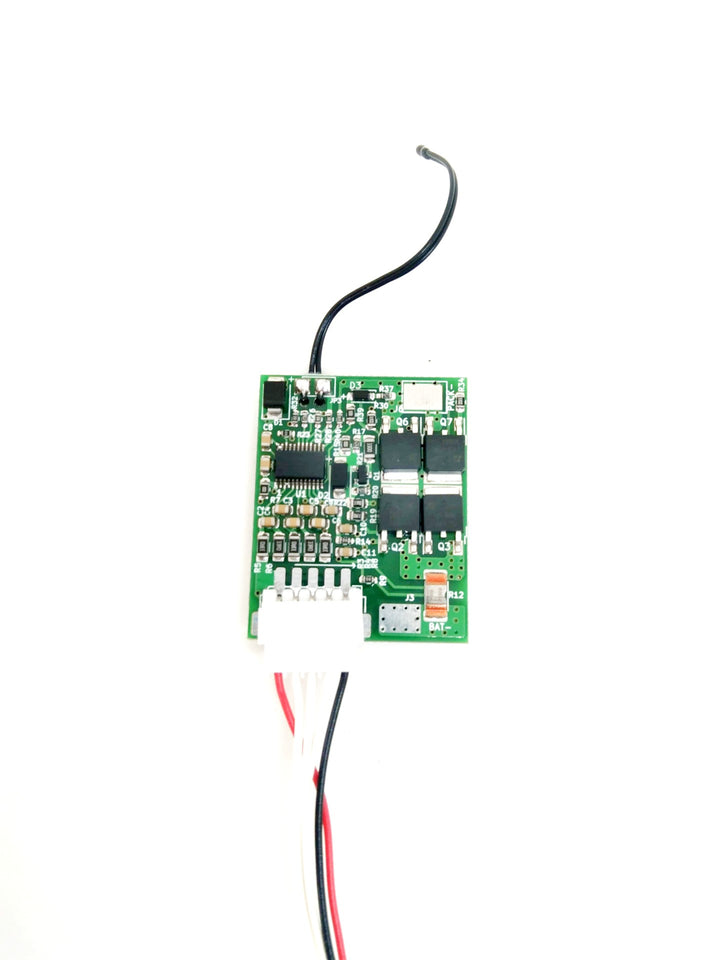

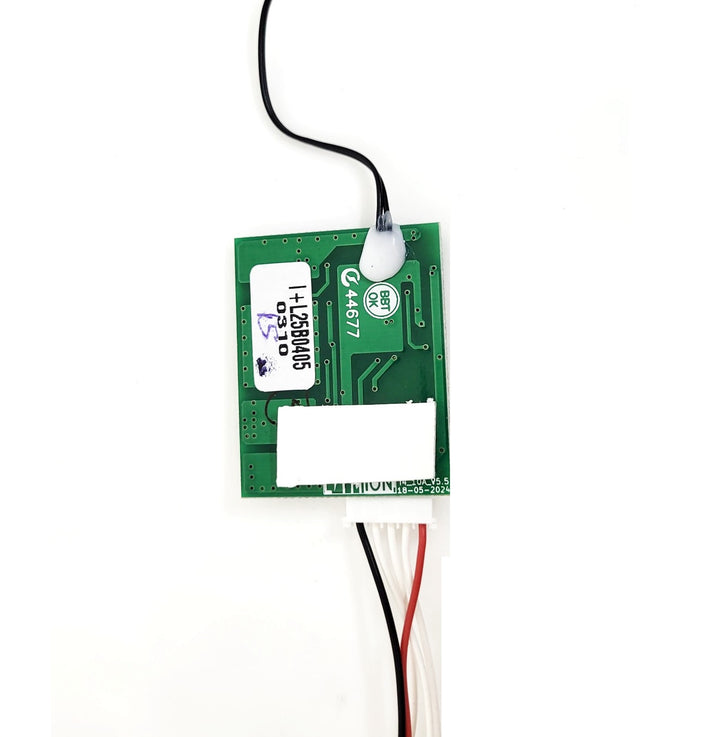

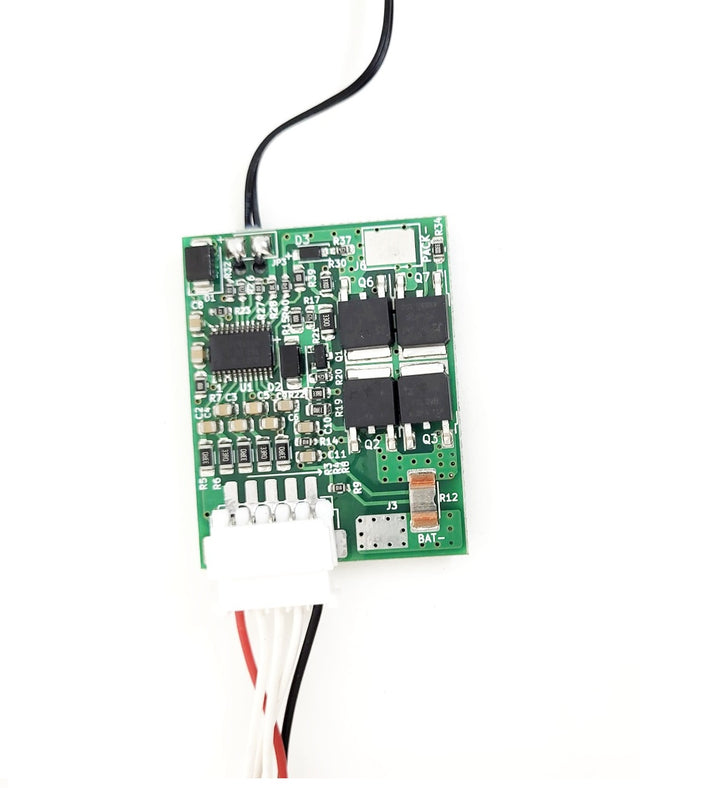

Lithion Power Non Smart BMS 4S-15A-LFP Battery Management System BMS for Electric Vehicles, Telecom and ESS
Including GST (No Hidden Charges)
Checkout securely with
The Lithion Power Non-Smart Battery Management System (BMS) 04S-15A-LFP is designed for protecting and managing 4S lithium iron phosphate (LiFePO₄) batteries. It ensures the safe operation of a battery pack by monitoring the voltage of each individual cell, preventing overcharging, over-discharging, and current overloads. The 15A rating indicates that the system can handle up to 15A of continuous discharge current, making it ideal for applications requiring moderate power output. The BMS does not feature advanced smart functions like Bluetooth connectivity or remote monitoring, but it provides essential protections for battery longevity and safety.
Short Features
- 4S Configuration: Supports 4 cells in series, typically resulting in a nominal voltage of 12.8V and a fully charged voltage of 14.6V.
- 15A Continuous Current: Rated for continuous discharge current of 15A.
- LFP (LiFePO₄) Chemistry: Compatible with lithium iron phosphate (LiFePO₄) batteries, offering enhanced safety and long cycle life.
- Basic Protection Functions: Includes over-voltage, under-voltage, over-current, and short-circuit protections.
- Balancing: Ensures cells in series maintain balanced voltage levels for optimal performance.
Short Application
The Lithion Power 04S-15A-LFP BMS is primarily used in applications such as:
- Electric bikes and scooters: For moderate-power applications that require a 12.8V system.
- Solar energy storage: For small off-grid or backup systems.
- Power tools: For use in cordless tools requiring a 4S LiFePO₄ battery pack.
- Small electric vehicles: Suitable for lightweight electric cars, carts, or recreational vehicles.
Data Sheet:-Click Here
Specifications
| Parameter | Value |
|---|---|
| BMS Type | Lithion Power Non-Smart BMS |
| Cell Configuration | 4S (4 cells in series) |
| Nominal Voltage | 12.8V |
| Maximum Voltage (Fully Charged) | 14.6V |
| Nominal Capacity | Varies by battery size |
| Max Discharge Current | 15A (Continuous) |
| Cut-off Voltage | 10.0V (typically, per cell protection) |
| Over-voltage Protection | Yes, per cell |
| Under-voltage Protection | Yes, per cell |
| Short Circuit Protection | Yes |
| Temperature Protection | Optional, depending on model |
| Balancing | Yes (Passive Cell Balancing) |
| Battery Chemistry | LiFePO₄ (Lithium Iron Phosphate) |
| Size | Typically 100mm x 50mm x 20mm (varies) |
| Weight | Varies based on manufacturer |
Package Include:-
1x Lithion Power Non Smart BMS 04S-15A-LFP
