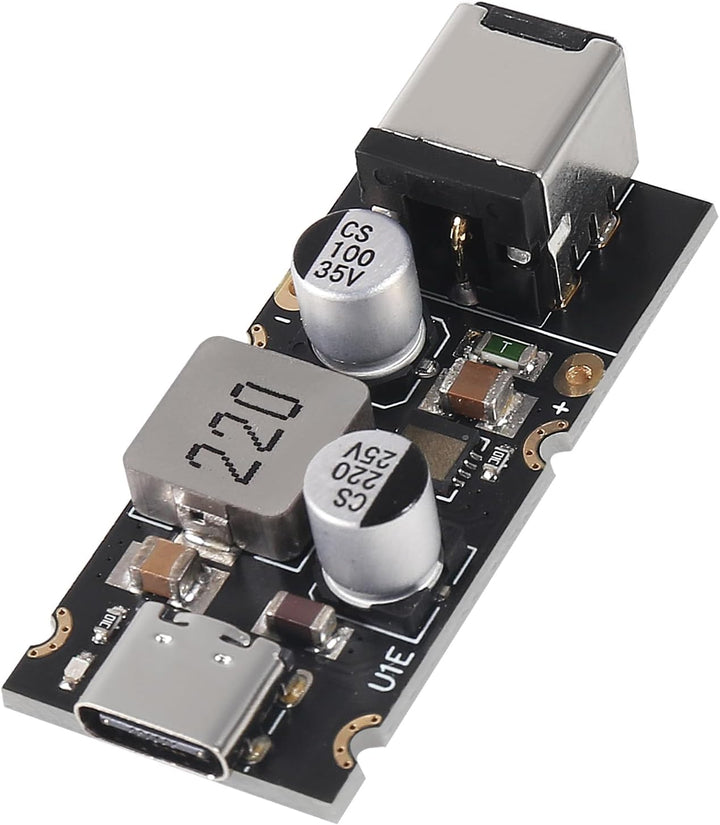

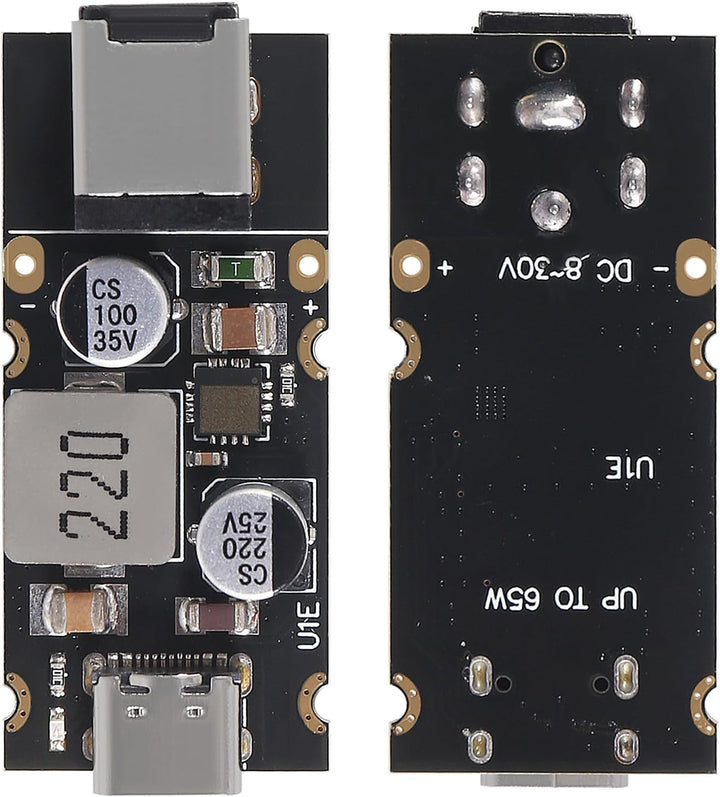

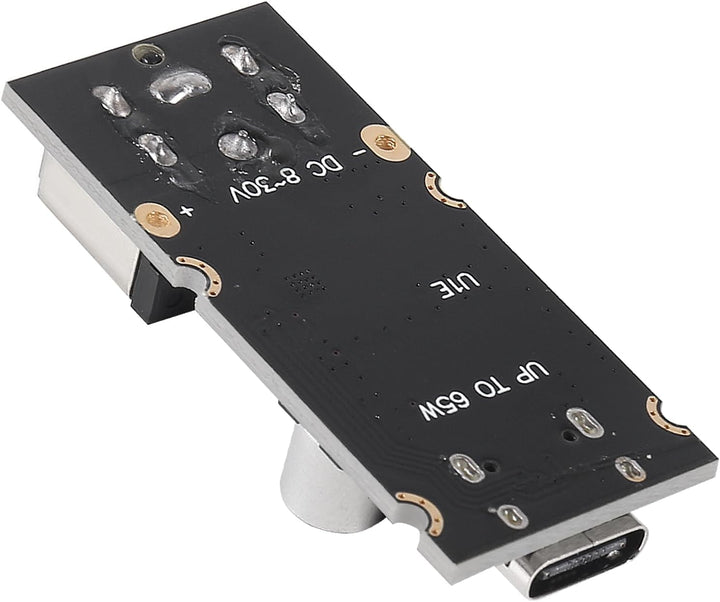

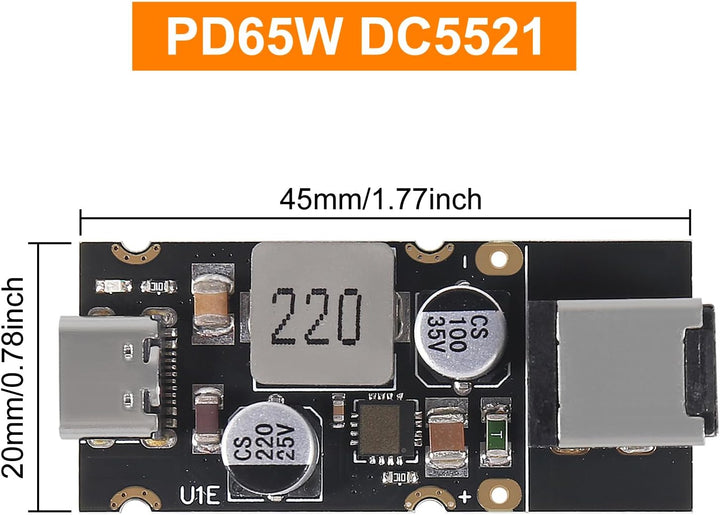

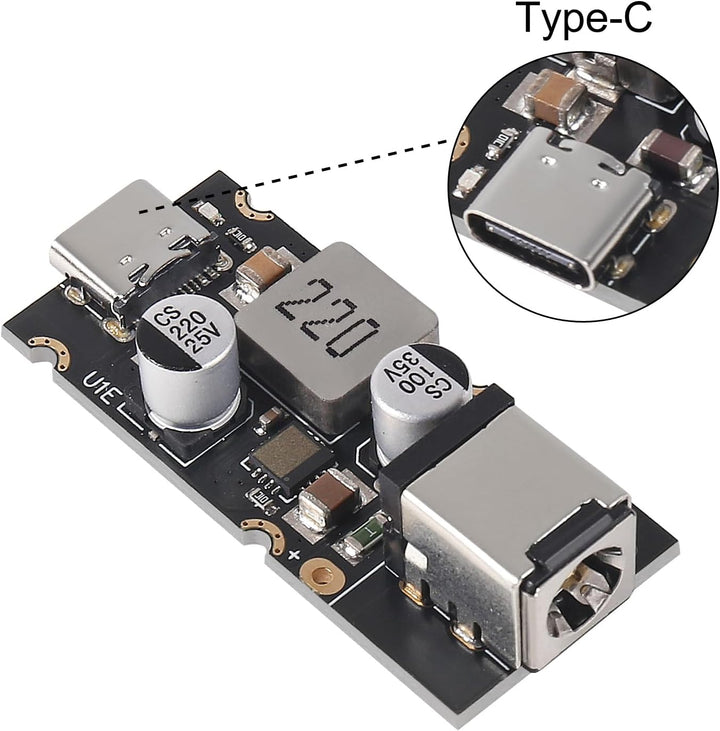

PD65W Fast Charging Adapter Module DC5521

Rs. 189.00 Rs. 160.00 SAVE 15%

Including GST (No Hidden Charges)

Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE02630
Availability : In Stock Pre order Out of stock
Categories: Battery Accessories Charging Modules and Controllers
Description

The PD65W Fast Charging Adapter Module with DC5521 Connector is a compact and highly efficient charging solution tailored for USB-C-powered devices. Featuring Power Delivery (PD) 3.1 technology, it delivers up to 65W of fast, reliable power, making it ideal for smartphones, tablets, laptops, and other portable electronics.

Operating within a wide input voltage range of 8V to 30V, this module is designed for use with DC5521 interfaces, commonly found in DC power adapters, portable solar generators, and other DC-powered systems. It’s an excellent fit for mobile charging setups, DIY battery packs, and custom power applications.

Equipped with robust built-in safety features, including overcurrent, overvoltage, and short-circuit protection, this module ensures safe charging for both your devices and power sources. Its compact and rugged design makes it well-suited for field use and embedded projects.

PD 65W Type C Interface QC 3.0 Fast Charging Module

Applications

  • Charging stations using DC5521 power input

  • DIY battery packs and portable power systems

  • Solar generator charging modules

  • Automotive or RV USB-C power solutions

  • Embedded or custom electronics projects

Features:

  1. PD 3.1 Fast Charging: Supports Power Delivery 3.1 for high-speed USB-C charging.
  2. Input Voltage Range: Operates from 8V to 30V, compatible with various power sources.
  3. 65W USB-C Output: Delivers up to 65W for fast charging of USB-C devices.
  4. DC5521 Compatibility: Designed for use with DC5521 connectors.
  5. Built-in Protections: Includes overcurrent, overvoltage, and short-circuit protection for safe operation.

Specifications

Parameter Details
Input Voltage 8V to 30V
Output Voltage 5V, 9V, 12V, 15V, 20V (Auto Negotiation)
Output Current Up to 7.22A
Output Power 65W (Max via USB-C)
Charging Protocol USB Power Delivery 3.1 (PD 3.1)
Connector Type DC5521 input, USB-C output
Protection Features Overcurrent, Overvoltage, Short-circuit
Weight Approx. 0.0 kg

Package Includes:

1 x PD65W Fast Charging Adapter Module DC5521
