PMDC INLINE-93 DC Motor 12V to 180V DC 1/10 HP Industrial Motor-RPM Range 30 to 300

Rs. 8,999.00 Rs. 7,745.00 SAVE 14%

Including GST (No Hidden Charges)

VOLTAGE : 12

12
24
48
90
180

RPM: 30

30
60
100
150
200
300
Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE75PMIN93FLANGE12V30
Availability : In Stock Pre order Out of stock
Categories: Geared Motors PMDC Industrial Motors
Description

The PMDC INLINE-93 DC Motor is an advanced industrial-grade motor designed for a wide range of applications. Operating at a versatile voltage range from 12V to 180V DC, this motor provides reliable performance and power output for various machinery. With its robust 1/10 horsepower rating and a variable RPM range of 30 to 300, it ensures smooth operation under varying load conditions, making it ideal for industrial and commercial applications. Whether you need a motor for conveyor systems, pumps, or other industrial equipment, the INLINE-93 motor guarantees exceptional reliability and efficiency.

Crafted for durability, the PMDC INLINE-93 DC Motor features precision engineering to reduce maintenance needs and increase the longevity of your operations. Its excellent torque output at lower speeds ensures high efficiency across a broad spectrum of applications.

Application:

The PMDC INLINE-93 DC Motor is ideal for a variety of industrial uses, including:

  • Conveyor belts

  • Pump systems

  • CNC machines

  • Industrial automation

  • Power tools

  • Robotics

Features:

  1. High Torque Output: Experience the benefits of superior torque output, enabling your machinery to tackle heavy loads and demanding applications with ease. This motor's robust performance ensures your operations run smoothly and efficiently.
  2. Energy Efficiency: Designed with energy conservation in mind, our PMDC Gear Motor optimizes power usage, leading to reduced energy costs and a more sustainable operation.
  3. Compact Design: The inline configuration of our gear motor minimizes space requirements, making it suitable for installations with limited room. Its compact design doesn't compromise on power, making it ideal for applications where space is a premium.
  4. Durable Construction: Built to withstand the harshest industrial environments, our gear motor boasts a rugged construction that ensures longevity and reliability, even in challenging conditions.
  5. Versatile Applications: Whether you need precise control for conveyor systems, automated machinery, or other industrial processes, our PMDC Inline Gear Motor is versatile and adaptable to a wide range of applications.

NOTE - This product is manufactured in our factory only after receiving the order. It will take 3-5 days to dispatch.

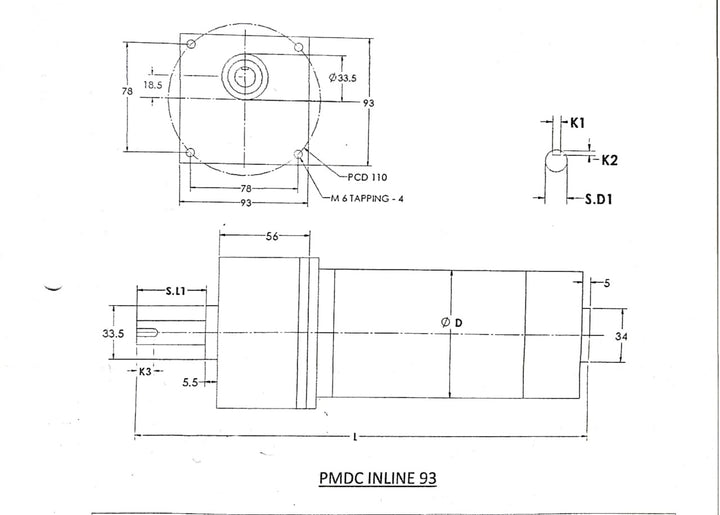

DATA SHEET:-

Specification:-

Specification Value
Horse Power (HP) 1/10 HP
Voltage Options

12V,24,48V,90V,180V
RPM Options

30,60,100,150,200,300
No Load Current
Full Load Current
Rated Torque
Rated Speed 30 To 300 RPM (depending on voltage and load)
Efficiency [Typically 70% to 85%, check datasheet for exact value]
Stall Torque 2.5 kg/cm
Stall Current
L (Length) 202 mm
D (Diameter) 80 mm
SD1 (Shaft Diameter) 12 mm
S.L1 (Shaft Length) 35 mm
K1 4
K2 2
K3 30
Insulation Class Class B / Class F (depending on manufacturer)
Ambient Temperature Range -20°C to 50°C

Package Include:-

1XPMDC INLINE-93 DC Motor 12V to 180V DC 1/10 HP Industrial Motor-RPM Range 30 to 300

Additional Information
VOLTAGE

12, 24, 48, 90, 180
RPM

30, 60, 100, 150, 200, 300
