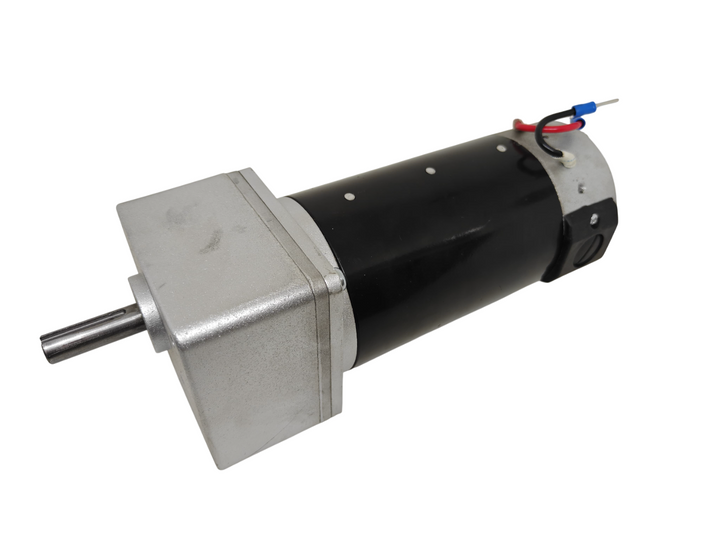

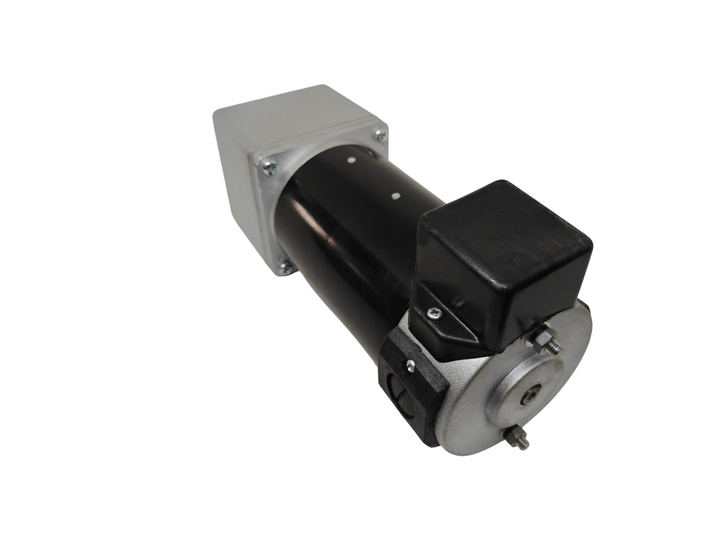

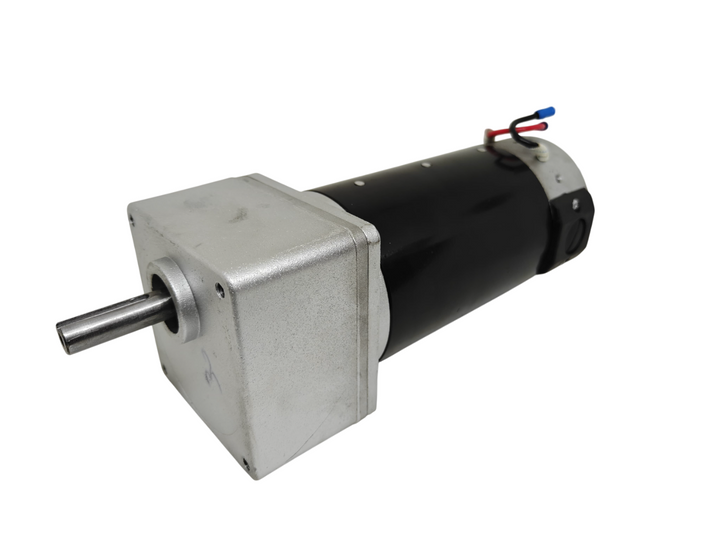

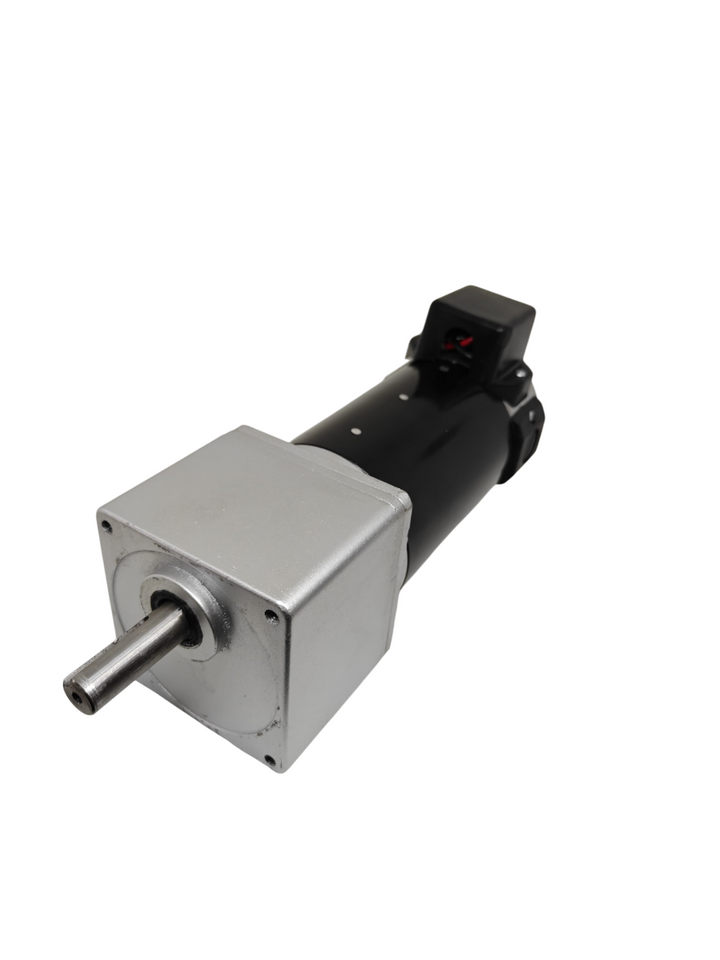

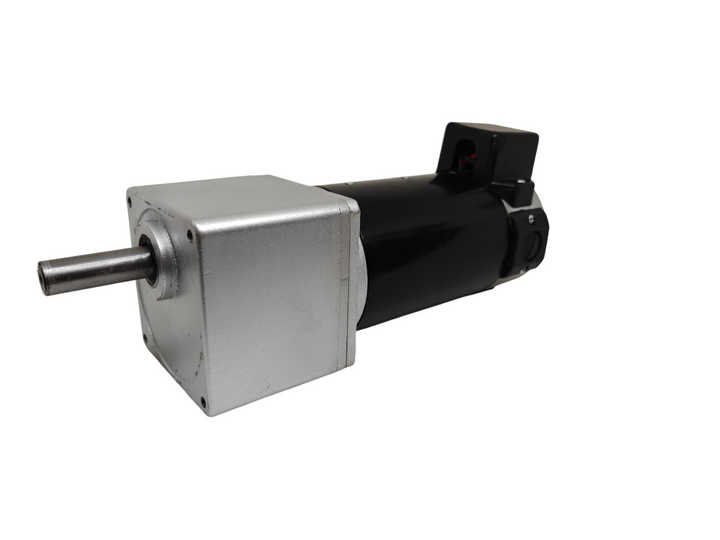

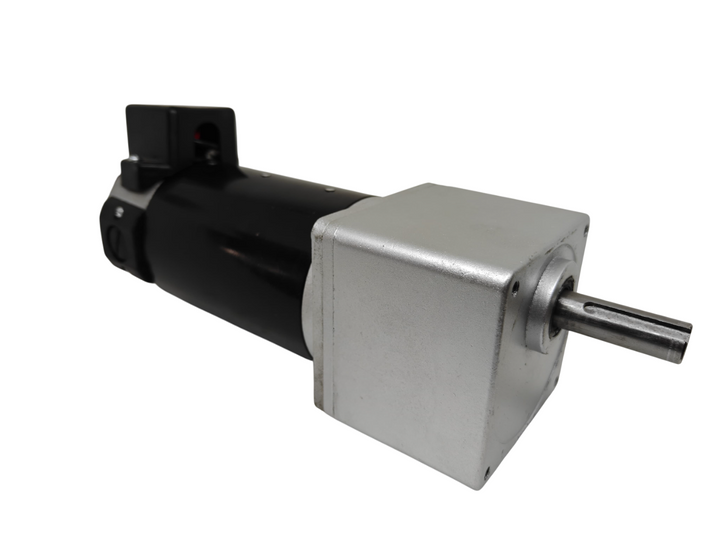

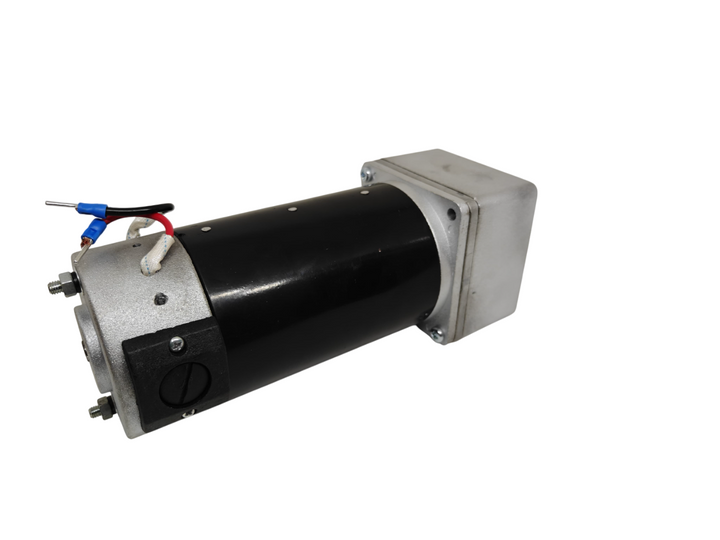

PMDC INLINE-93 HV-1 DC Motor 12V to 180V DC 1/6 HP Industrial Motor-RPM Range 5 to 20

Rs. 12,999.00 Rs. 11,615.00 SAVE 11%

Including GST (No Hidden Charges)

VOLTAGE : 12

12
24
48
90
180

RPM: 5

5
10
20
Add to Wishlist

Checkout securely with

Ask a Question
SKU: BE124PMIN93HV1FLANGE12V5
Availability : In Stock Pre order Out of stock
Categories: Geared Motors PMDC Industrial Motors
Description

The PMDC INLINE-93 HV-1 DC Motor is a high-quality, industrial-grade motor designed for applications that require precise, low-speed motion control with flexible voltage input. This motor operates within a wide voltage range of 12V to 180V DC, offering compatibility with various power systems across different industrial settings. With a power rating of 1/6 horsepower (HP) and an RPM range of 5 to 20, the INLINE-93 motor is ideal for slow-moving machinery and automated processes where smooth, controlled movement is necessary.

The Permanent Magnet DC (PMDC) construction of the INLINE-93 HV-1 motor provides superior durability and energy efficiency. PMDC motors are well-regarded for their reliability, offering lower maintenance requirements and longer operational life compared to other motor types. Additionally, this motor's design ensures excellent starting torque, making it suitable for applications that require startup under load.

Application:

  1. Pump systems
  2. CNC machines
  3. Industrial automation
  4. Power tools
  5. Robotics
  6. Conveyor belts

Features:

  1. High Torque Output: Experience the benefits of superior torque output, enabling your machinery to tackle heavy loads and demanding applications with ease. This motor's robust performance ensures your operations run smoothly and efficiently.
  2. Energy Efficiency: Designed with energy conservation in mind, our PMDC Gear Motor optimizes power usage, leading to reduced energy costs and a more sustainable operation.
  3. Compact Design: The inline configuration of our gear motor minimizes space requirements, making it suitable for installations with limited room. Its compact design doesn't compromise on power, making it ideal for applications where space is a premium.
  4. Durable Construction: Built to withstand the harshest industrial environments, our gear motor boasts a rugged construction that ensures longevity and reliability, even in challenging conditions.
  5. Versatile Applications: Whether you need precise control for conveyor systems, automated machinery, or other industrial processes, our PMDC Inline Gear Motor is versatile and adaptable to a wide range of applications.

NOTE - This product is manufactured in our factory only after receiving the order. It will take 3-5 days to dispatch.

DATA SHEET:-

Specification:-

Specification Value
Horse Power (HP) 1/6 HP
Voltage Options

12V,24,48V,90V 180V
RPM Options

5,10,20
No Load Current
Full Load Current
Rated Torque
Rated Speed 5 To 20 RPM (depending on voltage and load)
Efficiency [Typically 70% to 85%, check datasheet for exact value]
Stall Torque

4 kg/cm
Stall Current

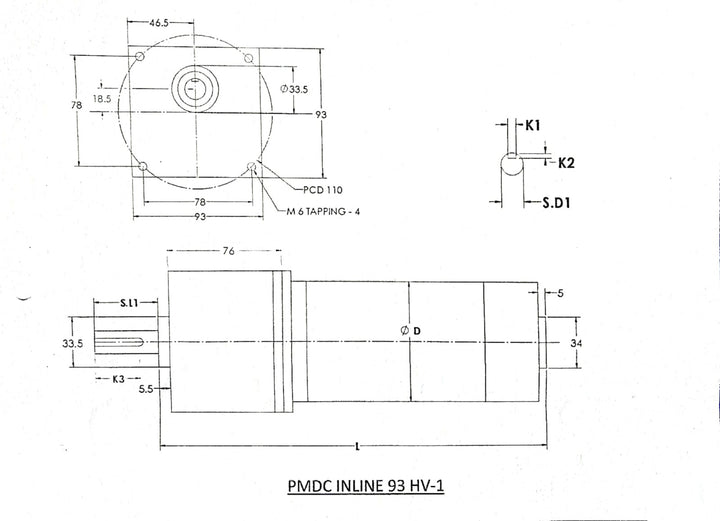

L (Length) 259 mm
D (Diameter) 80 mm
SD1 (Shaft Diameter) 15 mm
S.L1 (Shaft Length) 40 mm
K1 5
K2 2.5
K3 30
Insulation Class Class B / Class F (depending on manufacturer)
Ambient Temperature Range -20°C to 50°C

Package Include:-

1XPMDC INLINE-93 HV-1 DC Motor 12V to 180V DC 1/6 HP Industrial Motor-RPM Range 5 to 20

Additional Information
VOLTAGE

12, 24, 48, 90, 180
RPM

5, 10, 20
