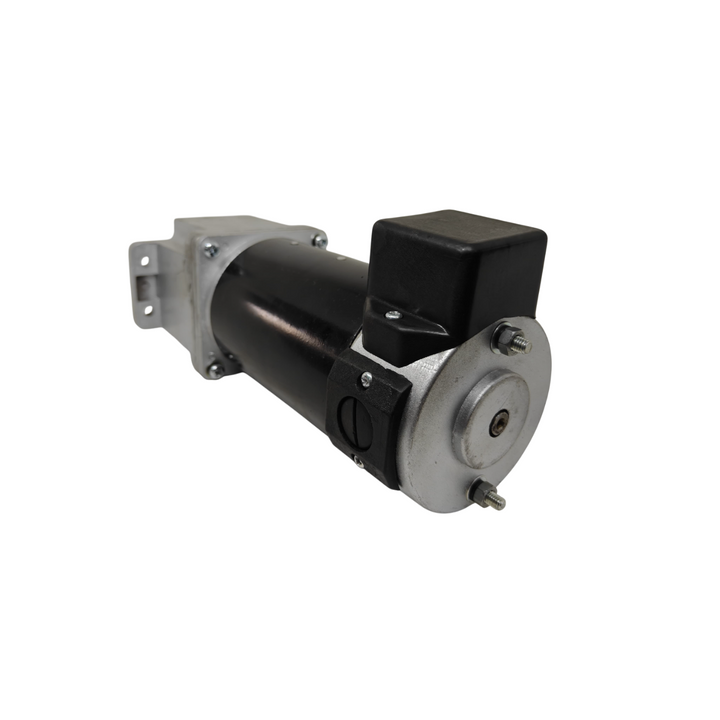

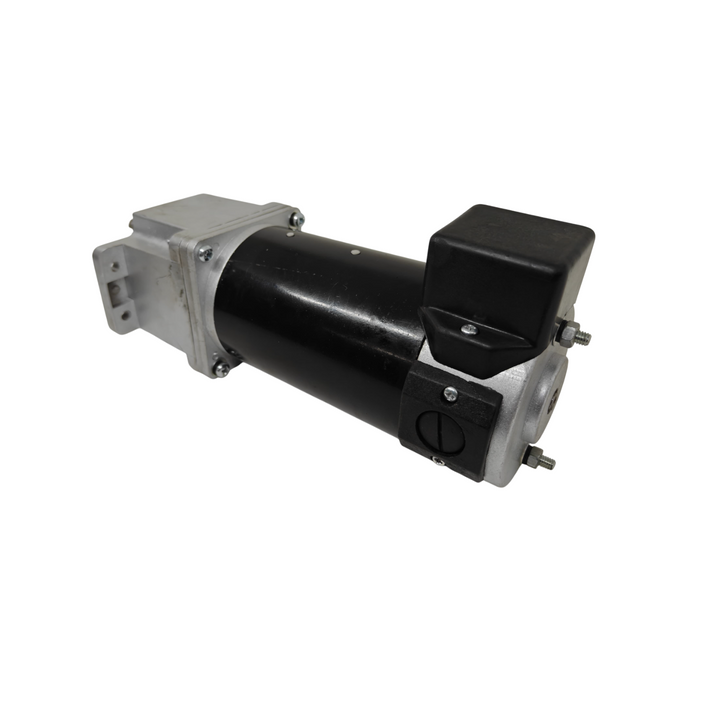

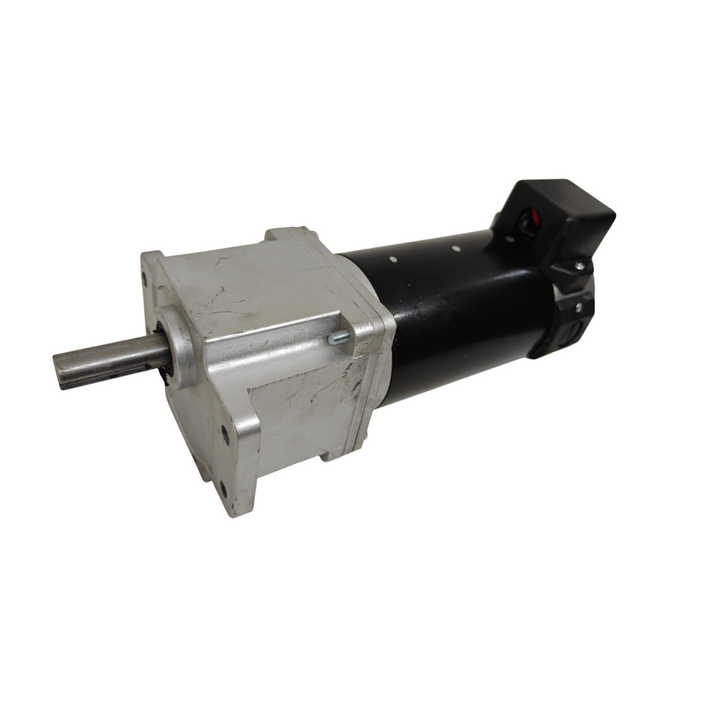

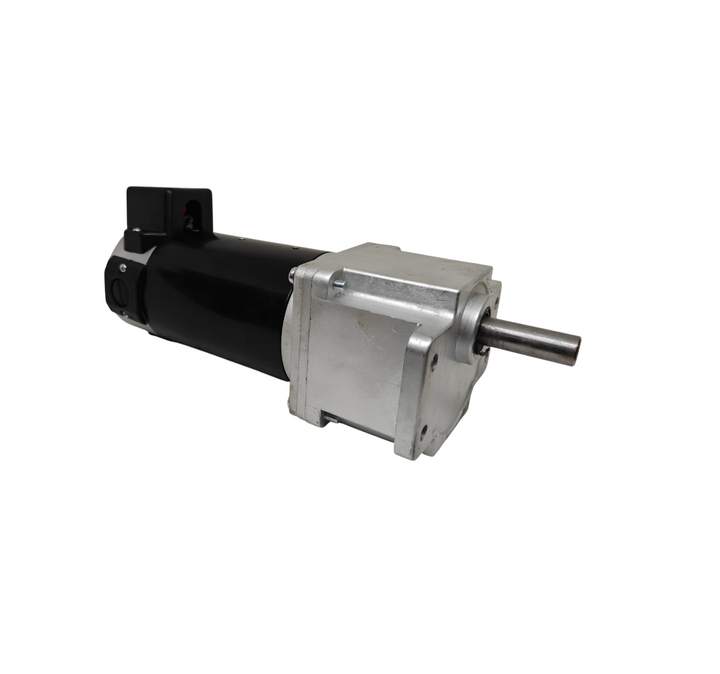

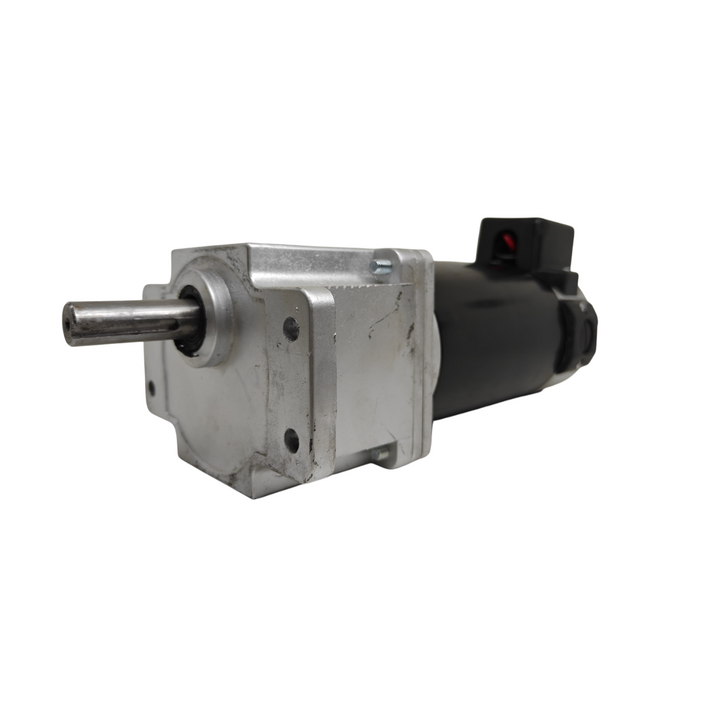

PMDC INLINE-93 HV-2 DC Motor 12V to 180V DC 1/4 HP Industrial Motor-RPM Range 5 to 20

Rs. 14,999.00 Rs. 12,905.00 SAVE 14%

Including GST (No Hidden Charges)

VOLTAGE: 12

12
24
48
90
180

RPM: 5

5
10
20
Add to Wishlist

Checkout securely with

SKU: BE186PMIN93HV2FLANGE12V5
Availability : In Stock Pre order Out of stock
Description

The PMDC INLINE-93 HV-2 is a versatile Permanent Magnet DC (PMDC) motor, designed for industrial applications requiring low-speed, high-torque operation. With an input voltage range from 12V to 180V DC, this 1/4 HP motor delivers reliable performance across a broad range of speeds from 5 RPM to 20 RPM. This motor is ideal for applications such as conveyors, robotics, automated systems, and other machinery where precise, low-speed motion is required. The INLINE-93 HV-2 features a robust, high-efficiency design, ensuring durability and performance in demanding industrial environments.

The motor’s high-torque characteristics at low RPM make it suitable for situations where heavy loads need to be moved slowly but with consistent power. It is built to withstand continuous operation, ensuring long-term reliability in commercial and industrial settings.

Application:

  1. Pump systems
  2. CNC machines
  3. Industrial automation
  4. Power tools
  5. Robotics
  6. Conveyor belts

Features:

  1. High Torque Output: Experience the benefits of superior torque output, enabling your machinery to tackle heavy loads and demanding applications with ease. This motor's robust performance ensures your operations run smoothly and efficiently.
  2. Energy Efficiency: Designed with energy conservation in mind, our PMDC Gear Motor optimizes power usage, leading to reduced energy costs and a more sustainable operation.
  3. Compact Design: The inline configuration of our gear motor minimizes space requirements, making it suitable for installations with limited room. Its compact design doesn't compromise on power, making it ideal for applications where space is a premium.
  4. Durable Construction: Built to withstand the harshest industrial environments, our gear motor boasts a rugged construction that ensures longevity and reliability, even in challenging conditions.
  5. Versatile Applications: Whether you need precise control for conveyor systems, automated machinery, or other industrial processes, our PMDC Inline Gear Motor is versatile and adaptable to a wide range of applications.

NOTE - This product is manufactured in our factory only after receiving the order. It will take 3-5 days to dispatch.

DATA SHEET:-


Specification:-

Specification Value
Horse Power (HP) 1/4 HP
Voltage Options

12V,24,48V,90V 180V

RPM Options

5,10,20

No Load Current
Full Load Current
Rated Torque
Rated Speed 5 To 20 RPM (depending on voltage and load)
Efficiency [Typically 70% to 85%, check datasheet for exact value]
Stall Torque

6 kg/cm

Stall Current
L (Length) 265 mm
D (Diameter) 90 mm
SD1 (Shaft Diameter) 15 mm
S.L1 (Shaft Length) 40 mm
K1 5
K2 2.5
K3 30
Insulation Class Class B / Class F (depending on manufacturer)
Ambient Temperature Range -20°C to 50°C

Package Include:-

1XPMDC INLINE-93 HV-2 DC Motor 12V to 180V DC 1/4 HP Industrial Motor-RPM Range 5 to 20







Additional Information
VOLTAGE

12, 24, 48, 90, 180

RPM

5, 10, 20
