Radxa E24C High-Performance (2GB RAM) AI Edge Compact & Robust for Next-Gen Networking
Including GST (No Hidden Charges)
Checkout securely with
4× Gigabit Ethernet Ports for Flexible Networking
With four 10/100/1000 Mbps RJ45 ports, the E24C supports dynamic WAN/LAN configurations under
OpenWrt, making it ideal for soft routers, firewalls, and VPN gateways.
Supports link aggregation, load balancing, and redundancy to ensure
stable and efficient network performance.
Efficient and Low-Power ARM Computing Platform
Powered by a quad-core Cortex-A53 CPU and Mali-450 GPU, the E24C delivers sufficient processing power
for networking, encryption, lightweight AI inference, and edge computing tasks.
Supports 4K video decoding and 1080p encoding, enabling light multimedia applications.
Quad Core
A53, ARM, Mali-G450
High-Speed NVMe SSD Storage Expansion
The onboard M.2 M-Key slot supports standard 2280 NVMe SSDs via a PCIe 2.1 x1 interface,
meeting high-speed read/write requirements.
Supports up to 4GB RAM
Storage Expansion up to 4TB NVMe SSD
Rich I/O for Flexible Integration
Features HDMI 2.1 output, USB 2.0 ports, microSD slot, debug Type-C port, and a 14-pin GPIO header for
versatile application needs.

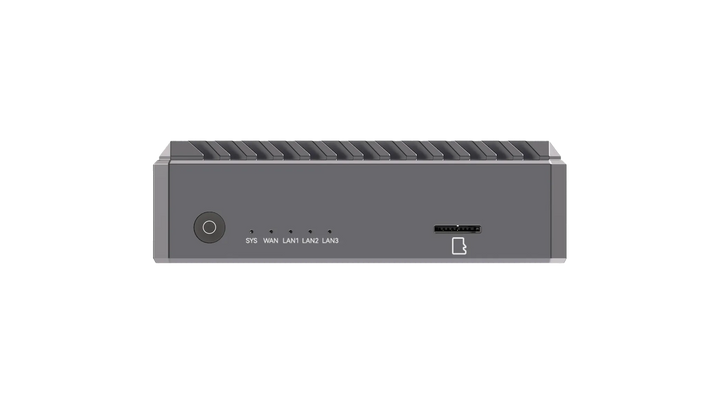

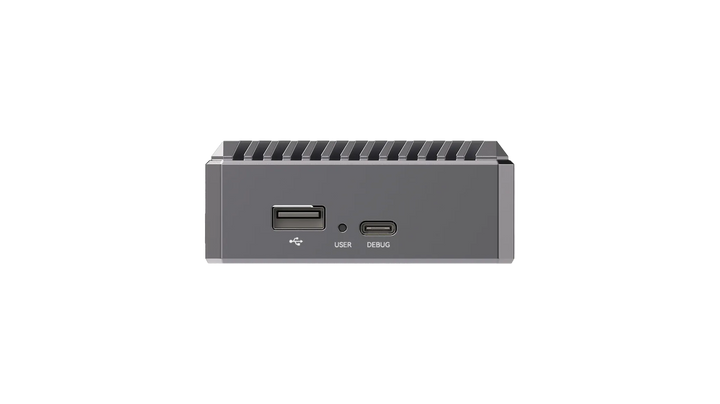

- LED Indicator
- microSD Slot
- USB 2.0 Type-A Port
- User Key
- USB 2.0 Type-C device and debug combo port

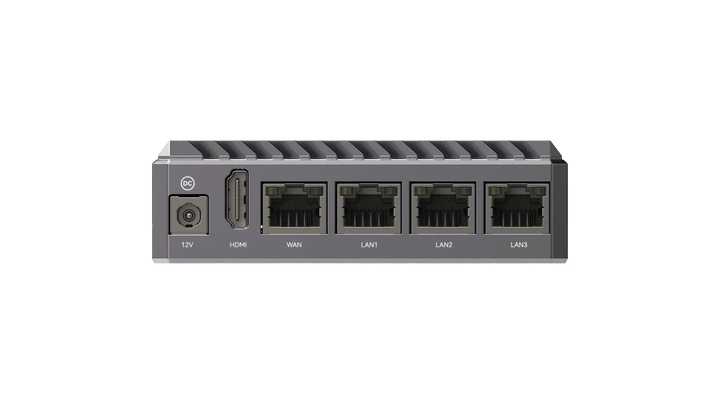

- 12V DC (5.5x2.5mm) Port
- HDMI Port
- GbE WAN Port
- 3x GbE LAN Port
- USB 2.0 Port

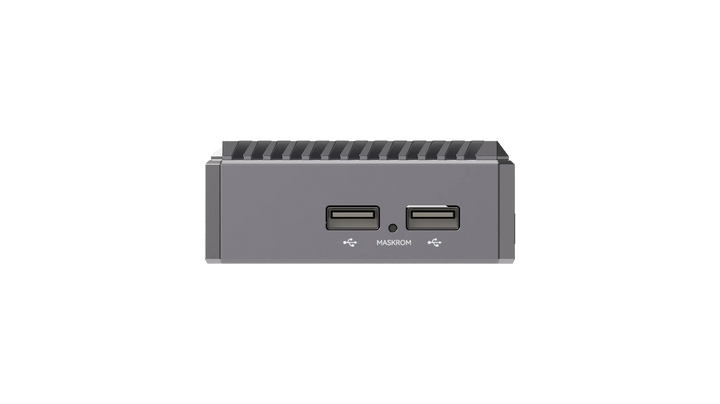

- Maskrom Emergency Download Key
- USB 2.0 Port

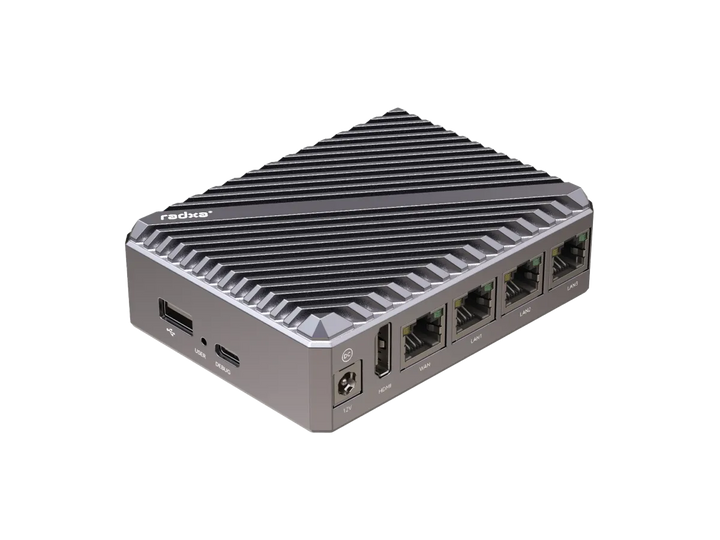

Industrial-grade Design
The high thermal conductivity aluminum enclosure enables fanless and silent cooling, ideal for
continuous 24/7 industrial deployments.
Compact design suitable for wall-mounting or rack integration for flexible deployment.
Native Support for Linux and OpenWrt
Official Debian Linux and OpenWrt images are provided, ensuring compatibility with mainstream networking
protocols and easy deployment.
Comes with hardware access libraries and open SDKs, developer-friendly.
Debugging Without Disassembly via
Dual-Purpose Type-C Port
Equipped with a dual-purpose Type-C port combining USB 2.0 OTG and UART debugging, allowing direct
data access and serial console without disassembling the device, greatly improving development and
on-site maintenance efficiency.
Guaranteed Supply Until 2030
Ideal for enterprise, government, and industrial-grade applications.
Operates from
0°C to 50°C guaranteed availability
until at least 2030
Radxa guarantees supply of the E24C until at least September 2030, ensuring stability for long-term
deployments and volume projects.
Comprehensive Technical Documentation and
Active Community
Comprehensive Technical Documentation and Active Community !
Radxa provides comprehensive technical documentation, empowering users to fully utilize their products. At the same time, they actively maintain an engaged community, fostering communication and collaboration among users.
Interface
Applications
-
High-speed networking and routing solutions
-
Edge computing & IoT gateways
-
Multimedia streaming at 4K resolution
-
Industrial and embedded automation systems
-
Compact server and NAS applications
Key Features
-
Processor: Rockchip RK3528A SoC with Quad-Core ARM Cortex-A53
-
Graphics: ARM Mali-450 GPU with OpenGL ES 1.1/2.0 & OpenVG 1.1
-
Memory Options: LPDDR4 (1GB / 2GB / 4GB)
-
Storage: eMMC (8GB / 16GB / 32GB), microSD, and M.2 NVMe SSD (PCIe Gen2 ×1, 2280 size)
-
Networking: 4× Gigabit Ethernet Ports
-
Display: HDMI 2.1, up to 4K output
-
USB Connectivity: 1× Type-C OTG + 3× Type-A USB 2.0
-
Cooling: Aluminum Alloy Case for passive heat dissipation
-
OS Support: Radxa OS / Flippy OpenWrt
Technical Specifications
| Category | Details |
|---|---|
| SoC | Rockchip RK3528A |
| CPU | Quad-core ARM Cortex-A53 |
| GPU | ARM Mali-450 (OpenGL ES1.1/ES2.0, OpenVG 1.1) |
| RAM | 1GB / 2GB / 4GB LPDDR4 |
| Storage | Onboard eMMC (8GB / 16GB / 32GB), 1× microSD, 1× M.2 M-Key (NVMe SSD, PCIe Gen2 ×1, 2280) |
| Multimedia | H.264/H.265/AVS2 decoder 4K@60fps, H.264/H.265 encoder 1080p@60fps |
| USB Ports | 1× USB 2.0 Type-C OTG, 3× USB 2.0 Type-A Host |
| Ethernet | 4× Gigabit Ethernet Ports |
| Buttons | Power Button, Maskrom Button, User Button |
| Display Output | 1× HDMI 2.1 (up to 4K) |
| Other I/O | 1× Fan Header, 1× RTC Battery Connector, 5× LED Indicators, 14-Pin GPIO (SPI, UART, I2C, 5V/3.3V Power Out) |
| Power Supply | 12V DC Jack (5525) |
| Operating System | Radxa OS / Flippy OpenWrt |
| Cooling | Aluminum Alloy Case |
| Protection | Efficient passive heat dissipation |
Package Includes
-
1 × E24C Networking Board
| RAM |
2GB |
|---|
