Radxa ZERO 3E Single-Board Computer (SBC) Raspberry Pi Alternative Rockchip RK3566 (1GB/2GB/4GB RAM) A Light, Compact and Tiny SBC
Including GST (No Hidden Charges)
Checkout securely with
The Radxa ZERO 3E is a high-performance Single Board Computer (SBC) designed with a compact form factor to offer exceptional computational power. It is tailored to meet the needs of a diverse range of users, including makers, IoT developers, hobbyists, and PC DIY enthusiasts.
This SBC is optimized for the development, prototyping, and deployment of various applications, making it a reliable and versatile platform for transforming innovative ideas into functional solutions. Its superior mechanical compatibility ensures easy integration into existing setups, providing the foundation needed for scalable, efficient projects.
Powerful Multimedia Processing Capability
H.264/H.265 decoder up to 4K@60fps
H.264/H.265 encoder up to 1080P@60fps
Precision and Clarity, Flowing with Natural Ease
1080P@60fps via Micro HDMI
Wired Connection
More Stable and Low Latency
One Network Cable Solves Power Supply and Network
Gigabit Ethernet Port with PoE Support(Additional PoE Support)
Multifunctional USB Interface
High-Definition Image Capture, Within Reach
Bringing Every Photo to Life!
22-Pin MIPI CSI with 0.5mm Pitch
OS Bootable from Micro SD Card
Feature:-
- The Radxa ZERO 3W/3E is an ultra-small, high-performance single board computer based on the Rockchip RK3566, with a compact form factor and rich interfaces.
- Tailored for a diverse user base including manufacturers, IoT developers, hobbyists, and PC DIY enthusiasts, the Radxa ZERO 3W/3E is an ultra-small, versatile platform that can be used for a wide variety of applications, including IoT devices, machine learning edge computing, home automation, education, and entertainment.
- The ZERO 3W and ZERO 3E are basically the same size and model, but differ only in storage and network interfaces. For details, please refer to the Features section of this article.
Data Sheet:- Click Here

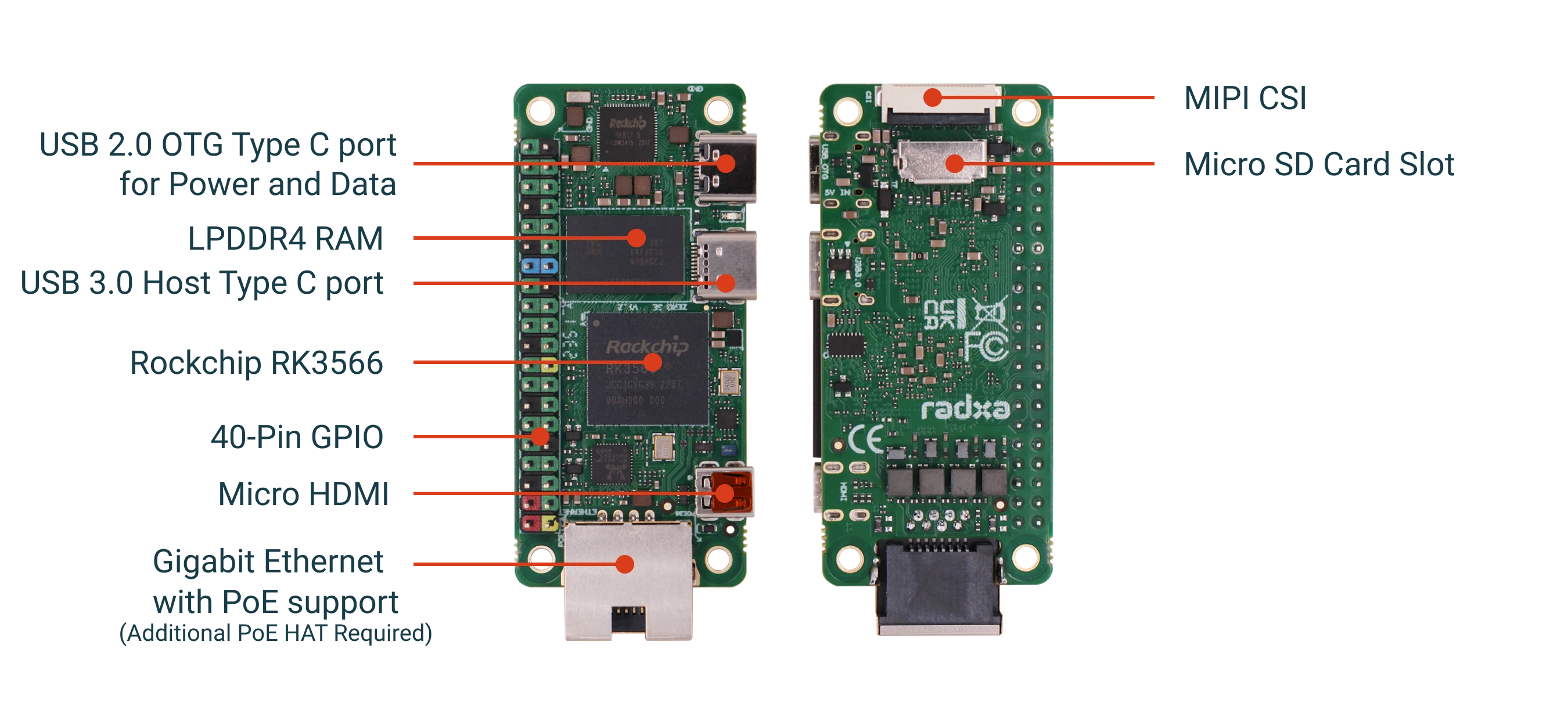

Interface
Specification:-
| Category | Specification |
|---|---|
| SoC | Rockchip RK3566 |
| CPU | Quad-core Arm® Cortex®-A55 (Armv8) 64-bit @ 1.6GHz |
| GPU | Arm® Mali™-G52-2EE |
| Graphics Support | OpenGL® ES 1.1 / 2.0 / 3.0 / 3.1 / 3.2 Vulkan® 1.1 OpenCL™ 2.0 |
| Memory (RAM) | 1GB / 2GB / 4GB / 8GB LPDDR4 |
| Storage | 1x Micro SD Card Slot |
| Ethernet | 1x Gigabit Ethernet |
| PoE Support | Yes, with additional PoE HAT required |
| USB Ports | 1x USB 2.0 Type-C OTG 1x USB 3.0 Type-C Host |
| Display Output | 1x Micro HDMI, supports 1080P @ 60fps |
| Camera Input | 1x MIPI CSI Camera Port |
| Connectivity | 40x GPIO pins (supports multiple interfaces) Up to 5x UART 1x SPI Up to 2x I2C 1x PCM/I2S Up to 6x PWM Up to 28x GPIO 2x 5V DC input 2x 3.3V power pin |
| Operating Temperature | 0 ~ 50°C (recommended) |
| Max Temperature | 80°C (Throttles clock speed beyond this temperature) |
| Cooling | External cooling solutions (heat sinks, fans) recommended for continuous high-performance use |
| Software Support | Debian / Linux / Android |
| Dimensions | 72 mm × 30 mm |
Package Include:-
1xRadxa ZERO 3E Single-Board Computer (SBC) Raspberry Pi Alternative Rockchip RK3566 (2GB/4GB RAM) A Light, Compact and Tiny SBC
| RAM |
1GB, 2GB, 4GB |
|---|
