SEA YF-DN40-S-SM Stainless Steel Water Flow Sensor Flowmeter G1.5 inch G11/2 5- 150L/Min
Including GST (No Hidden Charges)
Checkout securely with

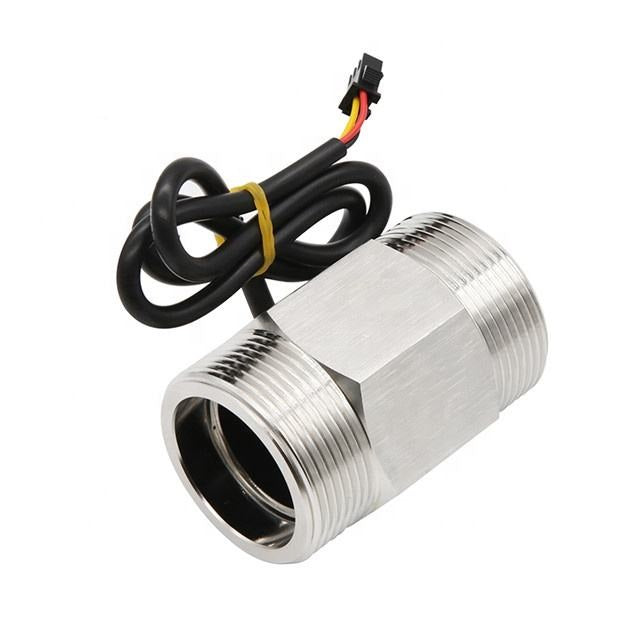

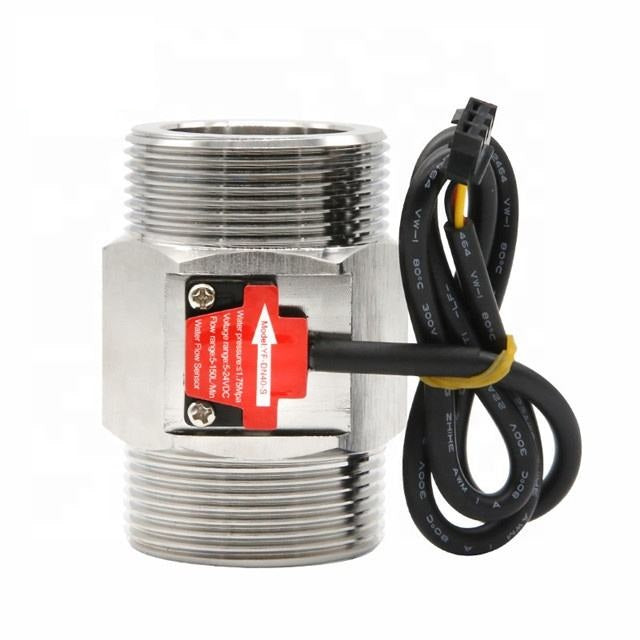

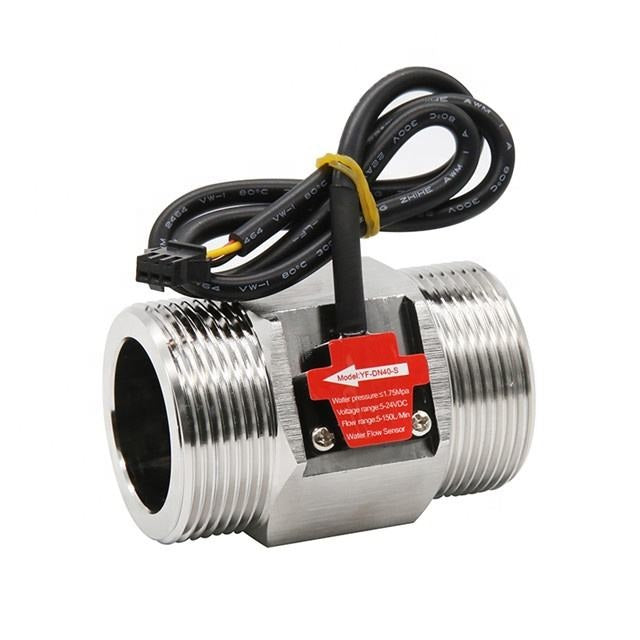

The SEA YF-DN40-S-SM Stainless Steel Water Flow Sensor is a high-capacity turbine flowmeter designed to measure water flow accurately in large-diameter industrial or commercial systems. Constructed from durable 304 stainless steel, this sensor is resistant to corrosion, mechanical wear, and harsh operating environments.

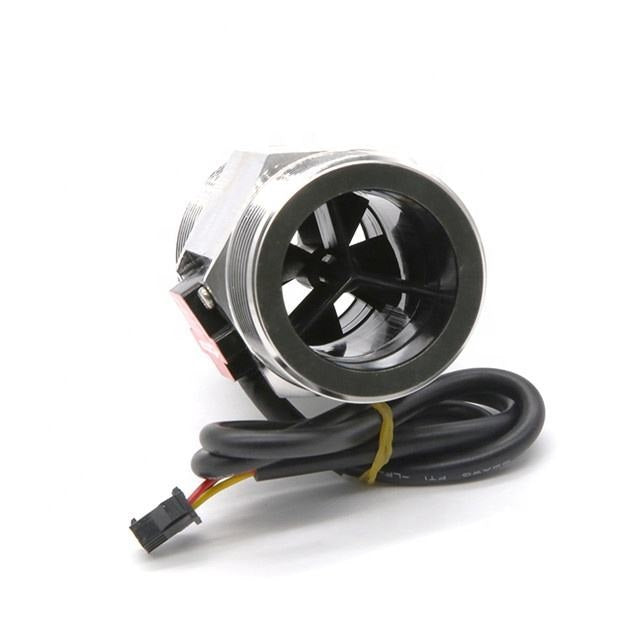

It is designed with an integrated hall-effect sensor and turbine assembly housed within a G1.5 inch threaded body, allowing precise monitoring of high-volume water flow. As water passes through the sensor, the turbine rotates, generating a digital NPN pulse output that reflects the actual flow rate.
Operating at a working voltage of 3.5 to 24V DC, it supports flow rates from 5 to 150 liters per minute, with a pulse output of approximately 27 pulses per liter. Its frequency output is around 0.45 Hz per liter per minute, with a maximum working temperature of 100 Celsius and pressure resistance up to 1.75 MPa.
This sensor is ideal for integration into smart metering systems, vending machines, filtration plants, and high-flow industrial automation.
Applications
- Industrial liquid flow control systems
- Water purification and filtration equipment
- Process automation and dosing systems
- HVAC and cooling systems
- Smart agriculture and irrigation
Features
- G1.5 inch inlet and outlet for high-volume applications
- Made with 304 stainless steel for durability and chemical resistance
- Wide operating voltage from 3.5 to 24 volts DC
- Flow range supported from 5 to 150 liters per minute
- NPN hall-effect pulse output with 27 pulses per liter
- Frequency coefficient of 0.45 Hz per liter per minute
Comparison Table: Brass vs. Stainless Steel Water Flow Sensors
| Feature | Brass | Stainless Steel |
|---|---|---|
| Corrosion Resistance | Good (for clean/fresh water) | Excellent (suitable for harsh fluids) |
| Durability | Moderate | High |
| Cost | Lower (budget-friendly) | Higher (premium-grade) |
| Weight | Lighter | Heavier |
| Application | Domestic, general-purpose use | Industrial, marine, high-pressure |
| Lifespan | Moderate | Long-lasting |
Note: Choose brass for household or standard water systems. Opt for stainless steel in corrosive, high-pressure, or industrial environments.
Specifications
| Parameter | Specification |
|---|---|
| Model Number | YF-DN40-S-SM |
| Material | 304 Stainless Steel |

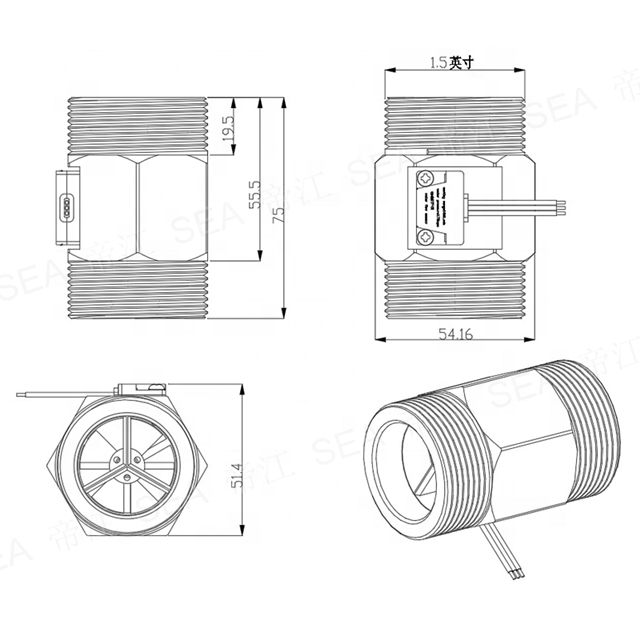

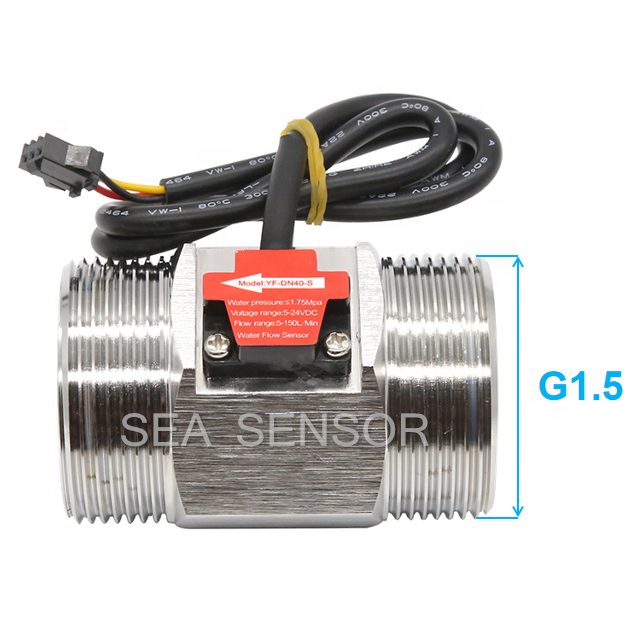

| Pipe Size | G1.5 inch BSP Thread |
| Flow Rate Range | 5 to 150 liters per minute |
| Operating Voltage | DC 3.5 to 24V |
| Working Current | Less than 10 milliamp |
| Output Type | NPN Pulse Output |
| Output Pulse High | Below DC 4.7V at 5V input |
| Output Pulse Low | Below DC 0.5V at 5V input |
| Frequency Coefficient | 0.45 hertz per liter per minute |
| Flow Pulse Output | 27 pulses per liter |
| Accuracy | Plus minus 5 percent |
| Max Pressure | Up to 1.75 megapascal |
| Temperature Range | Minus 20 to 100 Celsius |
| Cable and Connector | SM-3P PVC Cable, 50 centimeter |
| Wire Mapping | Red for VCC, Black for GND, Yellow for Signal |
Package Include
1XSEA YF-DN40-S-SM Stainless Steel Water Flow Sensor Flowmeter G1.5 inch G11/2 5- 150L/Min
