Radxa Camera 4K Single-Board Computer (SBC) Raspberry Pi Alternative Compatible with ROCK 5A / 5B IMX 415
Including GST (No Hidden Charges)
Checkout securely with

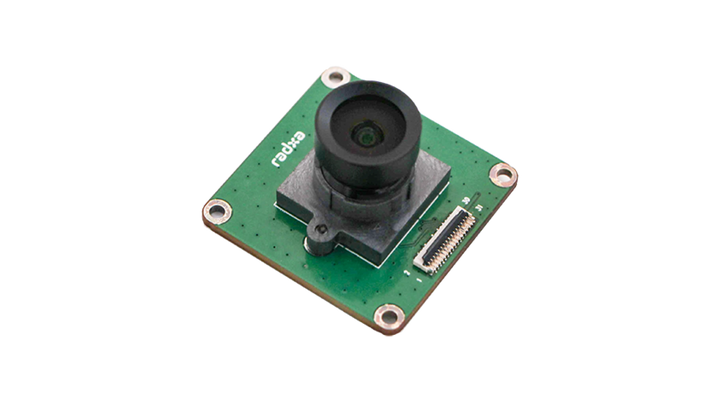

Radxa Camera 4K is an high resolution camera module for Radxa products powered by a Sony IMX415 image sensor with 8.29M pixels and up to 4K resolution. Radxa Camera 4K Module is capable of the following applications:
・ Surveillance cameras
・ FA cameras
・ Industrial cameras
Compatible with ROCK 5A / 5B
Feature:-
-
Strong Low-Light Performance
Equipped with SONY's STARVIS technology, this sensor can capture clear images in low light conditions, making it ideal for night surveillance.
-
High Frame Rate
The IMX415 can reach a maximum frame rate of 90 frames per second, allowing it to capture fast-moving scenes such as vehicles or pedestrians.
(High dynamic range)HDR
(HDR) High Dynamic Range refers to an image processing technique that increases the dynamic range of an image in a camera or monitor to produce more realistic colors and details.
Applications
-
Industrial Camera
-
Smart Access Control System
-
Monitoring Devices
Sensor Specifications:
| Specification | Details |
|---|---|
| Sensor | SONY IMX415 |
| Resolution | 8.29 MP (Megapixels) |
| Lens Interface | M12XP0.5 |
| Focal Length (EFL) | 2.95±5% mm |
| Back Focal Length (BFL) | 4.64 mm |
| Flange Back Length (FBL) | 4.00 mm |
| Operating Temperature | -40°C ~ +85°C (Single lens) |
| Field of View | Diagonal: 88.2±5°, Horizontal: 75±3°, Vertical: 59±2° |

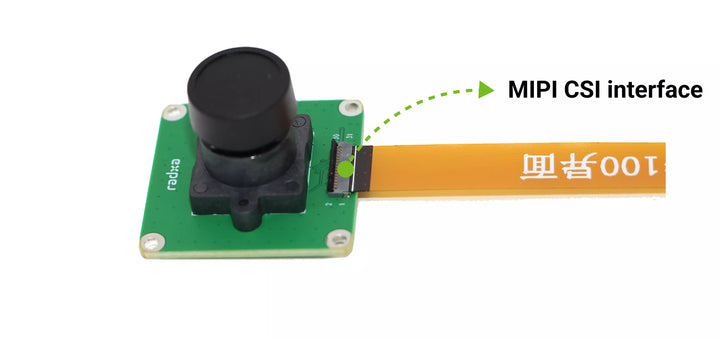

| FPC Cable | 31P 0.3mm to 31P 0.3mm FPC cable, 150mm long |
| Compatibility | ROCK 5A / 5B |
| Dimensions | 32mm x 32mm |
Package Include:-
1xRadxa Camera 4K Single-Board Computer (SBC) Raspberry Pi Alternative Compatible with ROCK 5A / 5B IMX 415
