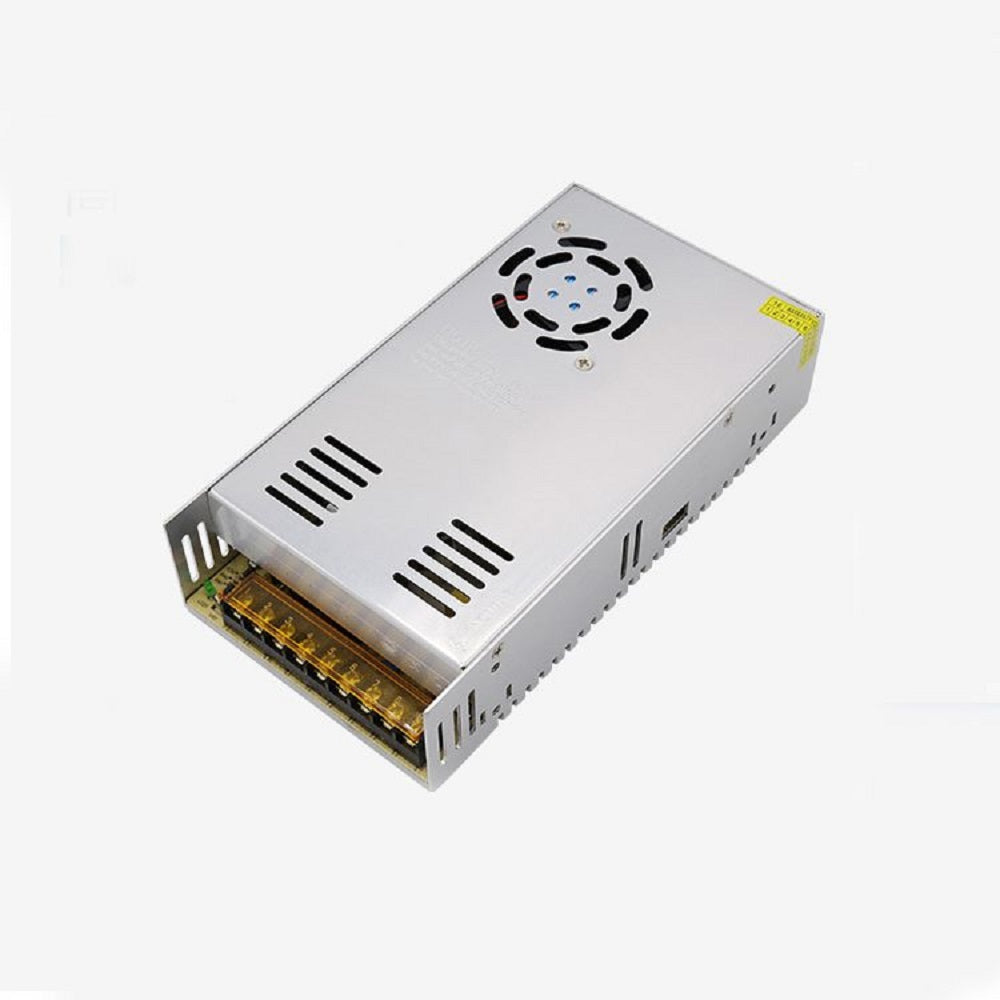

METEK 12V 30A 360W AC 110V-220V SMPS Industrial Power Supply - WITH FAN
Including GST (No Hidden Charges)
Checkout securely with
Description
The METEK 12V 30A 360W SMPS Industrial Power Supply is designed to convert AC voltage (110V-220V) into a stable 12V DC output with a maximum current capacity of 30A, making it ideal for high-power industrial applications. With 360W of power output and a built-in fan for efficient cooling, this power supply is well-suited for applications like industrial machinery, LED lighting, and high-power electronics. The unit is engineered with safety features such as overload, short-circuit, and overvoltage protection to ensure reliable operation in demanding environments.
Short Features:
- Wide Input Voltage Range: AC 110V-220V, suitable for both 115V and 230V AC input.
- High Power Output: Provides 12V DC at a maximum of 30A, offering 360W of power.
- Built-in Cooling Fan: Ensures efficient heat dissipation for reliable long-term operation.
- Overload, Short-Circuit, and Overvoltage Protection: Safeguards the power supply and connected devices.
- Low Ripple and Noise: Provides stable output with minimal ripple (150mVp-p).
- Industrial Design: Rugged and compact, designed for industrial and high-demand applications.
Short Applications:
- Industrial Equipment: Powers industrial machinery, robotics, and automation systems.
- LED Lighting: Ideal for large-scale 12V LED strips, commercial lighting, and signage.
- CCTV Systems: Provides stable power to 12V cameras and surveillance systems.
- Networking and Servers: Perfect for powering high-performance routers, modems, and servers.
- Electronics Projects: Suitable for powering high-power DIY projects, prototypes, or lab equipment.
Specifications:
| Attribute | Specification |
|---|---|
| Input Voltage Range | AC 110V/220V ±15% (switch replacement) |
| Input Current | 6.5A / 115V, 4A / 230V |
| Frequency | 50/60Hz |
| Efficiency | 87% typ (230VAC Full Load) |
| Inrush Current | 25A/115V, 50A/230V (cold start) |
| Leakage Current | <3.5mA / 240VAC |
| Output Voltage | +12V DC |
| Output Current | 30A (Maximum) |
| Current Range | 0-30A |
| Rated Power | 360W |
| Start Time / Hold-up Time | Ton ≤ 200ms, Td ≥ 30ms @ 230V AC Full Load |
| Rise Time | Typ: 100ms @ 230V AC Full Load |
| Ripple/Noise | 150mVp-p |
| Cooling Method | Built-in fan for active cooling |
| Safety Protections | Overload, Short-Circuit, Overvoltage Protection |
| Operating Temperature | -10°C to 60°C (ambient temperature) |
| Screw Terminal Number | 9 terminals for wiring |
| Material | Metal housing, Electronic parts |
| Main Color | Silver Tone |
| Dimensions | Compact, industrial design (dimensions vary by model) |
Package Includes:
- 1 x METEK 12V 30A 360W SMPS Industrial Power Supply with Fan
