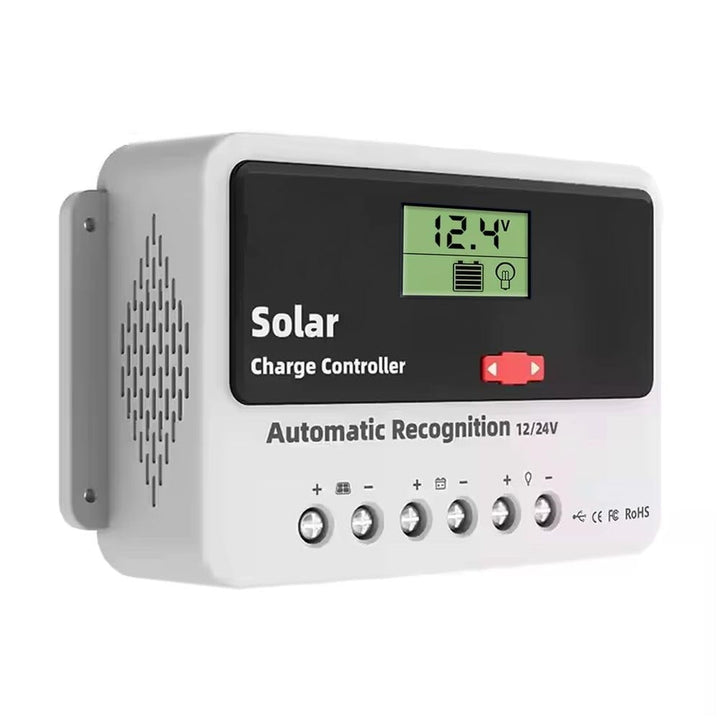

Solar Charge Controller 60A, Intelligent Battery Regulator for Solar Panel LCD Display with USB Port 12V/24V/48V, 2.9kW (60A)
Including GST (No Hidden Charges)
Checkout securely with
The Solar Charge Controller 60A is an advanced and high-capacity smart battery regulator designed to efficiently manage power flow in medium to large solar systems. Compatible with 12V, 24V, and 48V battery systems (auto-detect), it ensures seamless integration into a wide range of solar setups—from residential systems to RVs, boats, and remote installations.
Featuring an intelligent LCD display, the controller provides real-time monitoring of system parameters including battery voltage, solar input, charging current, and load output. It supports a maximum current of 60A and a solar panel capacity of up to 2.9kW, making it suitable for high-demand applications.
With built-in safety functions including overcharge, over-discharge, short circuit, and reverse polarity protection, this controller not only safeguards your equipment but also prolongs battery life. It includes preset equalization modes tailored for sealed, gel, and flooded lead-acid batteries, and features a USB output for directly powering small devices.
Applications:
• Residential off-grid and hybrid solar power systems
• RVs, caravans, boats, and campers
• Outdoor solar lighting and remote energy setups
• Agricultural water pumps and irrigation systems
• Remote monitoring stations and off-grid telecom
Key Features:
• High Power Output – 60A / 2.9kW support
• Supports 12V / 24V / 48V batteries with auto detection
• Real-time system monitoring via LCD display

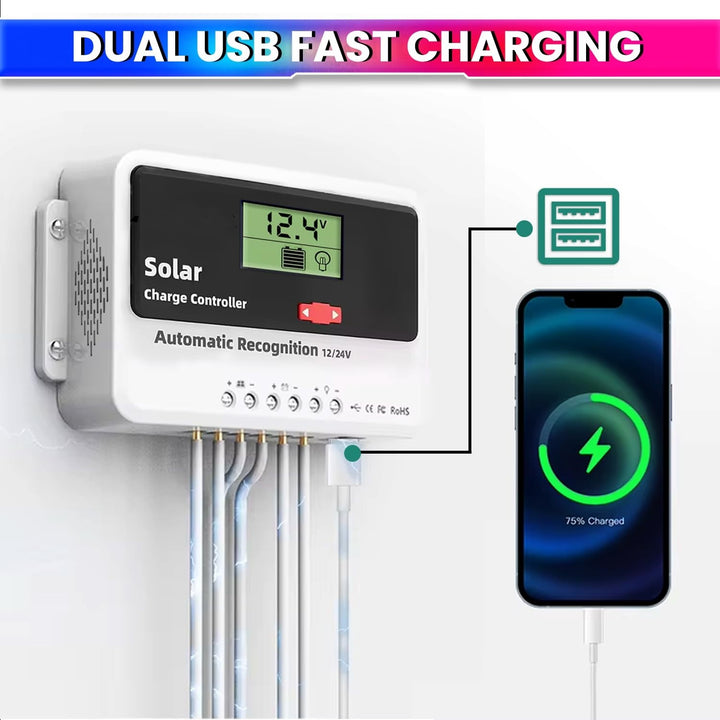

• USB port (5V/3A) for mobile device charging
• Battery type compatibility – Sealed, Gel, Flooded
• Battery equalization settings for extended life

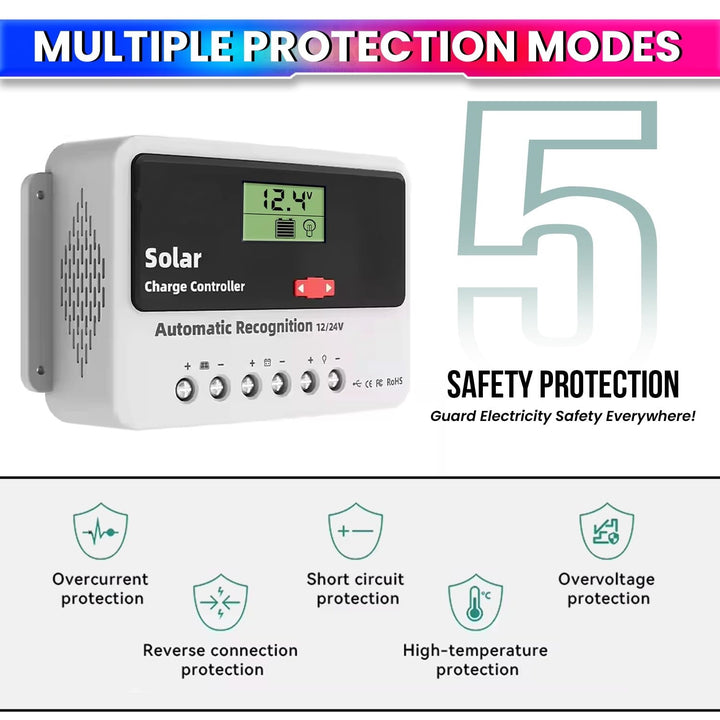

• Smart safety protections – overcharge, discharge, short circuit, reverse polarity
• Auto shutdown under 8V to prevent battery damage
• Wide operating temperature: -35°C to 60°C
Specifications:
| Specification | Details |
|---|---|
| System Voltage | DC 12V / 24V / 48V (Auto Detection) |
| Rated Charge / Discharge | 60A |
| Maximum Solar Input Power | 2.9kW |
| Battery Type Compatibility | Lead Acid (Sealed, Gel, Flooded) |
| USB Output | 5V / 3A |
| Float Charging Voltage | 13.7V / 27.4V / 54.8V |
| Over-Discharge Protection | 10.7V / 21.4V / 42.8V |
| Charge Recovery Voltage | 12.6V / 25.2V / 50.4V |
| Equalization Voltage Settings | B01: Sealed 14.4V / B02: Gel 14.2V / B03: Flood 14.6V |
| LCD Display | Yes – Real-time Monitoring |
| Auto Shutdown Voltage | <8V |
| Working Temperature | -35°C to +60°C |
| Cooling Requirement | Well-ventilated installation recommended |
| Dimensions (L x W x H) | Approx. 19 x 9 x 5 cm |
| Weight | Approx. 280g |
Installation Instructions:
Wiring Steps:
-
Loosen terminal screw counter-clockwise
-
Insert wire between terminal plate and top opening
-
Tighten screw clockwise to clamp securely
Connection Order:
-
Battery → 2. Load → 3. Solar Panel
Disconnection Order:
3 → 2 → 1
Important Notes:
• For Lead Acid batteries only (Sealed, AGM, GEL)
• Not compatible with Lithium, NiMH, or NiCd batteries
• Ensure battery voltage is above 9V for initial setup
• Avoid placing controller in direct sunlight or enclosed spaces—ventilation is key
Package Includes:
• 1 x 60A Solar Charge Controller (Auto 12V/24V/48V)
