Wanptek WPS3010H 30V/10A Variable Adjustable Switching Power Source DC Power Supply

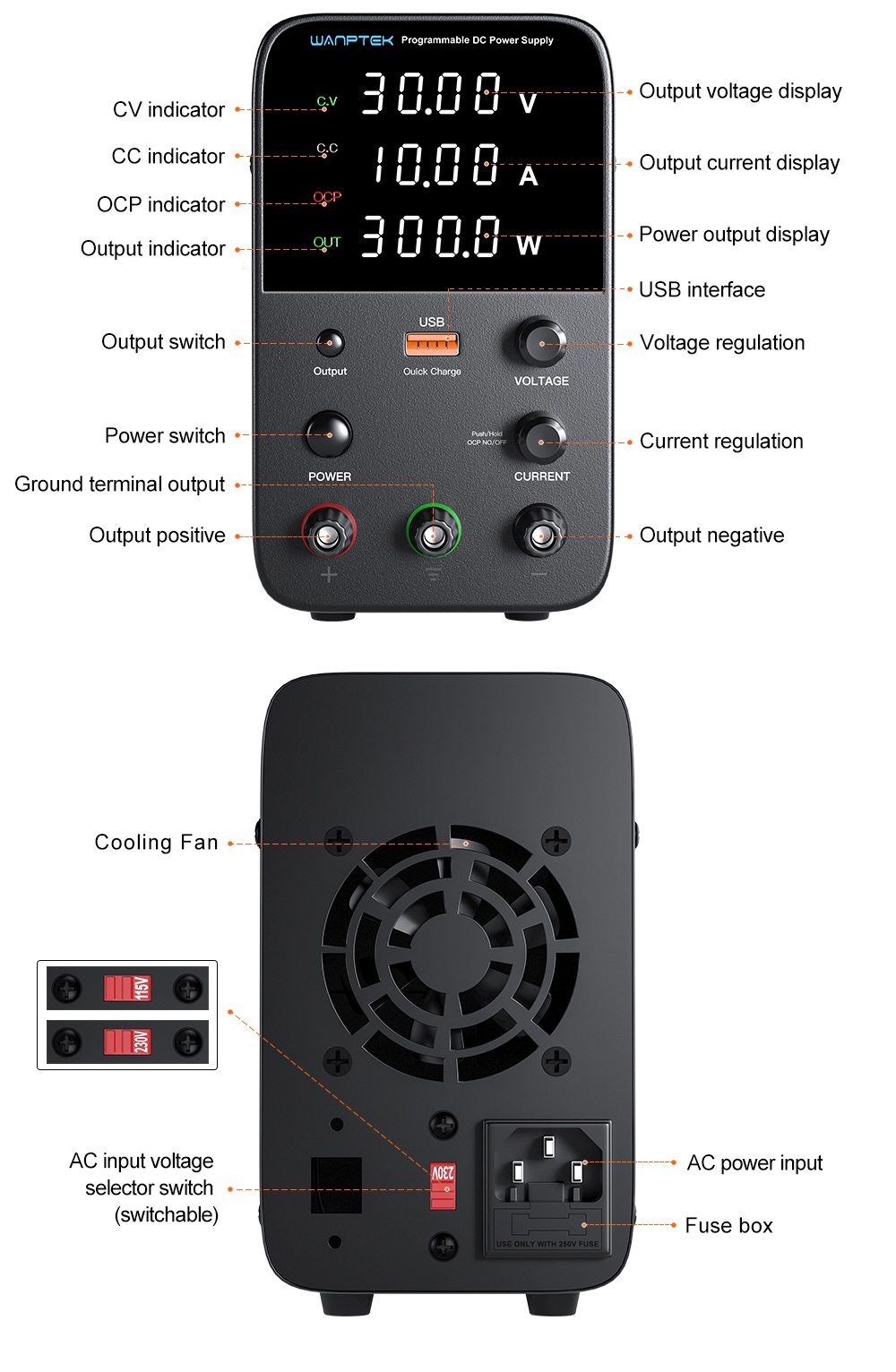

Wanptek’s new series products. This WPS3010H model is a miniature switching DC power supply with a USB fast charging. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides a high-precision two/three-window digital tube display of voltage, current, and power, so that users can intuitively see the current use status and various parameters of the machine.

Note: Voltage, ampere and watt values shown in product image are for illustrative purpose only. Please see the specifications of the product before buying.

Features:

1. Small size, lightweight, and high power density.
2. Constant Voltage and Current automatic switching function
3. The program-controlled encoder adjusts voltage and current.
4. Three groups of four-digit digital tube displays, respectively display voltage, current, power.
5. With OUTPUT button.
6. With OCP short circuit alarm protection.
7. With a USB fast charging interface, it supports multiple fast charging protocols.
8. LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.
9. Adjustable Output Voltage & Current: output voltage and output current can be continuously
10. Adjusted between 0 and nominal value with fine regulating and coarse regulating
11. It has over-voltage protection(OVP), over current protection(OCP), over-temperature protection
12. Temperature controlled fan cooling, low noise, long life.
13. Dual voltage input and convenient choice.
14. Output Voltage ranges from 0 to rating voltage with continuous adjustment .
15. Output current ranges from 0 to rating current with continuous adjustment

    Specification :



    Model No. / Name:	WPS3010H
    Output Voltage:	30
    Output Current (A):	10
    Input Voltage (V):	115 ~ 230
    Max Current (A)	10
    Length (mm):	19
    Width (mm):	9
    Weight (g):	1121
    Shipping Weight	1.2 kg
    Shipping Dimensions	26 × 15 × 25 cm

Package Includes:

1 x Wanptek WPS3010H Adjustable DC Power Supply

1 x AC Input Power Cable  with EU Plug (1 Meter)

1 x DC (Red-Black) Output Cable with Crocodile end Pins (0.5 Meter)

1 x Instructions Manual
