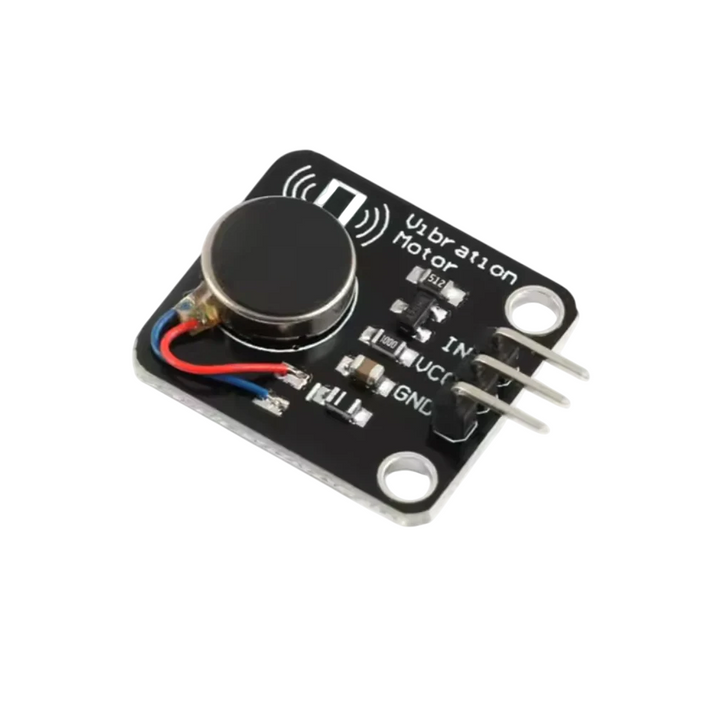

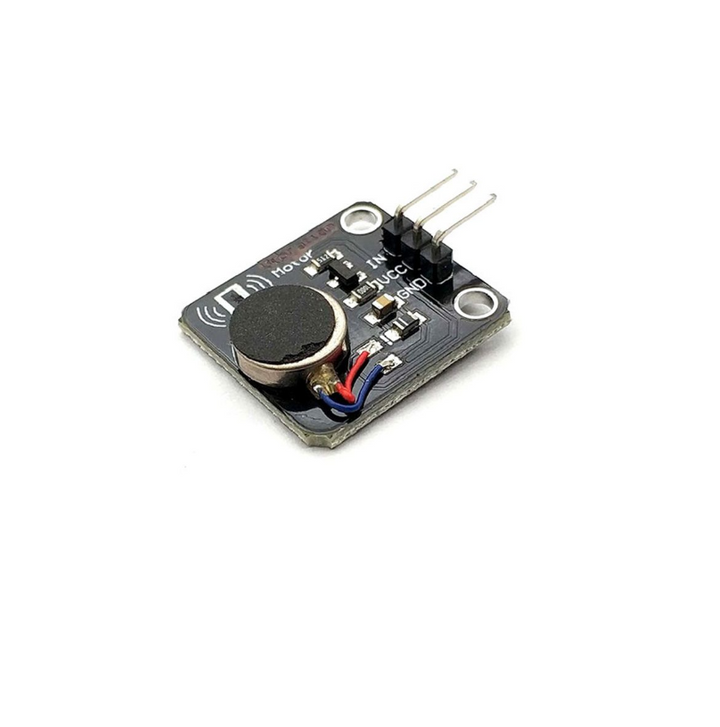

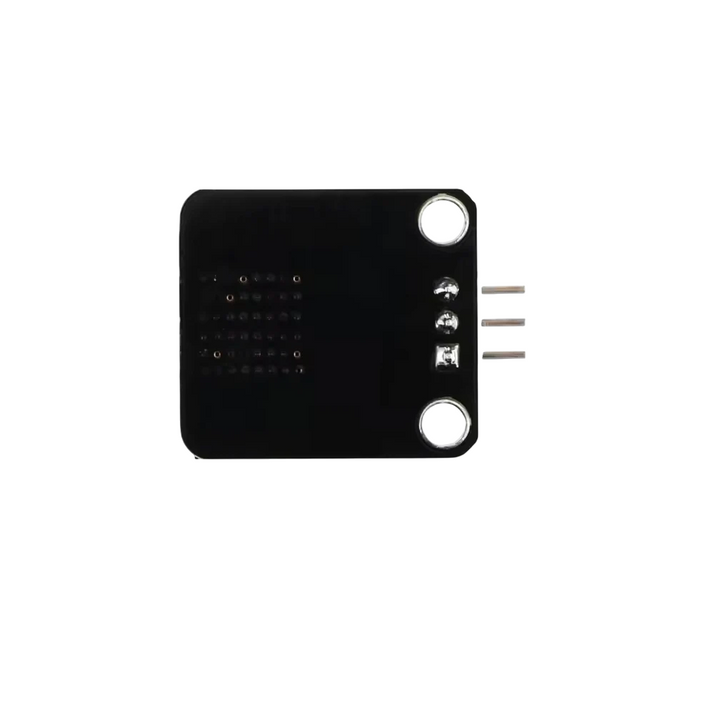

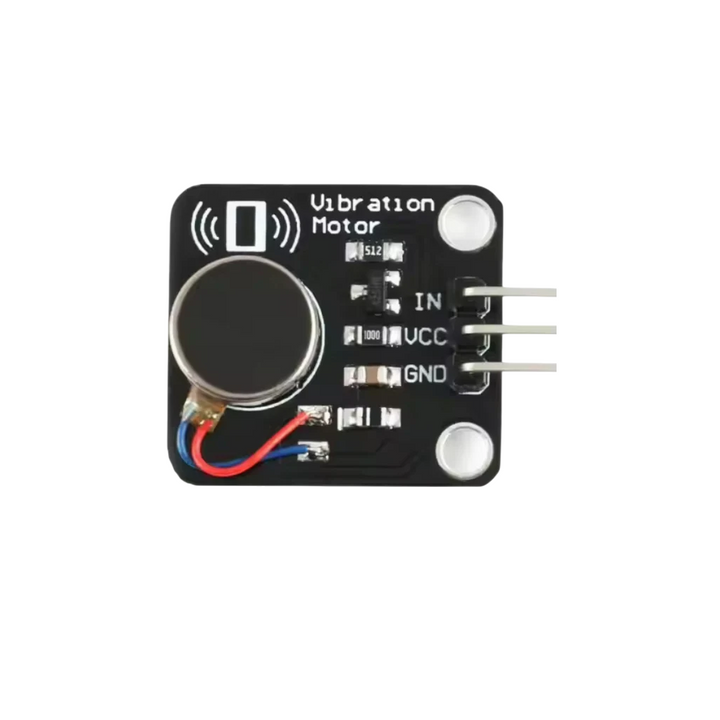

DC Vibration Motor Module – Black
Including GST (No Hidden Charges)
Checkout securely with
The DC Vibration Motor Module is a compact module designed to convert electrical signals into mechanical vibration, making it ideal as a non-audible indicator. When a high input signal is applied, the motor vibrates, similar to the vibration mode in smartphones. Its vibration intensity can be precisely controlled using PWM signals, making it highly suitable for wearable devices, vibration reminders, interactive products, and DIY electronics projects.
This module is compatible with Arduino boards like UNO R3 and Mega2560, allowing easy integration into a variety of smart devices and robotics projects.
Applications
-
Wearable smart devices
-
Vibration reminders
-
Vibration-sensitive interactive products
-
DIY electronics and robotics projects
-
Non-audible notification systems
Key Features
-
Rated voltage: 5V DC
-
High rated speed and compact flat motor design
-
Size: 21 × 23 mm
-
Fixed mounting hole: 3 mm, pitch: 15 mm
-
Drive: MOS tube high-level trigger, low-level cutoff
-
Compatible with Arduino UNO R3 and Mega2560
-
Lightweight and energy-efficient for portable applications
-
Easy PWM control for vibration intensity adjustment
Specifications
| Parameter | Details |
|---|---|
| Item Type | Vibration Type (General) |
| Operating Voltage | 3 – 5.3 V DC |
| Rated Voltage | 5 V DC |
| Rated Current | Up to 60 mA |
| Starting Current | Up to 90 mA |
| Starting Voltage | 3.7 V DC |
| Rated Speed | 9000 RPM |
| Motor Diameter | 10 mm |
| Dimensions (L × W × H) | 23.5 × 21 × 8 mm |
| Weight | 3 g |
Package Includes
-
1 × DC Vibration Motor Module – Black
